Elegoo Centauri Carbon 1 CANVAS Top Cover Riser - mairyjulien

🇬🇧 Description

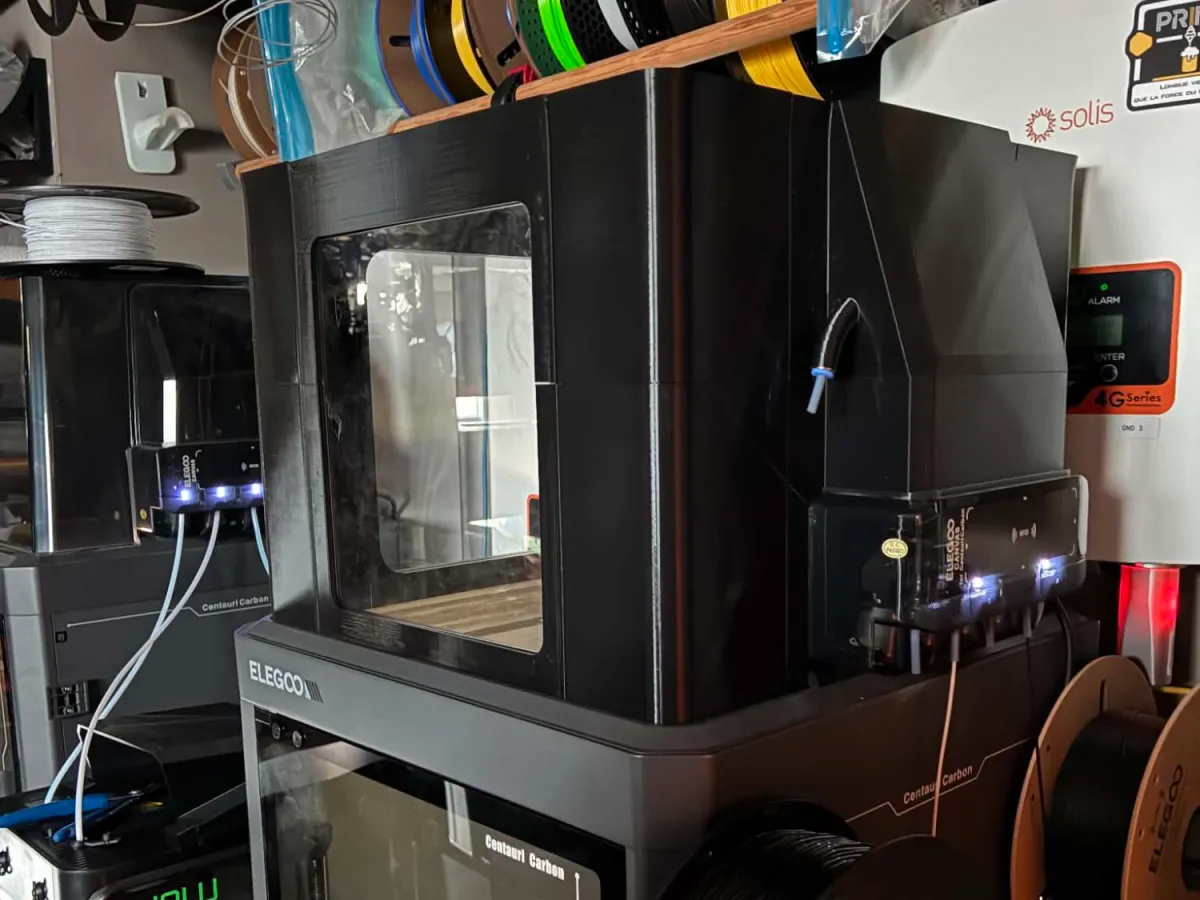

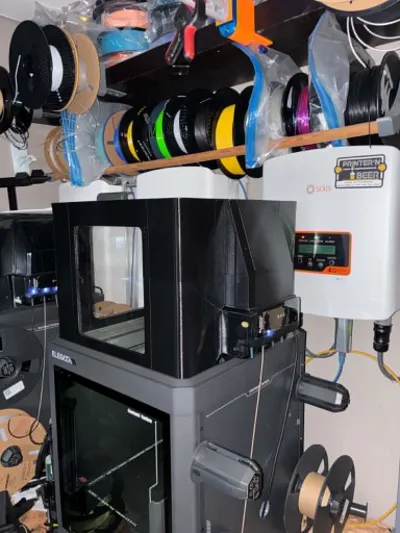

This model has been designed to allow the use of the CANVAS system on the Centauri Carbon 1, while keeping the printer fully enclosed using the original top glass.

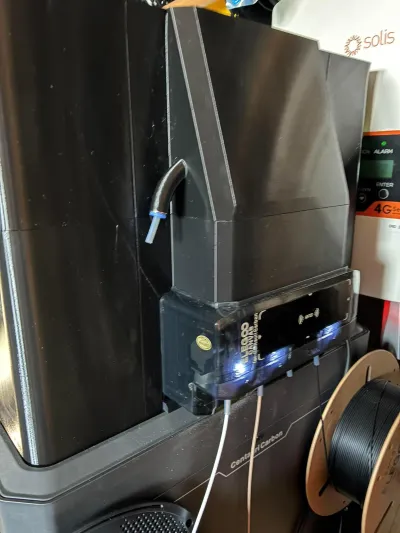

The riser lifts the lid to provide clearance for the PTFE tubes without any interference, while maintaining a clean and functional integration with the printer.

👉 No additional hardware is required for assembly.
An optional front slot is included to install a plexiglass panel. If you prefer not to use plexiglass, a printed part can be used instead.

🧩 Plexiglass (recommended)

This model is designed to use a 3 mm thick acrylic (plexiglass) sheet, in A4 format.

👉 Only one cut is required:
210 x 205 mm (height x width)

To make things easier, here are links to the type of sheet used:

🇧🇪 Belgium 👉 https://amzn.to/4vY963k
🇫🇷 France 👉 https://amzn.to/4w2E4Yu
🇩🇪 Germany 👉 https://amzn.to/3QSd1Pf
🇺🇸 USA 👉 https://www.amazon.com/dp/B0FBW87GB8?ref_=chk_typ_imgToDp&th=1
🇬🇧 UK 👉 https://www.amazon.co.uk/Pack-Clear-Acrylic-Sheets-Transparent/dp/B0CRPFR462/

🧩 Design & Printing

The design has been optimized to be:

Easy to print
Strong and durable (important given the height of ~27.4 cm)
Optimized to require minimal supports

The files are also designed to be:
👉 Easy to print, even on standard machines

This strength comes with higher material usage (over 2 kg of filament).

👉 Recommended material: PETG
(better heat resistance than standard PLA in an enclosed environment)

🔧 Assembly

The model consists of:

16 parts to assemble
+ 1 optional part if you do not wish to use plexiglass

Recommended method:
👉 Assemble the bottom parts directly on the printer
👉 Then add the upper parts on top

Alternative:
You can assemble everything off the printer by adding:
👉 a small amount of super glue in the assembly grooves

This helps hold everything in place and reinforces the overall structure

💡 Notes

No screws or additional hardware required
Designed to be practical, accessible, and reliable
Allows you to keep your printer enclosed even with the CANVAS system installed

👉 Edit: For those who already own a ventilated riser, there’s no need to discard it. You can simply place it on top of this model to keep that feature.

🎨 CANVAS System

If you are interested in the CANVAS system, you can find it here:

🇪🇺 Europe – €45 👉 https://tidd.ly/4eIlRJc
🇫🇷 France 👉 https://tidd.ly/4tzBMy6
🇬🇧 UK – £38 👉 https://tidd.ly/4vUh0e7
🇺🇸 USA – $55 👉 https://tidd.ly/4vTkSfq
