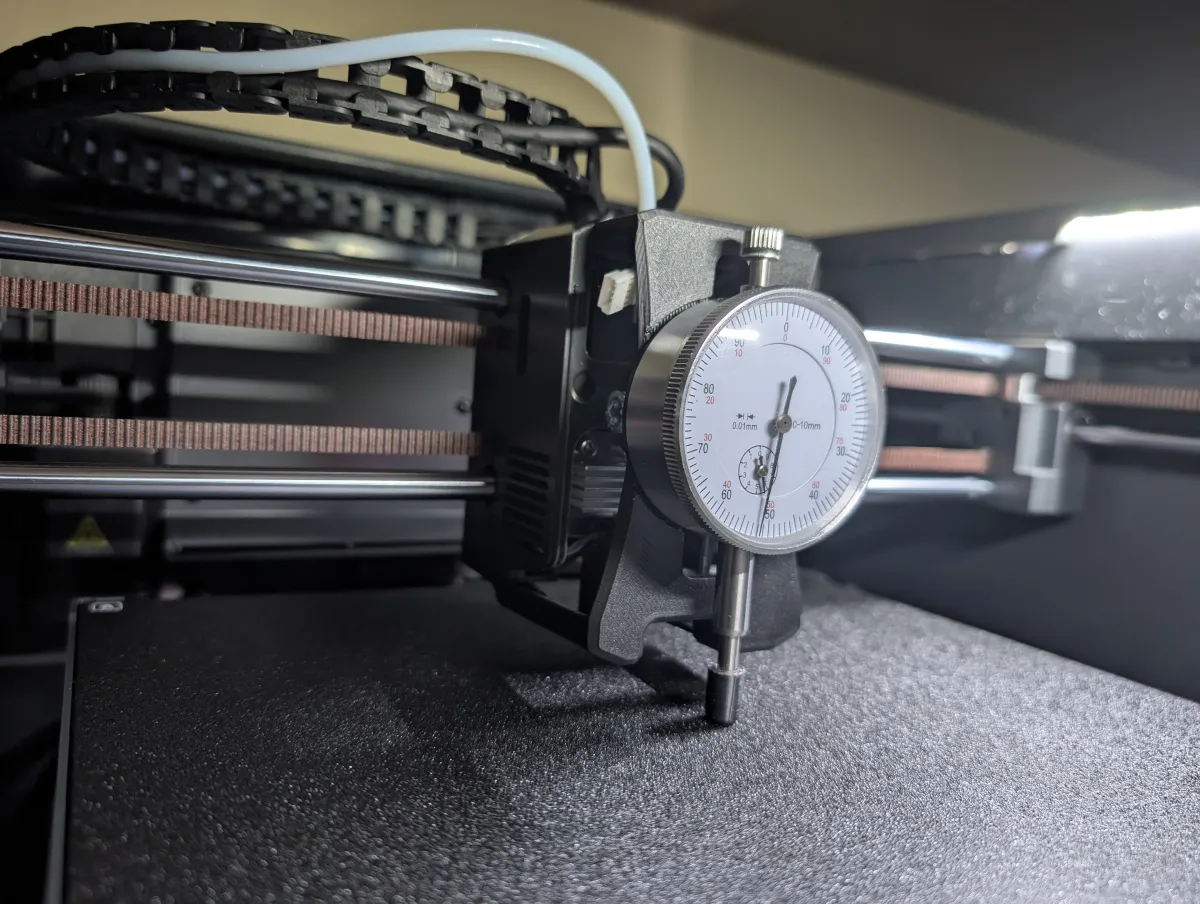

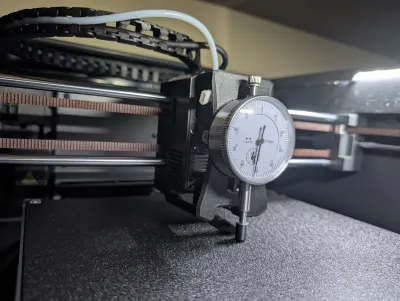

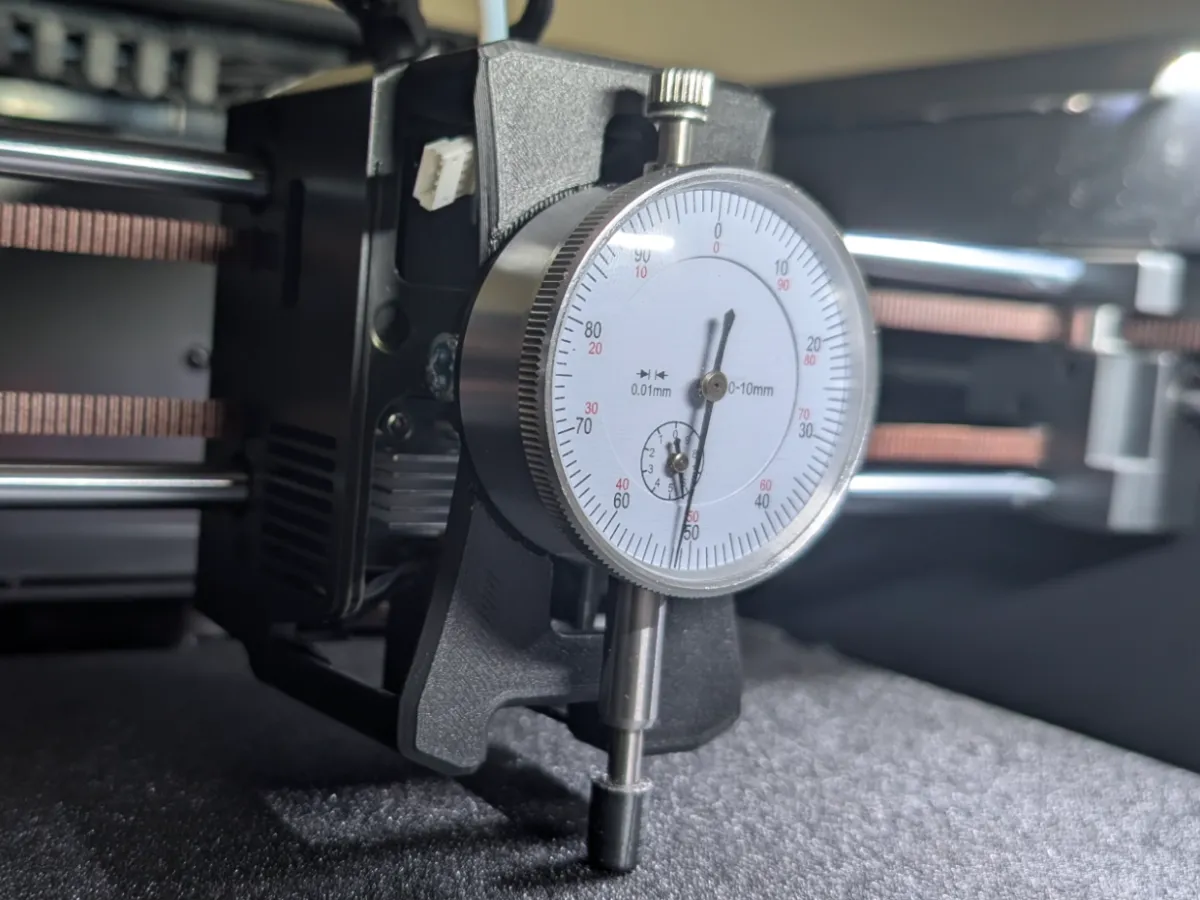

I adapted the beautiful FMV support to my dial indicator with pointer that I bought on Amazon some time ago.



I discovered that my plate had one angle at -0.8 mm and another at -1.3 mm compared to the highest one. Now everything is level, apart from about 0.1 mm of curvature in the center.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    centesimal comparator
    1
    https://amzn.eu/d/38xYSbc

Originality of the Model

The author declares that this work is their personally remixed model

Original creator:
FMV
Adaptation source:https://www.nexprint.com/models/G6848641

This model is licensed under the following terms:

Credit must be given to the creator

Models(2)

  • model file image
    Supporto Comparatore.3mfDesigner

    141.99 KB

    2025-12-06

  • model file image
    Punta comparatore.3mfDesigner

    41.88 KB

    2025-12-06
