Mechanical Gear–Driven, Synchronized Storage Box
Print Profile(2)
250mm Print Bed Configuration
2-disc
PLA
Designer- 180mm Print Bed Configuration
4-disc
PLA
Designer
3
1
Released 2025-12-07

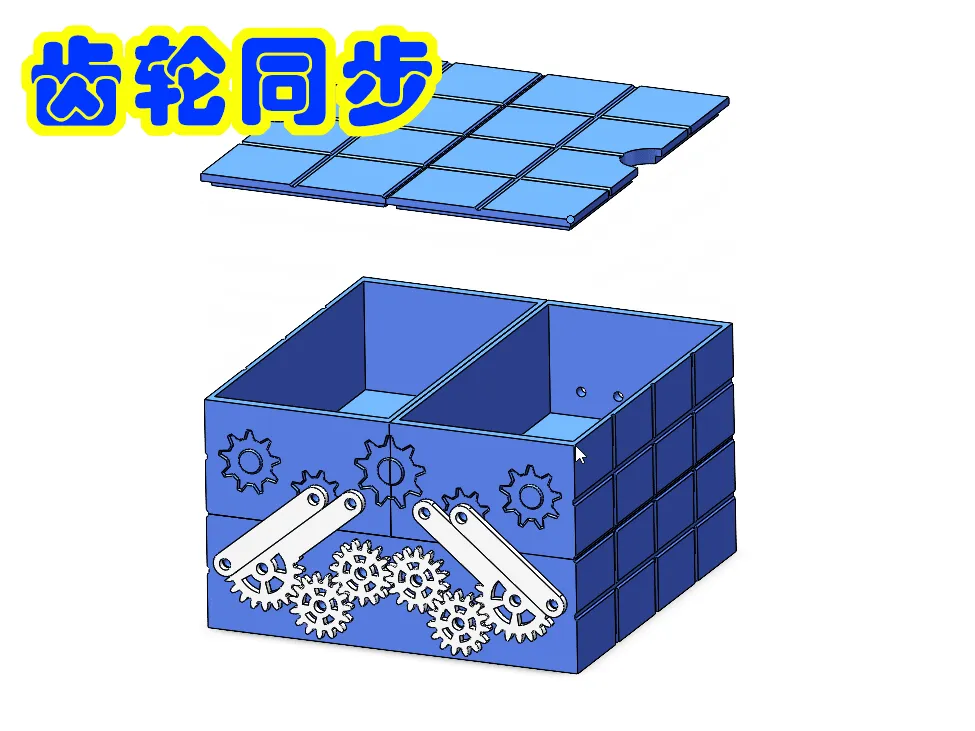

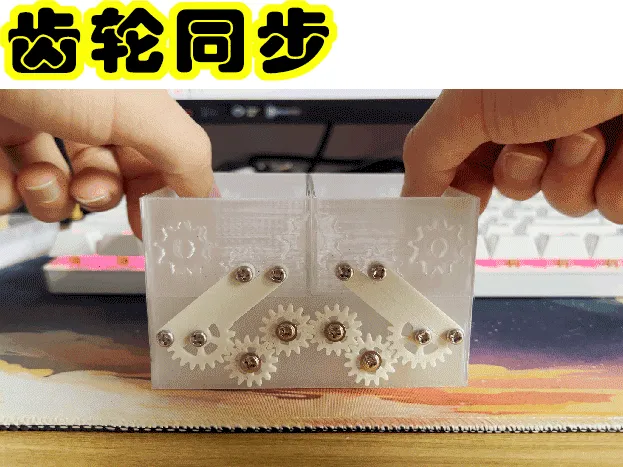

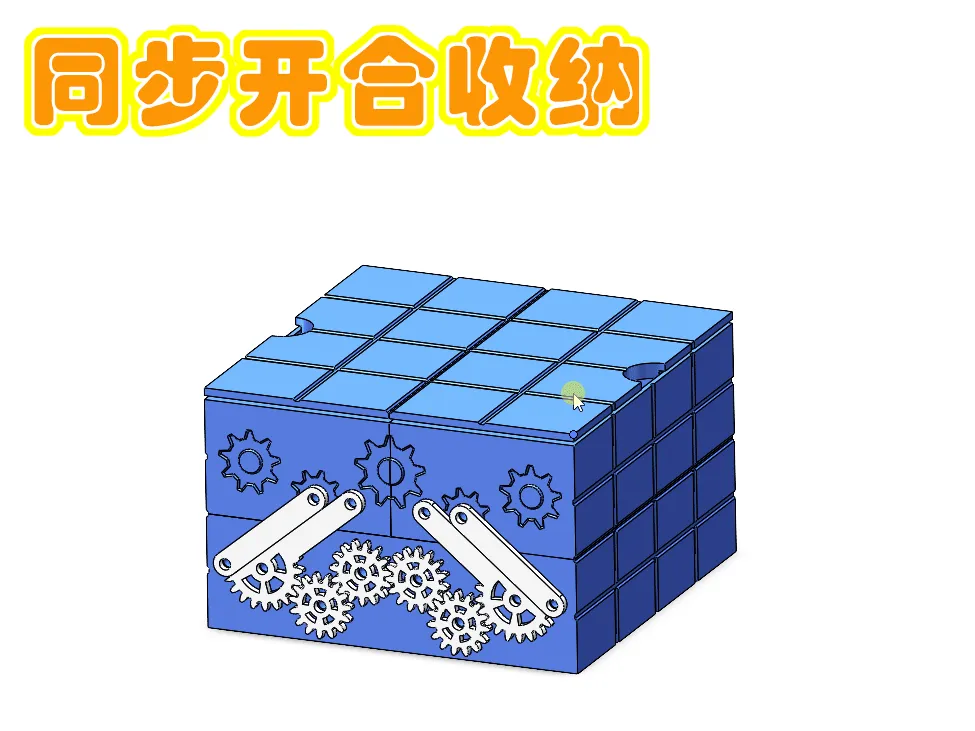

The gear mechanism is designed so that opening one side of the box automatically triggers the simultaneous opening of the opposite side; the gears are secured using M3×5 screws.
Notes:
1. Components: This storage box requires 24 M3×5 screws—simply purchase them from Taobao or Pinduoduo.
2. Assembly: When installing the gears with screws, give the gears a gentle turn by hand to ensure smooth rotation. Be careful not to overtighten the screws—over-tightening can cause the gears to seize up and prevent proper operation.
Bill of materials
- NameQuantityNotes
- 1M3*5螺丝24
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Models(2)
- 活动盒子180打印平台.3mfDesigner
2.17 MB
2025-12-06
- 活动盒子250打印平台.3mfDesigner
2.12 MB
2025-12-06
