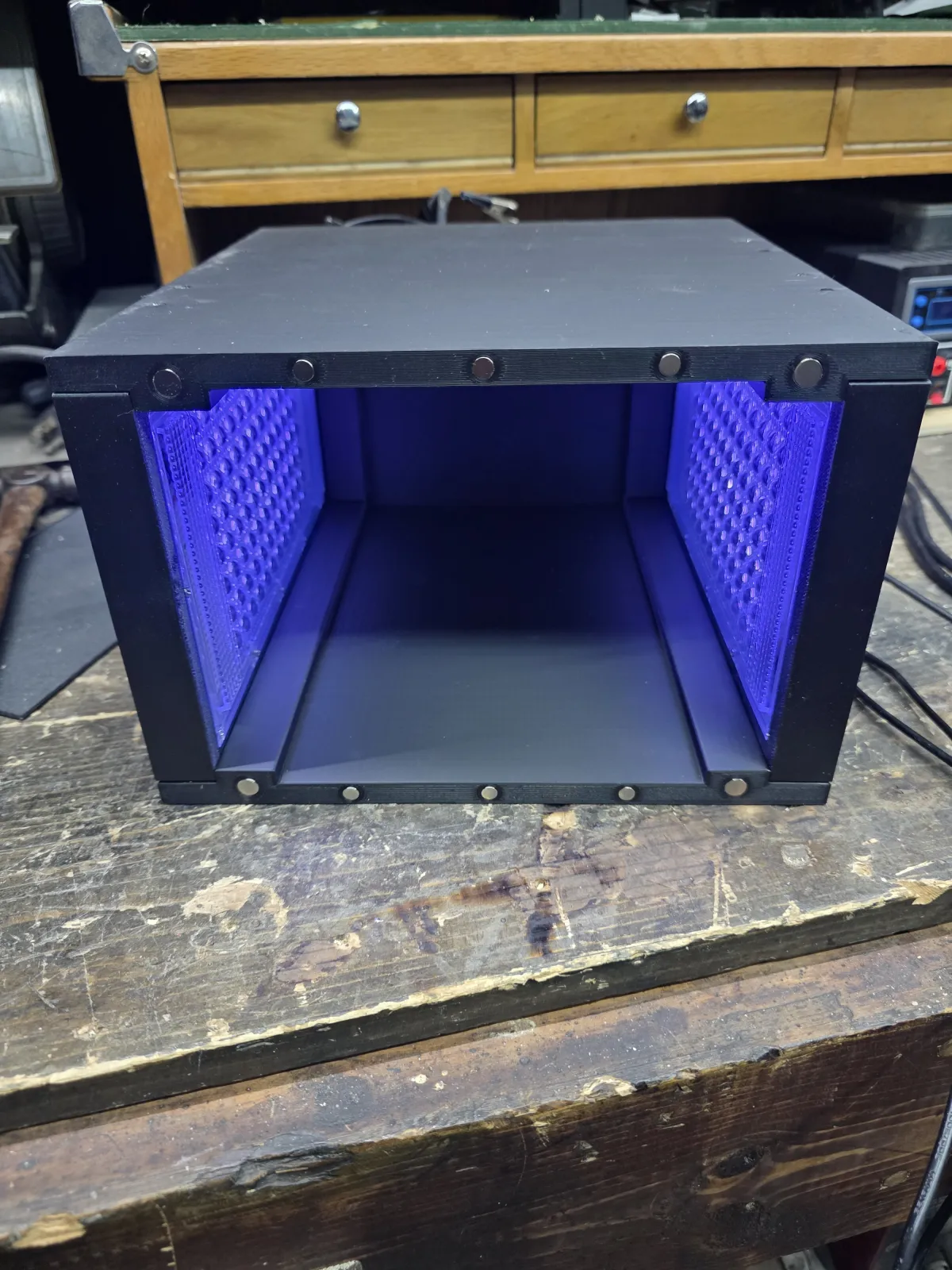

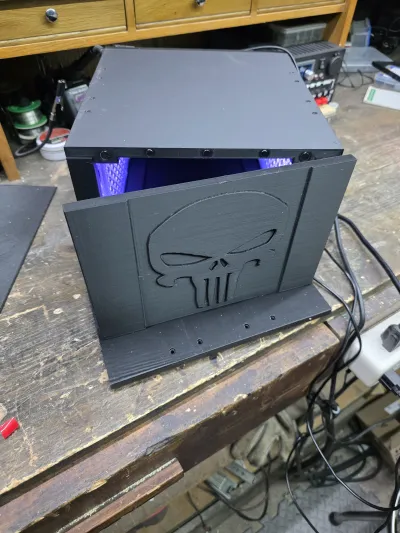

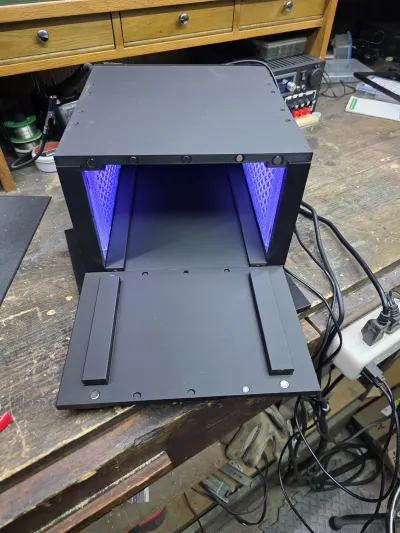

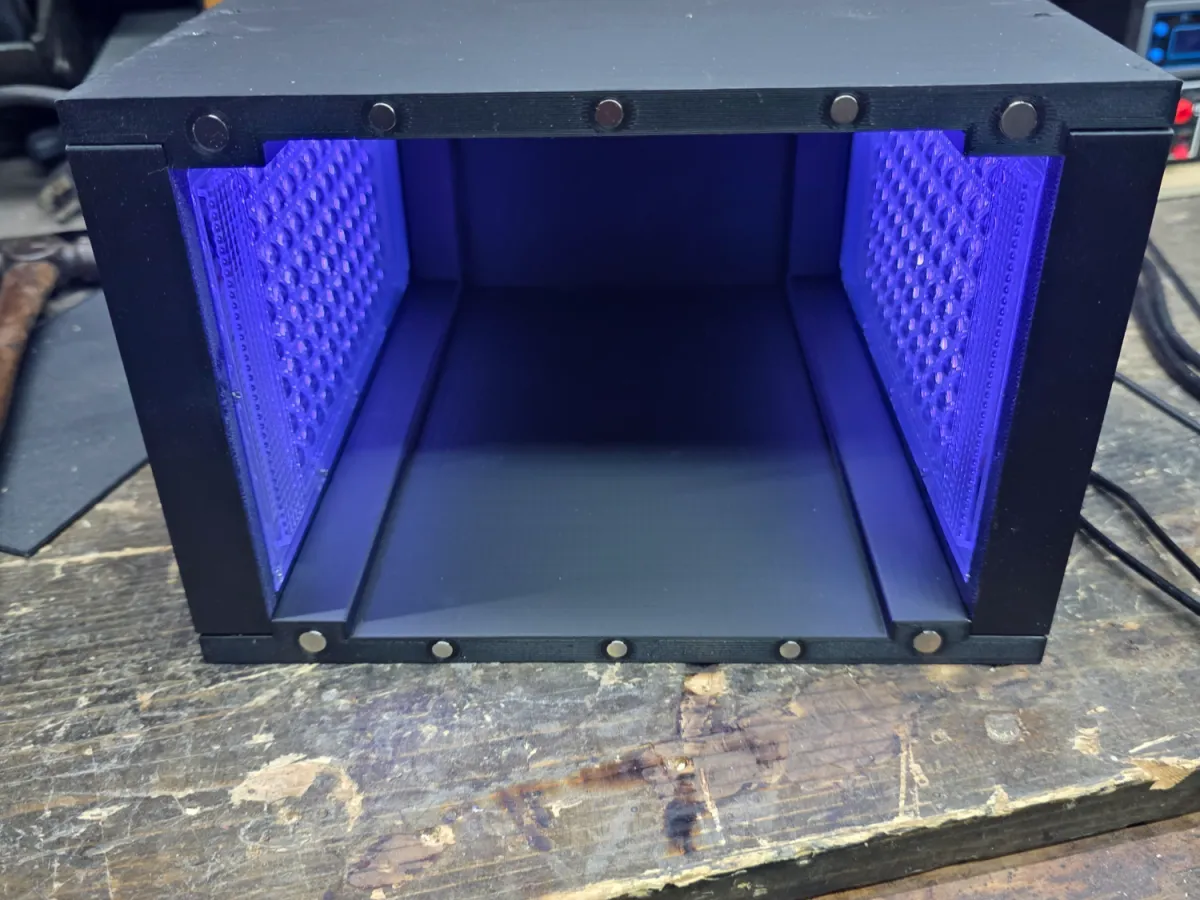

My First Ground up Build UV Chamber

What you will need is 8 8x3mm magnets, 12 6x2mm magnets and 16 25mm screws with washers and nuts and 16 1/8 washers and two Uv Lights I'll link where I got everything you need below

6x2mm magnets
https://www.amazon.com/dp/B0CCXHY9P8?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

3mm screws
https://www.amazon.com/dp/B0FQ3XXN8F?ref=ppx_yo2ov_dt_b_fed_asin_title

8x3mm magnets
https://www.amazon.com/RHINOCATS-Refrigerator-Magnets%EF%BC%8CFridge-Magnets%EF%BC%8CRound-Multi-Use/dp/B09BJWH2BQ?crid=HL9CPUGK1KJ4&dib=eyJ2IjoiMSJ9.uboJh8RJvsx_2belVaBD_B9kFr_qn-3W_N-ydFQ2qRiW7lsALiiyl3Bv8TewosfaqnSIm_yEr_aPLN6koZ0ChJeTqpUQC7llgieCg-2zUkl58J88JtFpkZtNExnID8yK25WF4tYOe5s-1RpYPzMcZvZ9Rz_4-_uZhHexh13LvbzG76Xe_eQ1SpLPv8qIsSWyoybB2YvyodWO2ZHDKvMv-YAMjz1vOJmKuRsOBazQ6TY.1zC6vJEnQoeSk97uSBvk_TmSu93k-OhwrzecL406KIo&dib_tag=se&keywords=8x3mm%2Bmagnets&qid=1772668562&sprefix=8x3mm%2Bmagnets%2Caps%2C275&sr=8-12&th=1

UV Light
https://www.temu.com/96-leds-curing-lamp-lamp-for-resin-curing-suitable-for-resin-molds-jewelry-making-diy-craft-supplies-nail-art-curing-low-voltage-5v-with-usb-plug-and-1-5-cord-and-switch-halloween-decorations-halloween-resin-jewelry-gift-making-resin-g-601101998776958.html?_oak_mp_inf=EP7E8biv1ogBGhZmbGFzaF9zYWxlX2xpc3RfYXpwbGttIKz5zIbMMw%3D%3D&top_gallery_url=https%3A%2F%2Fimg.kwcdn.com%2Fproduct%2Ffancy%2Fac978265-3a27-4acf-9dbb-6d85b10317b9.jpg&spec_gallery_id=204395383823&refer_page_sn=10132&freesia_scene=116&_oak_freesia_scene=116&_oak_rec_ext_1=MTI3Nw&refer_page_el_sn=201401&_x_channel_src=1&_x_channel_scene=spike&_x_sessn_id=ifee5ik95p&refer_page_name=lightning-deals&refer_page_id=10132_1772761595885_qdgo5fnieh&no_cache_id=7vhsi


I don't have links for the 1/8 washers because I had them already but I'm sure you have a hardware store in your area

Make sure you have the magnets facing the right way before using any glue it's a really tight fit and hopefully dental tools will get those magnets out.

Everything was printed in PLA 15 infill 2 loops expect the top and bottom which I printed 25 infill 2 loops which hold up the hammering in the magnets

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Models(4)

  • model file image
    UV back panel.stlDesigner

    98.13 KB

    2026-03-06

  • model file image
    UV Front Panel.stlDesigner

    229.48 KB

    2026-03-06

  • model file image
    UV light cutout.stlDesigner

    15.80 KB

    2026-03-06

  • model file image
    UV Top & Bottom.stlDesigner

    250.67 KB

    2026-03-06
