Power Switch Box for led strip
Print Profile(0)

  • Earn points by adding print configurations

0

0

12

0

Released 2025-10-10
Details
Files(2)
Makes & Comments (0)

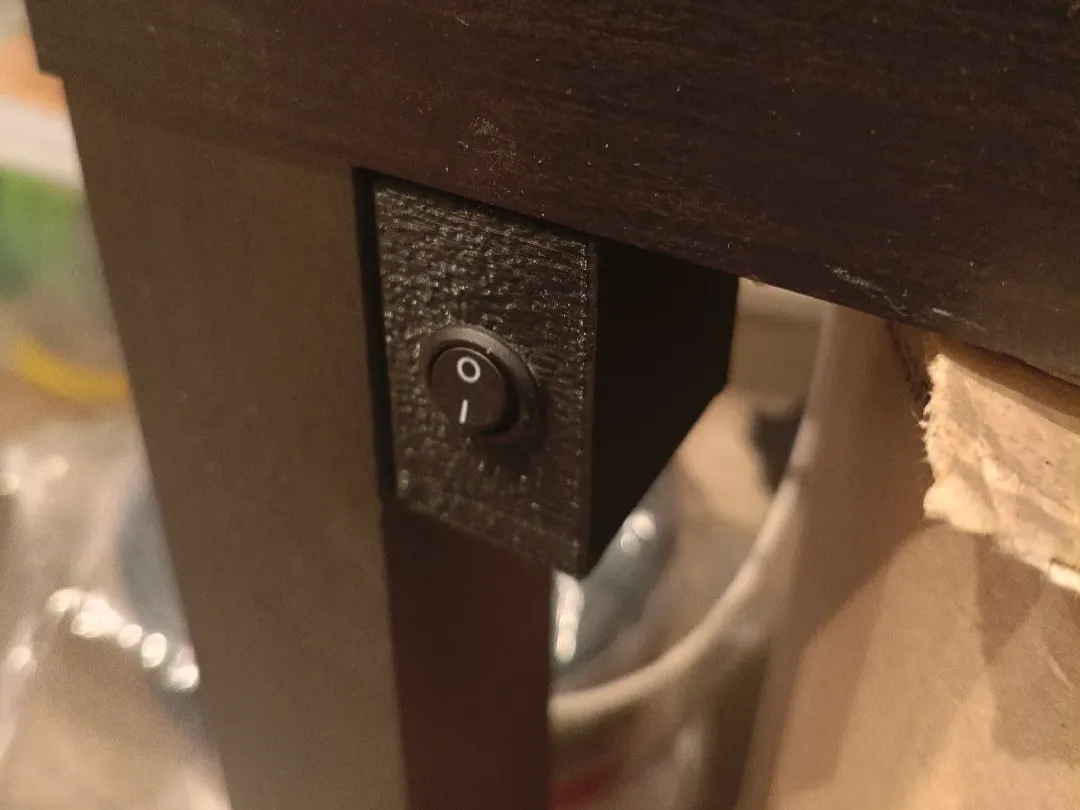

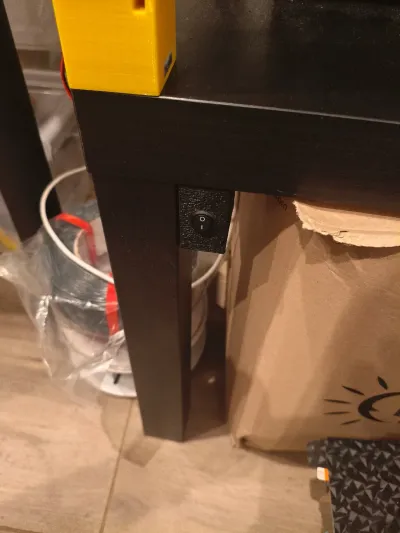

A simple box to accommodate power switch, power input and output for led strips

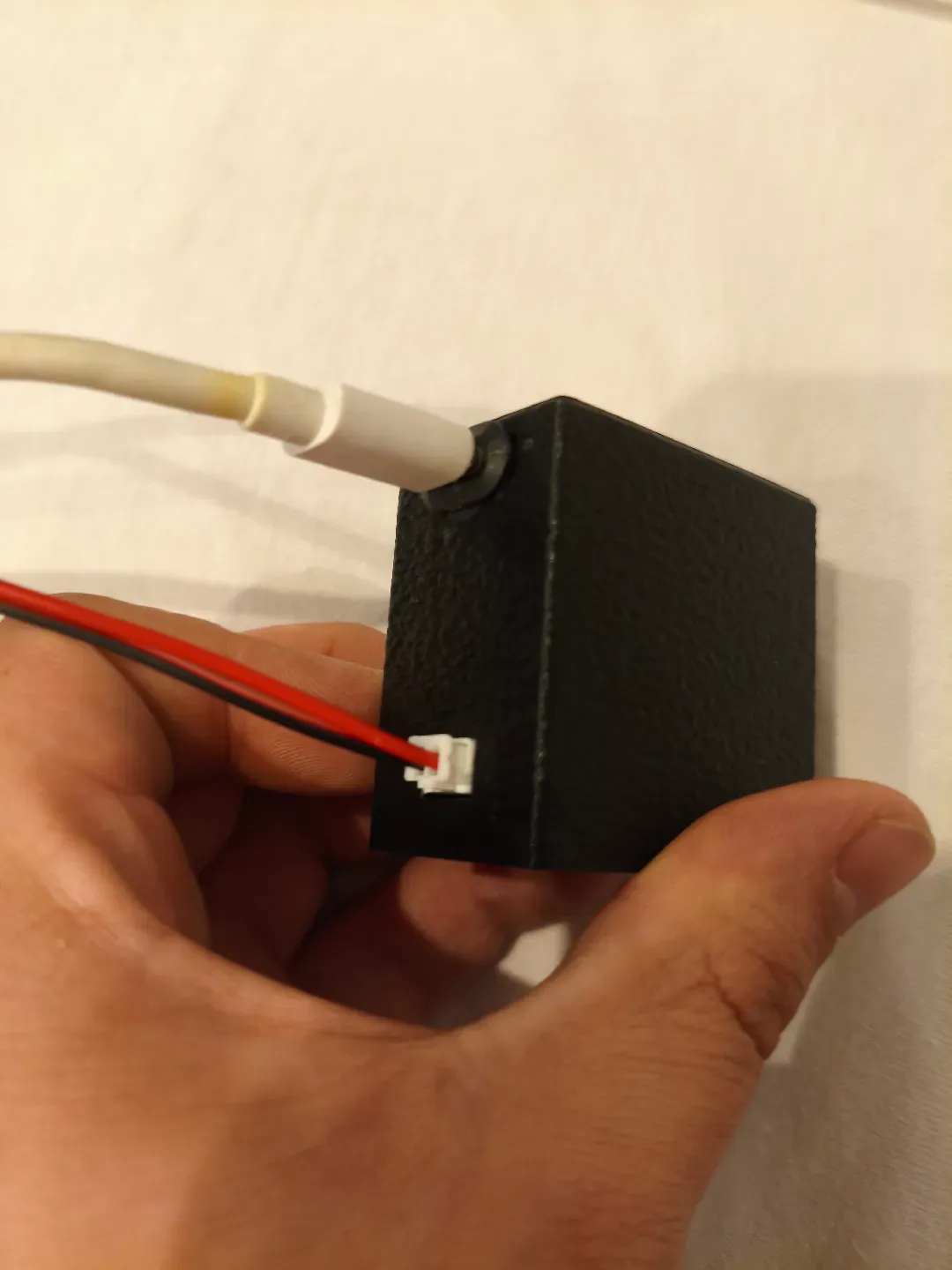

The box has holes for power switch, power input (in my case usb c port) and power output (2pin JST socket)



I've used a JST socket holder from @gz2zg: https://www.printables.com/model/373949-simple-jst-socket-holders



Power Switch: https://pl.aliexpress.com/item/4000169106856.html?spm=a2g0o.order_list.order_list_main.69.44d01c24ttsqP5&gatewayAdapt=glo2pol



USB C port: https://pl.aliexpress.com/item/1005006044405766.html?spm=a2g0o.order_list.order_list_main.64.44d01c24ttsqP5&gatewayAdapt=glo2pol



Hardware parts need to be glued



I also used m3 heat set inserts

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    Power Switch
    1
    https://pl.aliexpress.com/item/4000169106856.html?spm=a2g0o.order_list.order_list_main.69.44d01c24ttsqP5&gatewayAdapt=glo2pol
  • 2
    USB C Port
    1
    https://pl.aliexpress.com/item/1005006044405766.html?spm=a2g0o.order_list.order_list_main.64.44d01c24ttsqP5&gatewayAdapt=glo2pol
  • 3
    2 pin JST socket
    1

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license

Models(2)

  • model file image
    powerswitchbox.stlDesigner

    3.58 MB

    2025-10-07

  • model file image
    powerswitchbox_lid.stlDesigner

    829.96 KB

    2025-10-07
