Summary

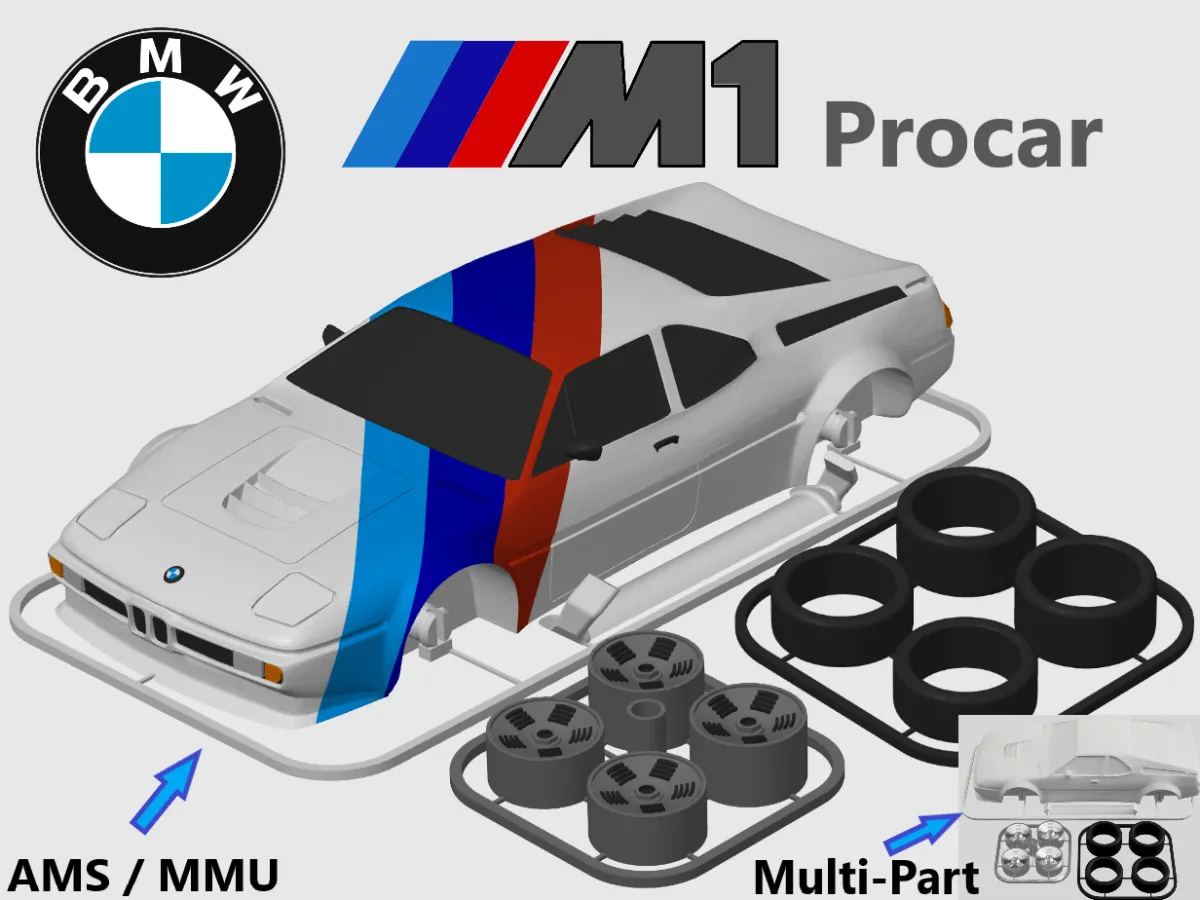

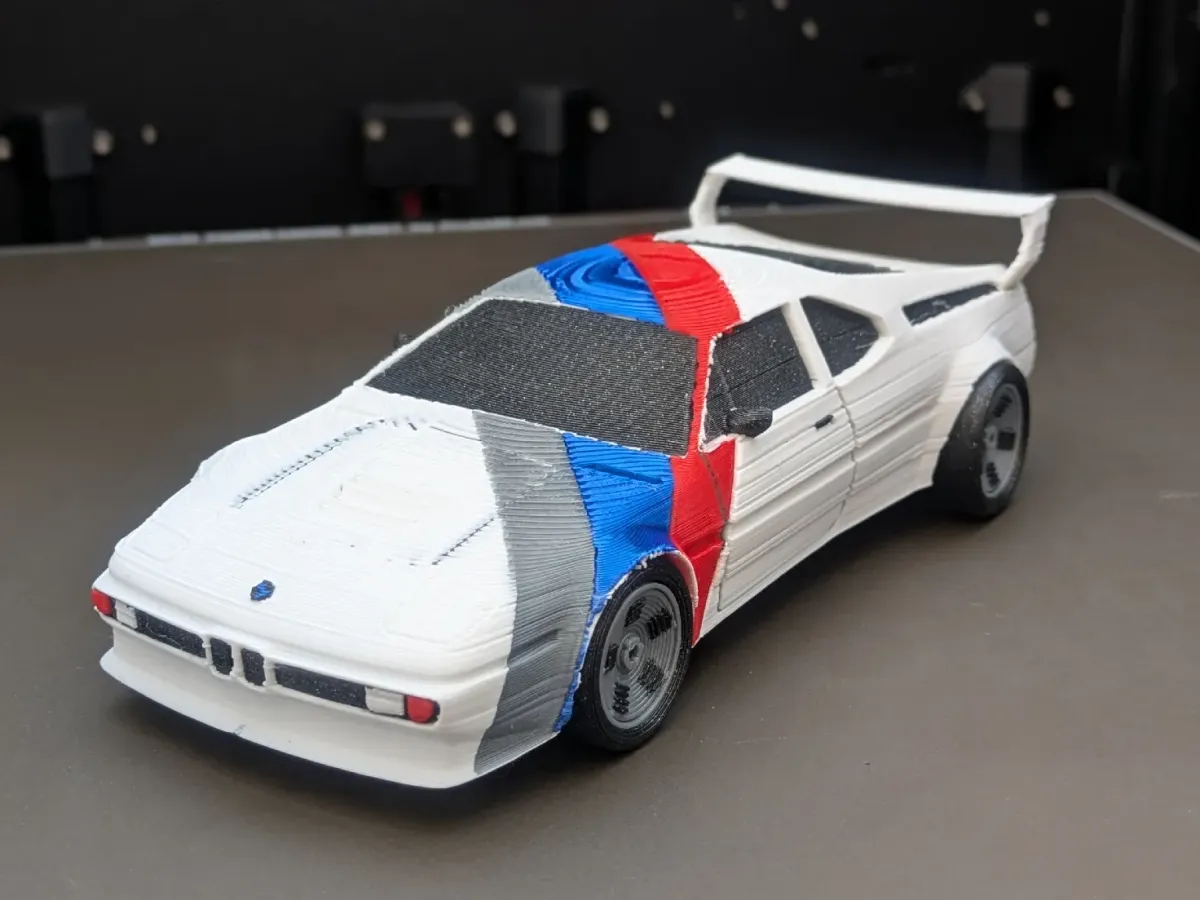

This is a model of a BMW M1 Procar in a kit card style. Some characteristic details can be discovered. Equipped with seperate exhaust and biiig spoiler ;-)
After printing, the model can be assembled with the help of integrated connectors.
The wheels can be turned, but the car will not roll.

Versions
The complete set is available in a 3MF file for a one-color print.
There are 3MF-files with predefined colors intended for users of AMS or MMU.
The chassis, tires and rims&exhaust must be printed separately.

Print
Print with 0.15 layer hight or lower to bring up the details.
No supports are needed.
Use 3 perimeters and 10% infill.

Post processing
The small struts can be removed really quickly and cleanly using a side cutter.
Please remove the predesigned supports carefully under the axles.

Assembly
The kit is easy to assemble. All parts fit together very well.
Use some grease for the hole in the rim so that the wheel turns more easily.
If a part should be loose, superglue can be used.

Dimensions at 100% scale (1:24)
The fully assembled model has the following dimensions
Height: 48.7mm
Depth: 185mm
Width: 82mm

The complete kit card has the following dimensions when printed
Height: 38.2mm
Depth: 179mm
Width: 92.4mm
Scaling will work in a low range due to the tolerances.

Other models
I will also try to publish other car models. Stay tuned!

I hope you had as much fun printing and assembling it as I did :-)

Get more information about this amazing car here.

Do you like my work? I would be very happy if you would support my work on Ko-fi.

Differences of the remix compared to the original

• scaled up
• model disassembled into individual parts and arrangeddesigned exhaust
• redesigned spoiler
• connectors added
• connected in kit card style and framed
• painted for AMS / MMU
