Key features

• 20% less material consumption (52g → 42g)
• faster print
• much faster slicing
• lightwight & sturdy design
• larger holes for better audio transmission

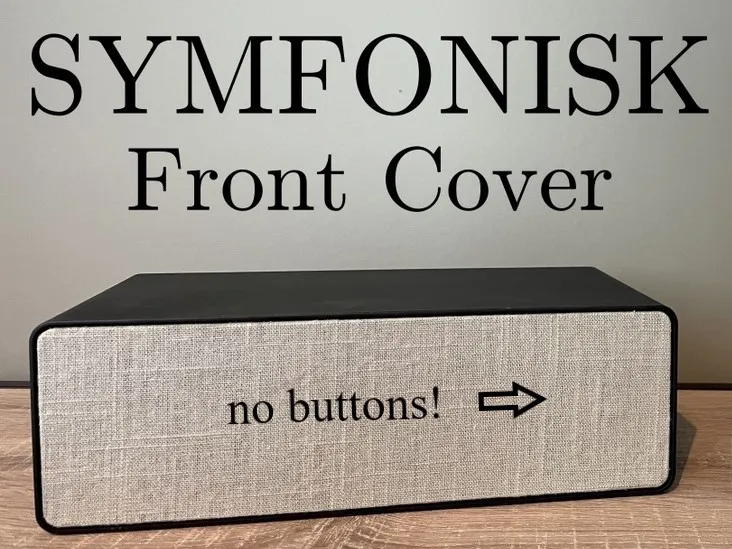

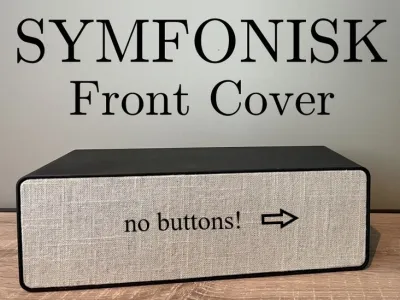

• 2 variants avaiable (with buttons / no buttons)
• whole part (for large printers) and separated variants available (for small printers)

Print

you will need a large printer to print this in one piece (303mm long!), otherwise, the split models can be printed and easily connected to each other (slide in and glue together).
0.2mm layer height
15% infill
3 walls / perimeters

Assembly (notes from here)

I have used linen fabric with a light structure. I guess a heavier fabric could also be used without deteriorating the sound too much, but I have not done the research. You will need about 130 x 340 mm of fabric for one cover. The fabric is glued to the front using spray-on glue and secured on the inside of the frame with superglue. You can also choose to hide the control panel to give your speaker a clean look. (Written by vespiz)

Do you like my work? I would be very happy if you would support my work on Ko-fi.

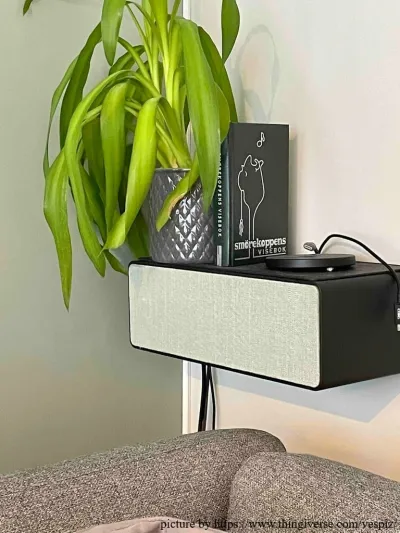

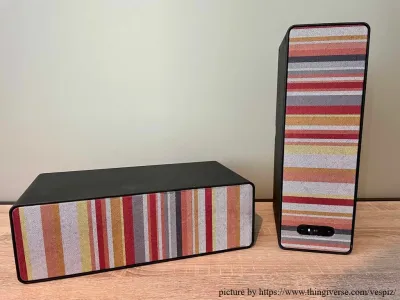

Pictures used from vespiz (URL added)

Differences of the remix compared to the original

• adjusted wall thickness to reduce printing time and material consumption
• provided closed version (no buttons)
• changed hole pattern (size & distance) to reduce printing time and material consumption
• enhanced type of printable connection for interlocking
