Telecom cable trunk guide
Print Profile(1)
  • Elegoo CC - no support

    1-disc

    PLA

    Designer

0

1

16

2

Released 2025-09-03
Details
Files(2)
Makes & Comments (0)

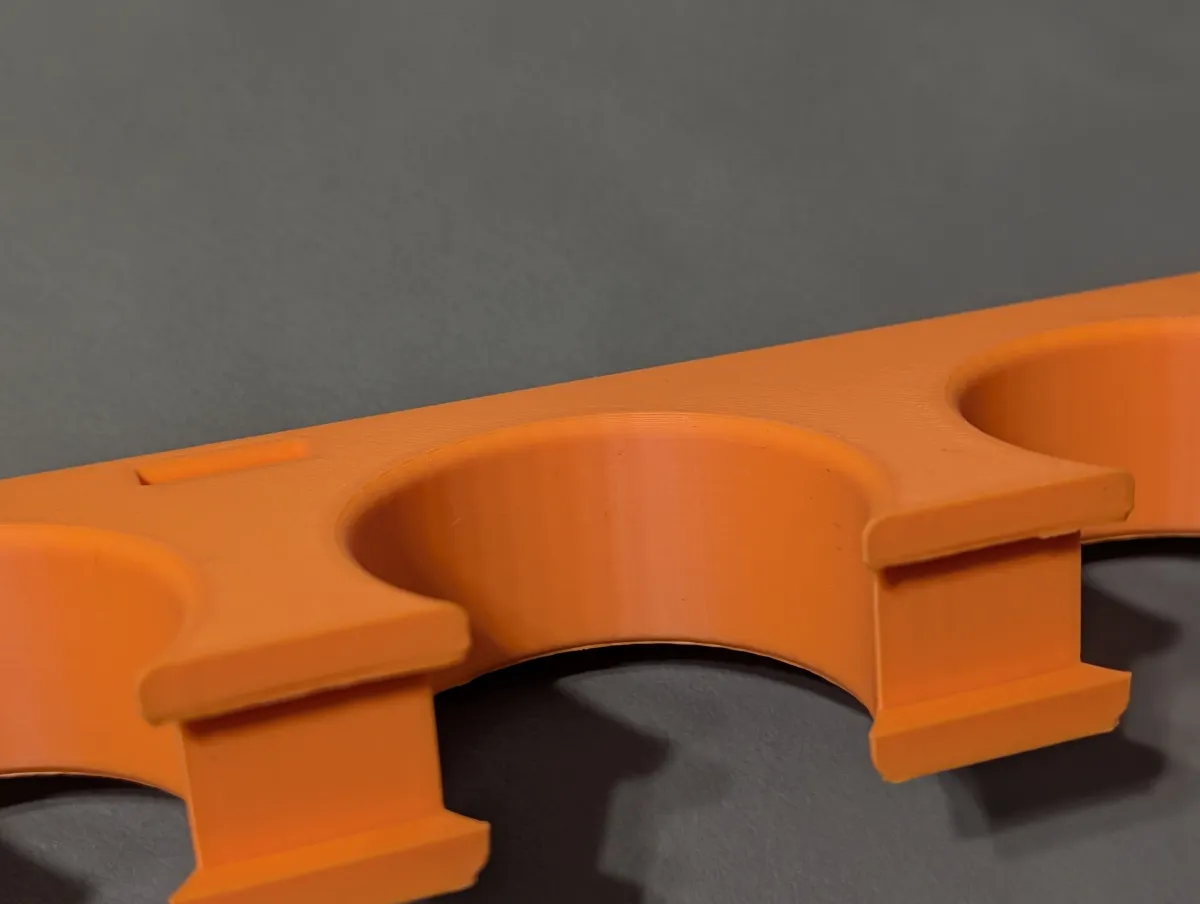

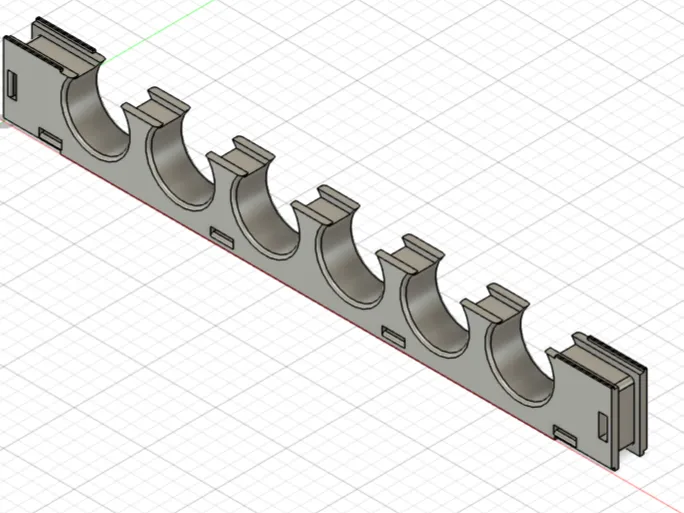

My team was struggling with smoothly pulling fiber optic cable trunks around 90° bends in the cable tray. They would rub on sharp corners and they would get out of order making dressing them later much harder. This guide has slots to strap it to the tray with ½ inch velcro and has a channel to run a velcro around the whole thing to keep them from coming out the top. This also has tabs to line them up for stacking if you are pulling more than 6 at a time.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.

Models(2)

  • model file image
    Trunk guide v3.stlDesigner

    391.00 KB

    2025-09-01

  • model file image
    Telecom cable trunk guide.3mf

    162.16 KB

    2025-09-03
