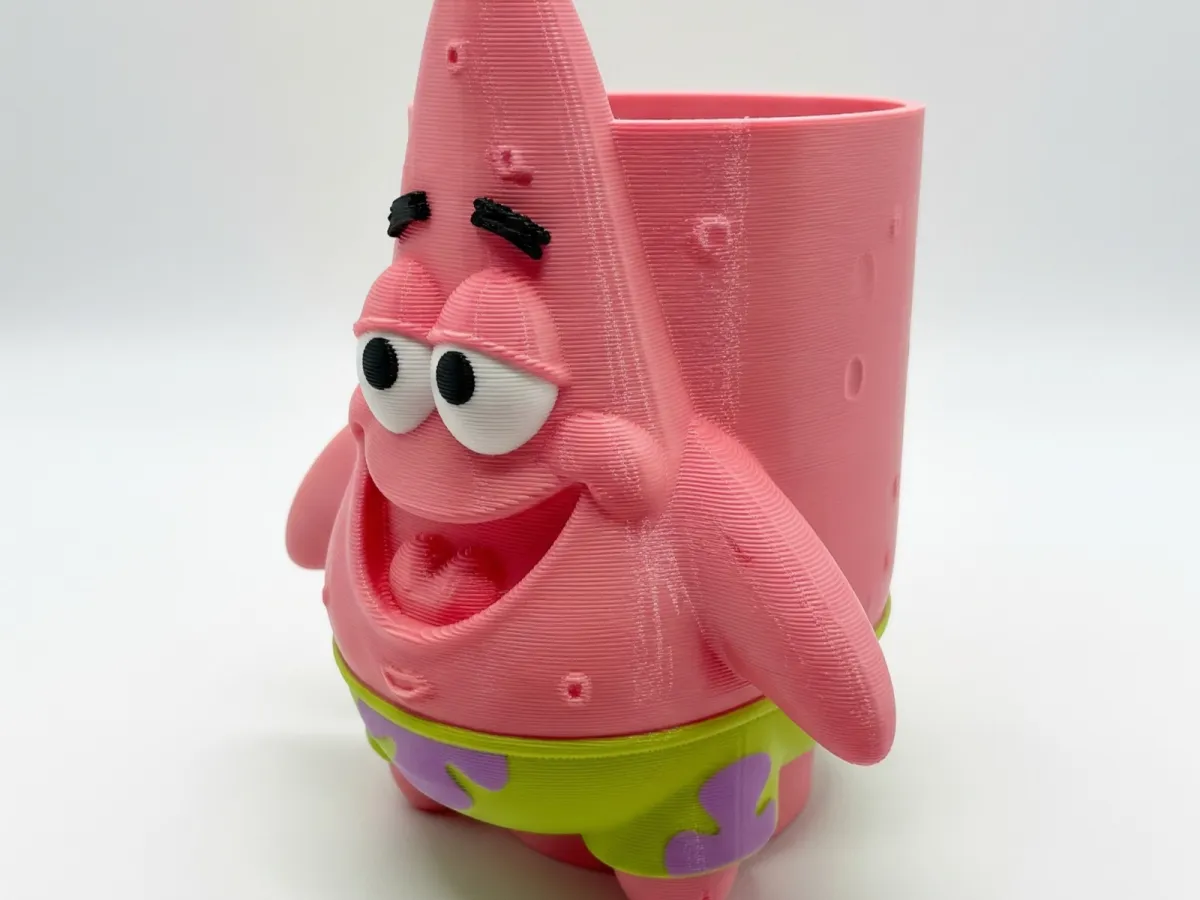

This is a 3D-printed pencil holder featuring Patrick Star from the show SpongeBob SquarePants. The figure is a vibrant pink, capturing Patrick's recognizable skin tone, and has his signature lime green shorts with purple flowers.

3D Printing Technical Sheet: Patrick Star Pencil Holder

General Information

• Item: Patrick Star Pencil Holder
• Model Name: Patrick_Pencil_Holder_V1
• Target Audience: Enthusiasts, Students, Collectors
• Function: Desk organizer (pen/pencil holder)

3D Printing Specifications

• Technology: Fused Deposition Modeling (FDM)
• Recommended Material: PLA (Polylactic Acid)
  • Reason: Easy to print, low warping, wide range of colors available.
• Filament Colors:
  • Body: Pink
  • Shorts: Lime Green
  • Flowers: Purple
  • Eyes & Mouth Details: White and Black
• Required Nozzle Size: 0.4mm (standard)
• Layer Height: 0.2mm (standard quality) or 0.12mm (high quality for smoother finish)
• Infill Density: 15-20%
  • Reason: Provides enough structural integrity without excessive material use.
• Supports: Required
  • Location: Under the arms, base, and any overhangs.
  • Type: Tree supports are recommended for easier removal and less scarring on the model's surface.
• Adhesion: Skirt or Brim recommended to ensure the model sticks to the print bed.
• Build Plate Temperature: 60°C (for PLA)
• Extruder Temperature: 200-215°C (depending on filament brand)

Post-Processing & Assembly

• Supports Removal: Carefully remove all support structures.
• Finishing: Sanding the surface can smooth out layer lines.
• Painting: The eyes and mouth can be painted after the main print. Use acrylic paints for a clean finish. A clear coat can be applied to protect the paint and give a glossy look.
• Assembly: None required; the model is a single-piece print.
