A remix for the Elegoo Centauri Carbon
This is a custom remix of the Bambu Flexible Poop Tube (Rear Exit Only), adapted specifically for the Elegoo Centauri Carbon FDM printer.

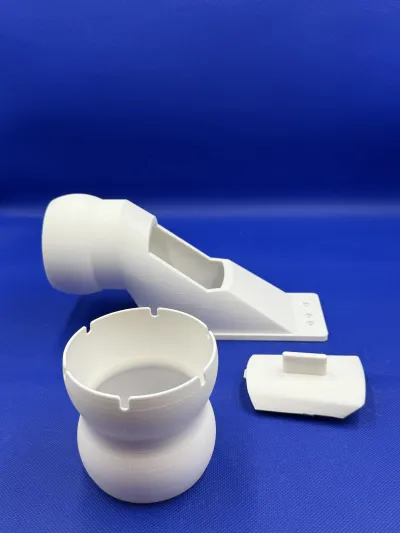

The setup consists of:

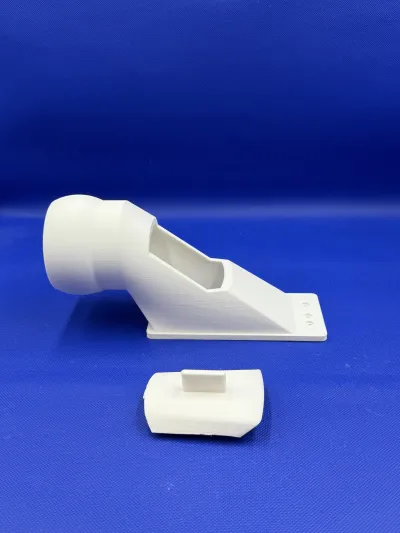

• Adapter – mounts to the printer’s rear poop chute.

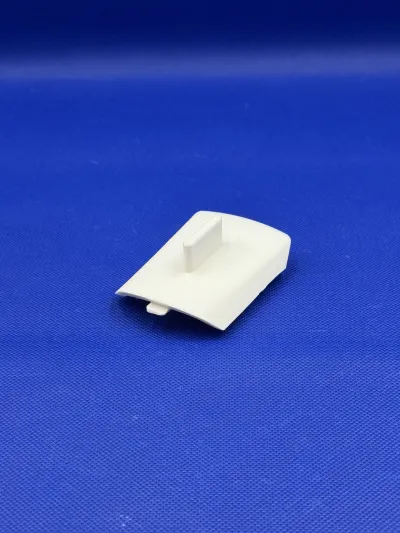

• Cover – used during installation to access the bottom screw holes.

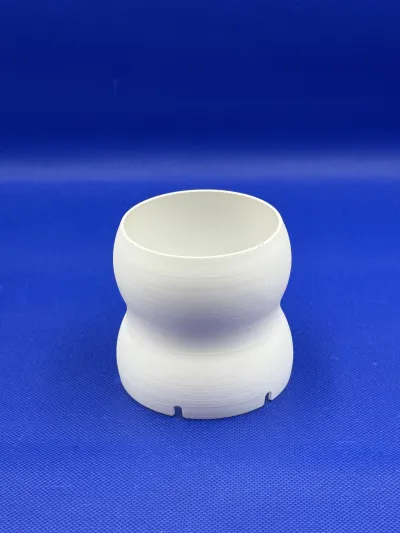

• Flexible segments – modular tube sections that guide the filament "poop" down into a container below the printer (e.g., a box under a workbench).

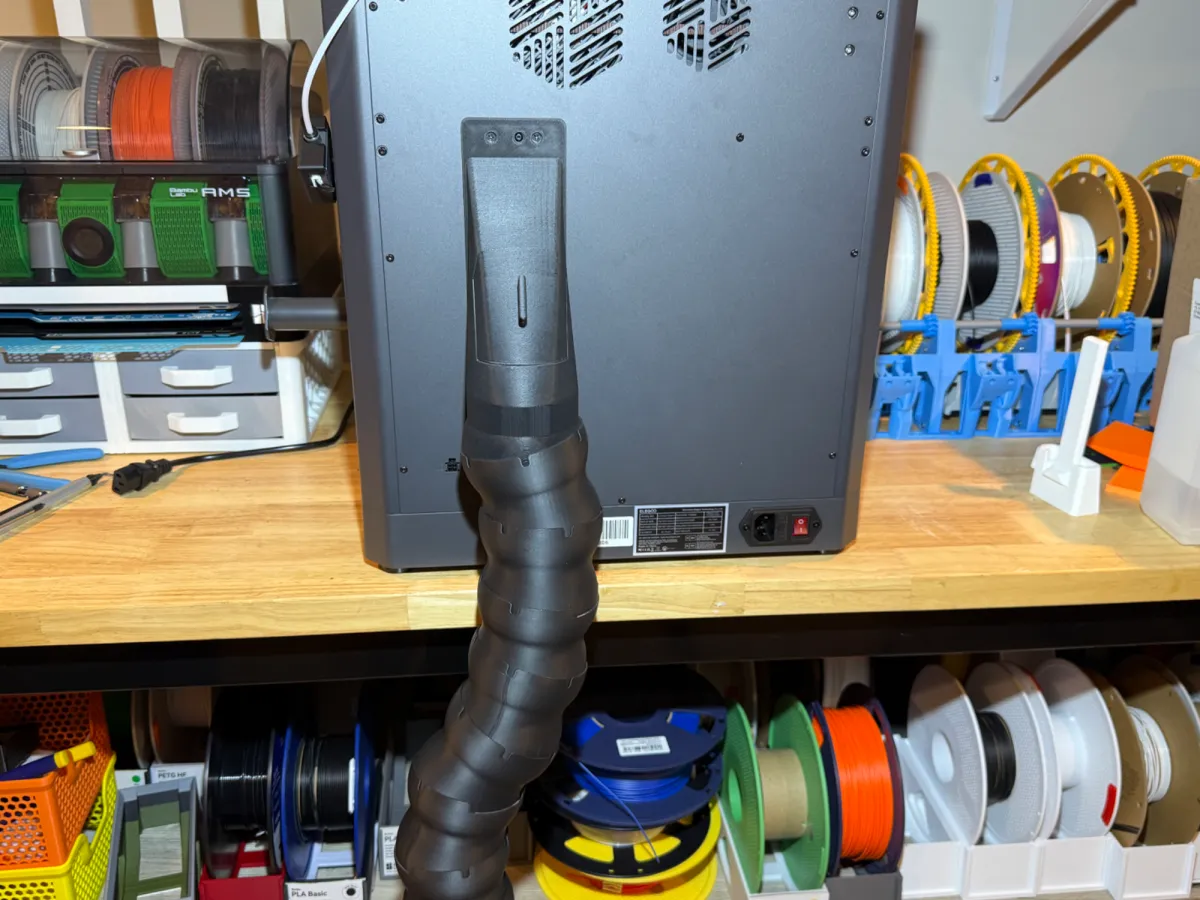

This design helps keep your workspace cleaner by channeling filament waste directly into a bin beneath your setup. You can extend the chute by printing as many modular segments as needed to reach your container.

🖨️ Print Instructions:

• Adapter and Cover: Print with supports.
• MainPoopTube Segments: Print as many as needed. No supports required.

🛠️ Assembly Instructions:

1. Remove the stock poop chute, keeping all 5 factory screws:
   • 1 × M3x4mm
   • 2 × M3x8mm
   • 2 × M3x12mm
2. Set aside the 2 × M3x12mm and 1 × M3x8mm screws – you'll reuse them.
3. Acquire 2 × M3x16mm screws (not included).

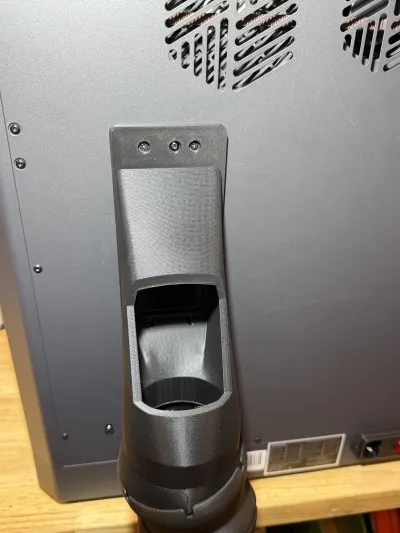

4. Install the adapter:
   • Use the two M3x16mm screws for the top two side holes.
   • Reuse the two M3x12mm screws for the bottom holes.
   • Reuse one M3x8mm screw for the center-top hole.

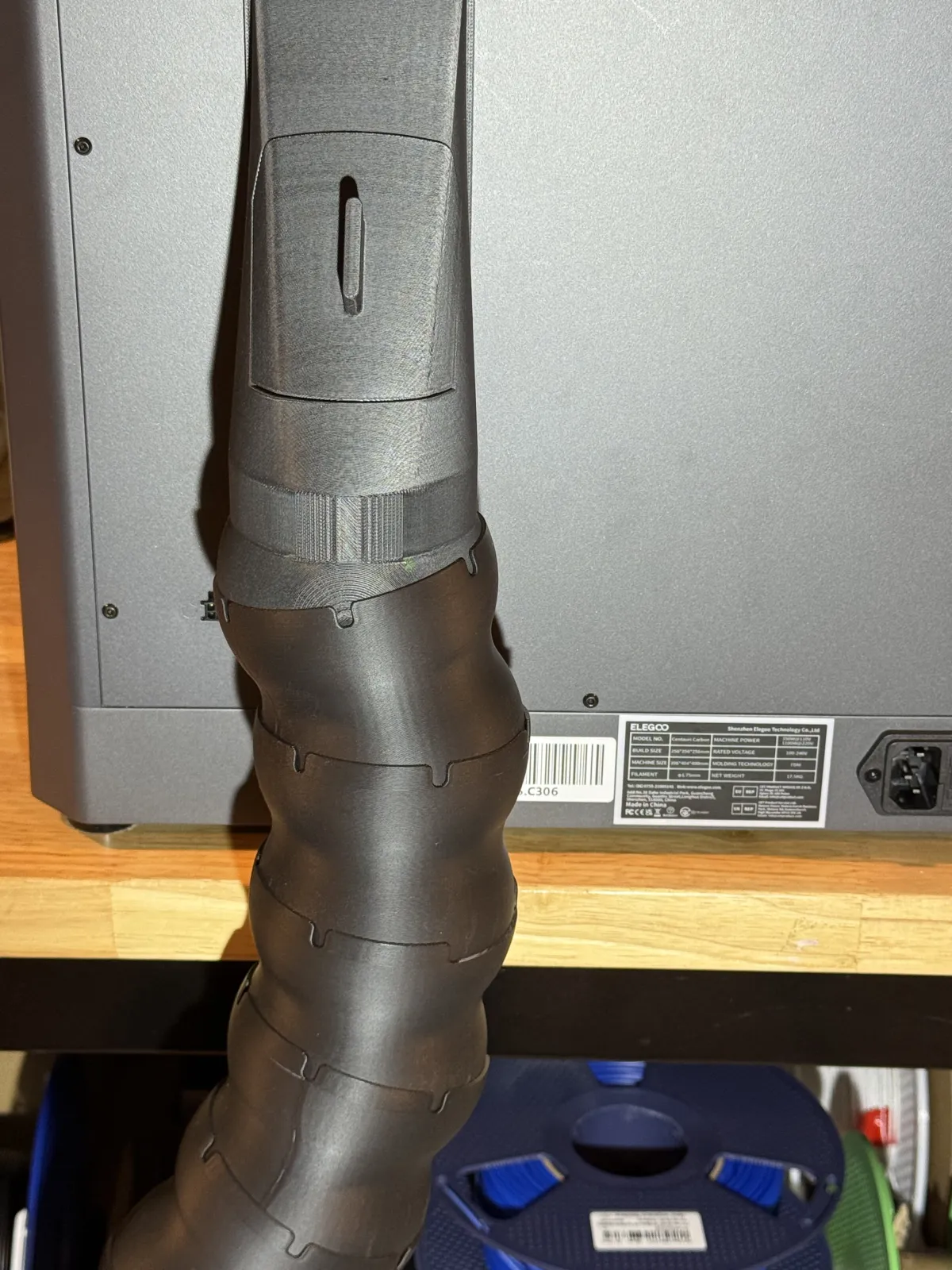

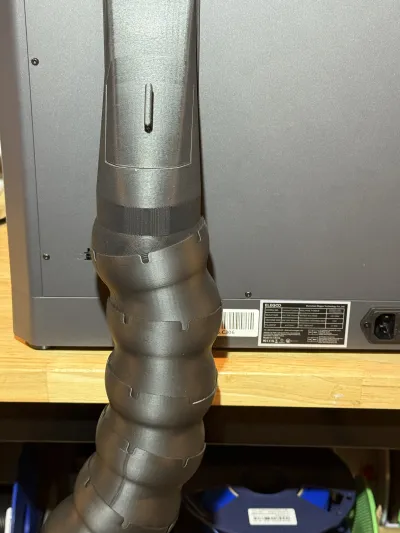

5. Attach the printed tube segments (MainPoopTube) until they reach your waste container.

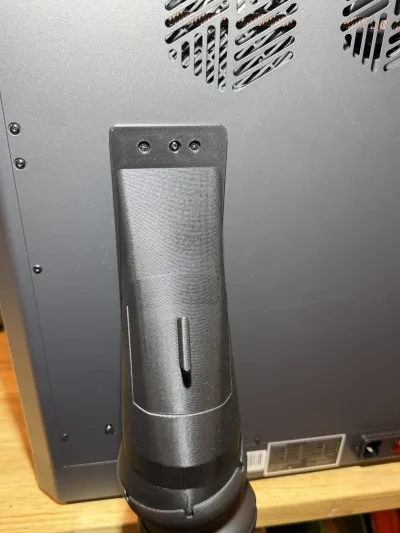

6. Snap on the printed cover to close the adapter hole.

💬 Feedback Welcome!

Tried this out on your Centauri Carbon? Found a tweak or improvement? I'd love to hear your thoughts and suggestions.
Please leave a comment, rate the model, and post a make.
