- 0.2 mm layer height, 2‑wall walls, 15% infill density
4-disc
PLA
Designer
24
3

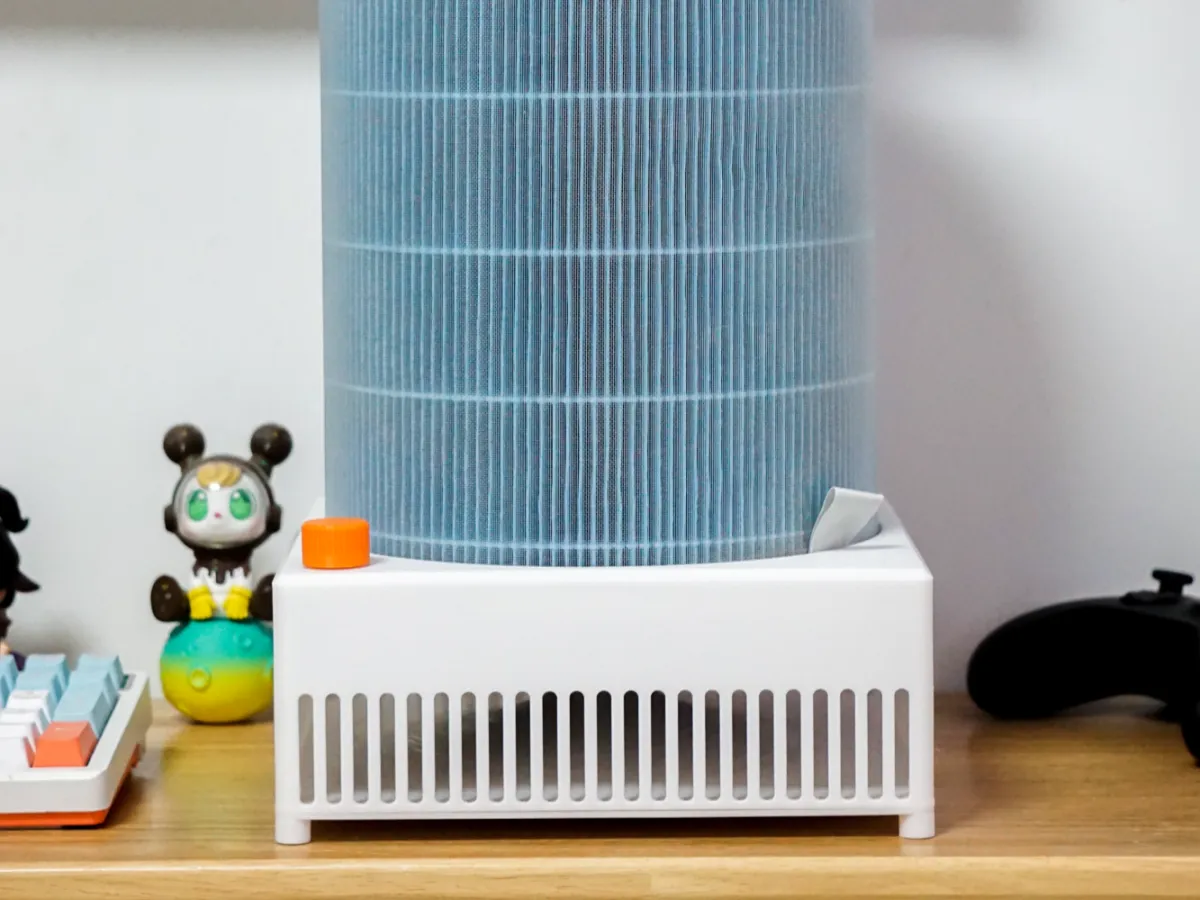

自制空气净化器（小米空净滤芯版）

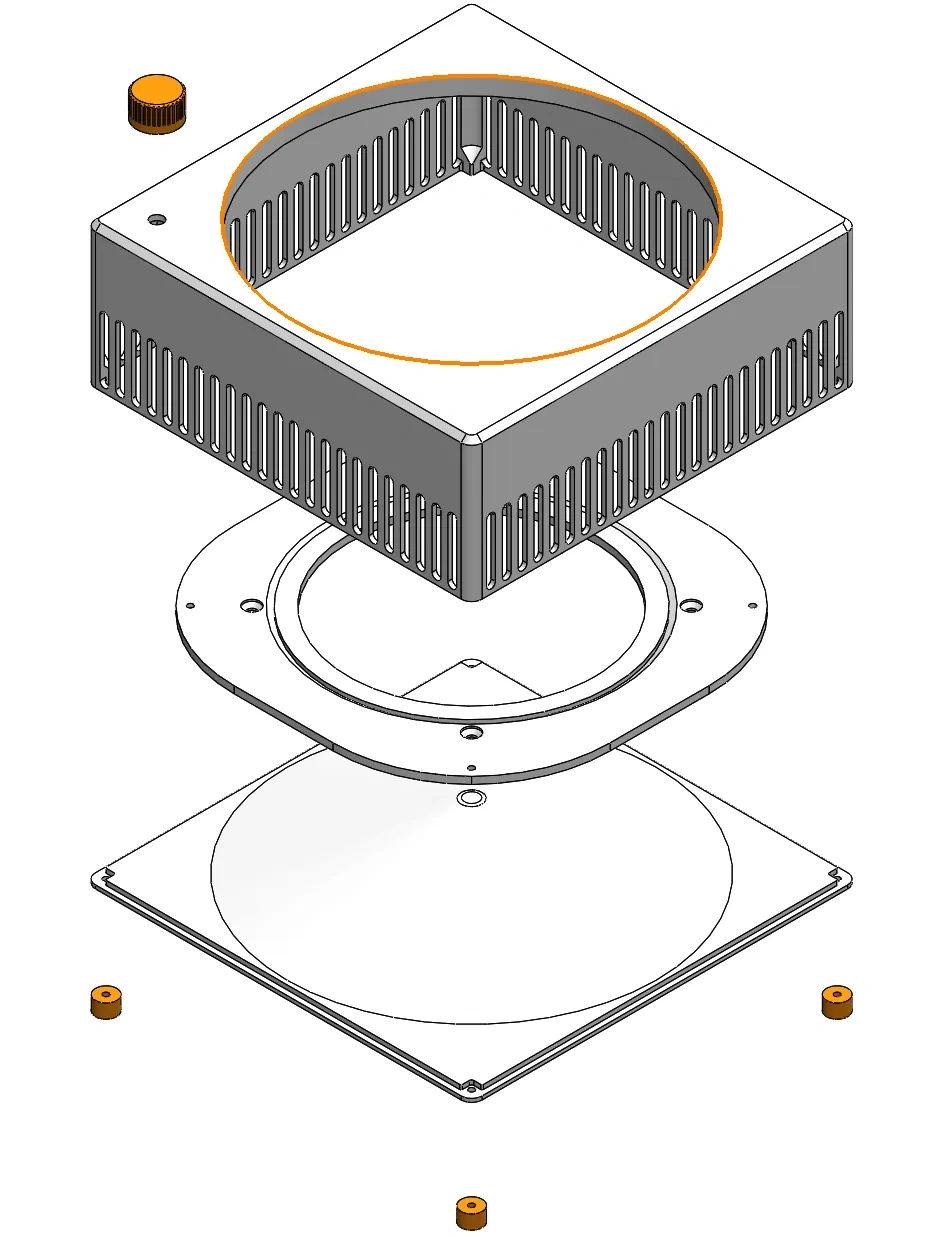

模型概述：
该模型适用小米空气净化器1/2/2S/3/Pro的滤芯，即外径为200mm的小米空气净化器滤芯。模型尺寸为：220mm*220mm*90mm（L*W*H）。采用12V DC 5521供电接口，可使用家中路由器、光猫、台灯等常见小电器的电源适配器进行供电，采用14025风扇以保证风量，配合PMW调速模块实现转速调控。推荐使用PLA Basic / PLA Matte进行打印。
所需材料：
| 材料名称 | 所需数量 | 示意图 |
|---|---|---|

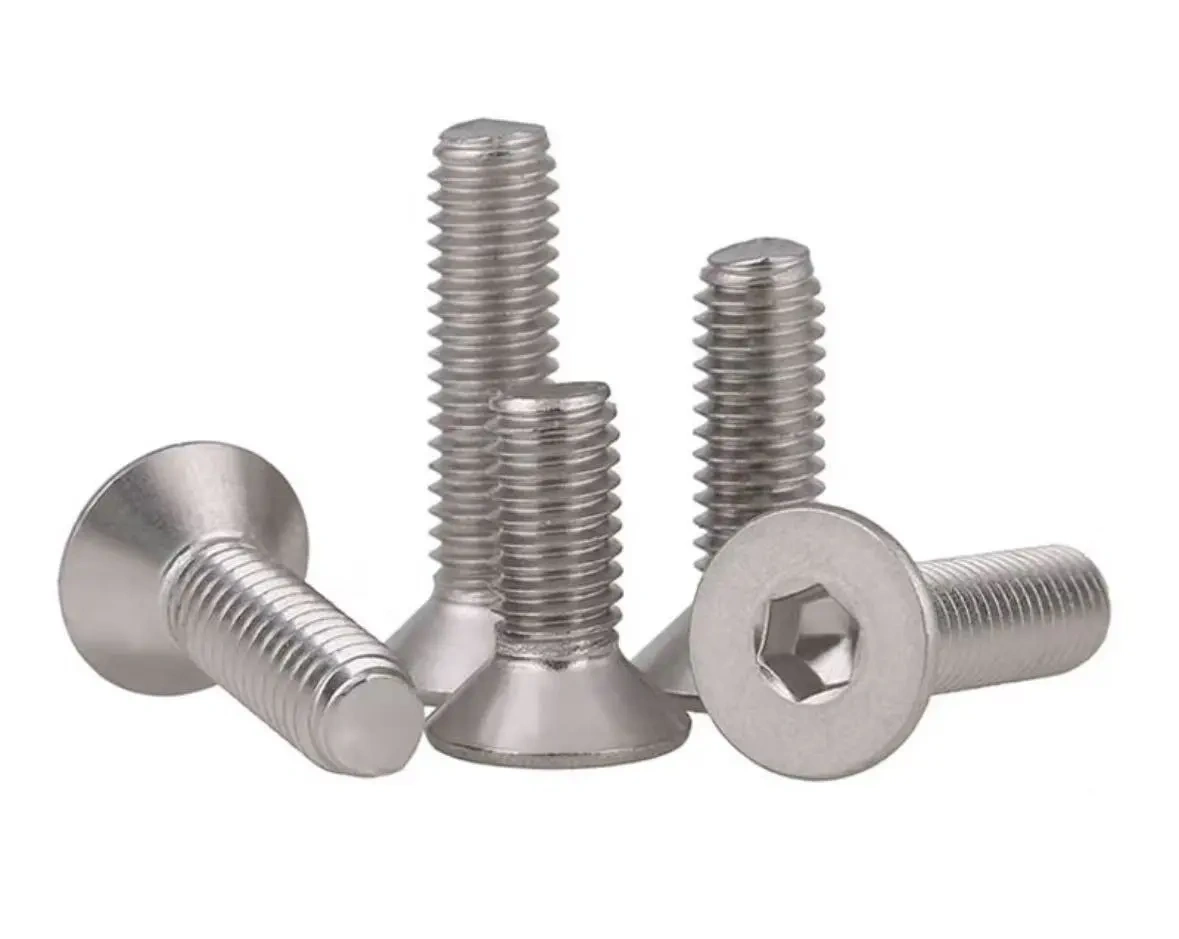

| M3*10内六角沉头螺丝 | 8 |  |

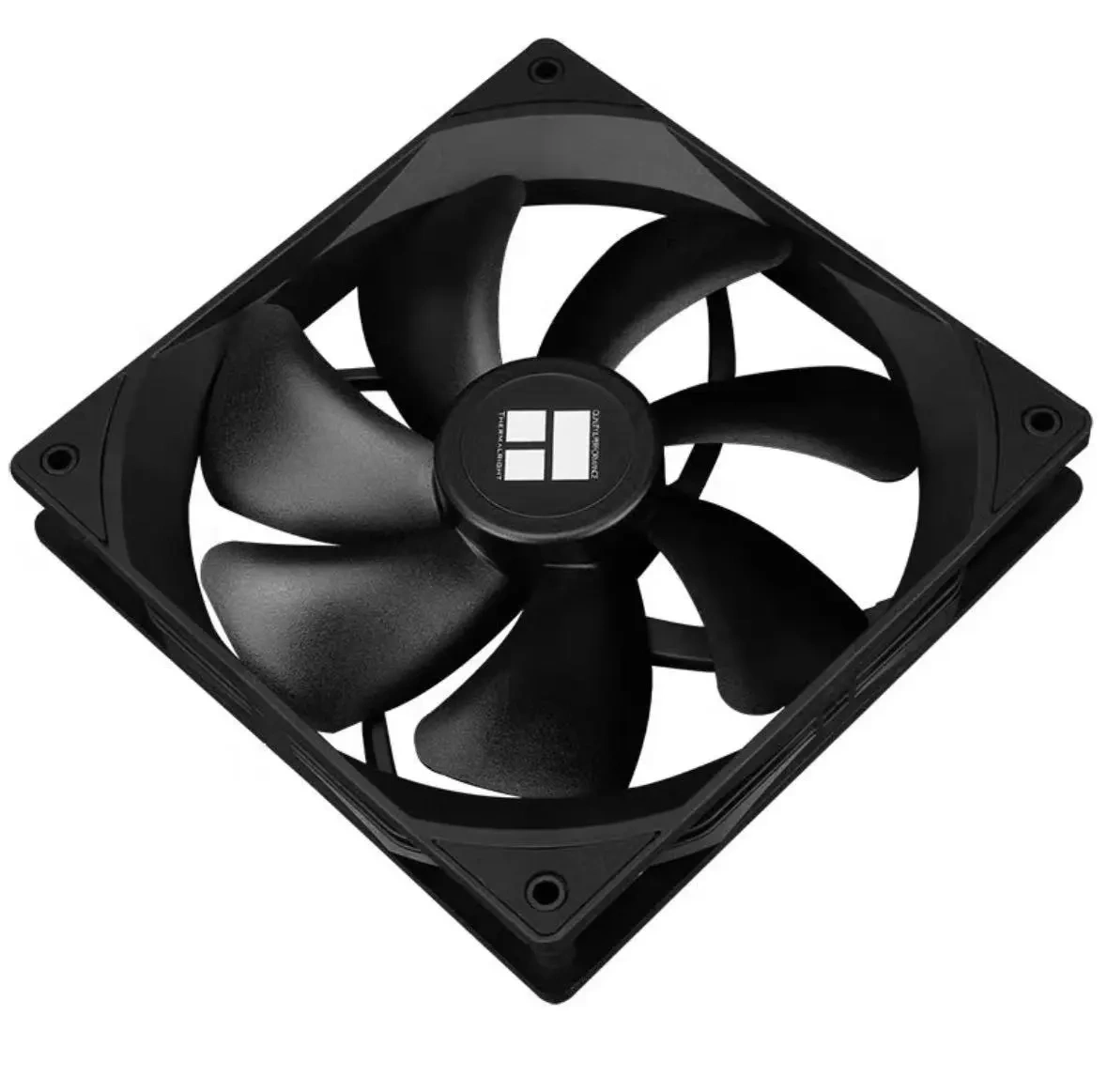

| 14025风扇 | 1 |  |

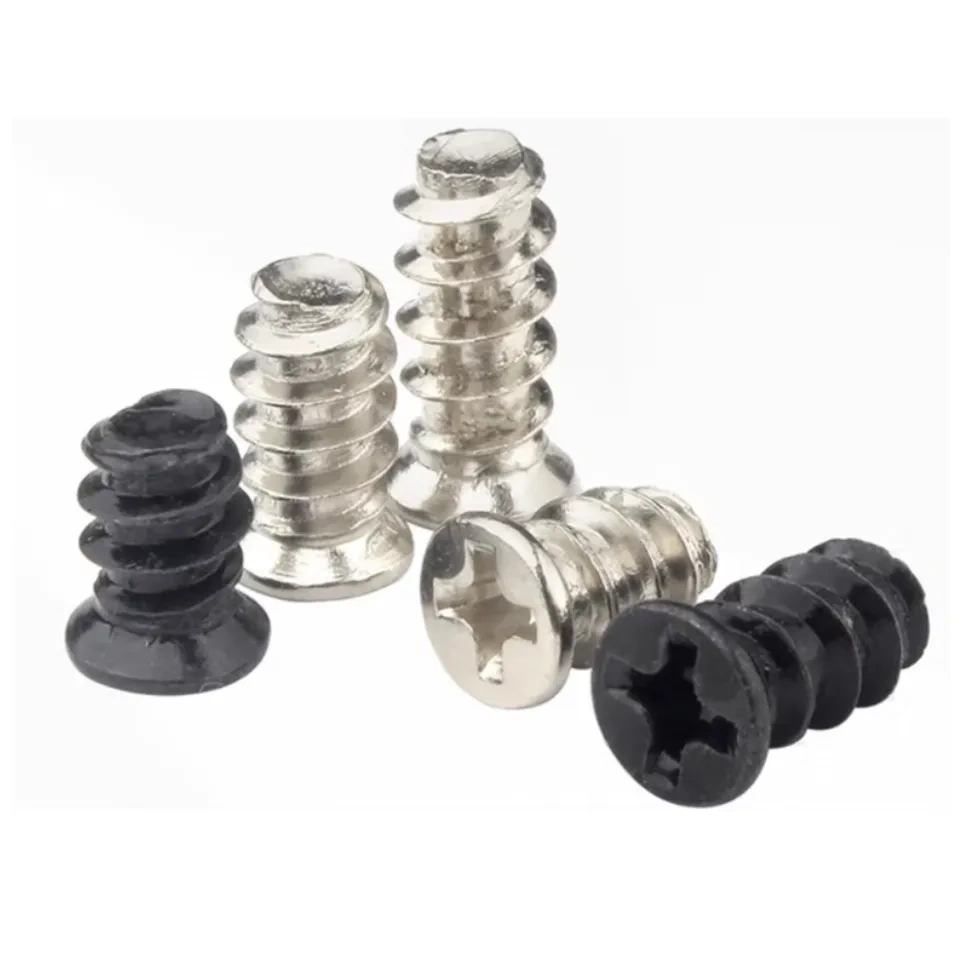

| M5*8 十字沉头螺丝（一般随风扇附赠） | 4 |  |

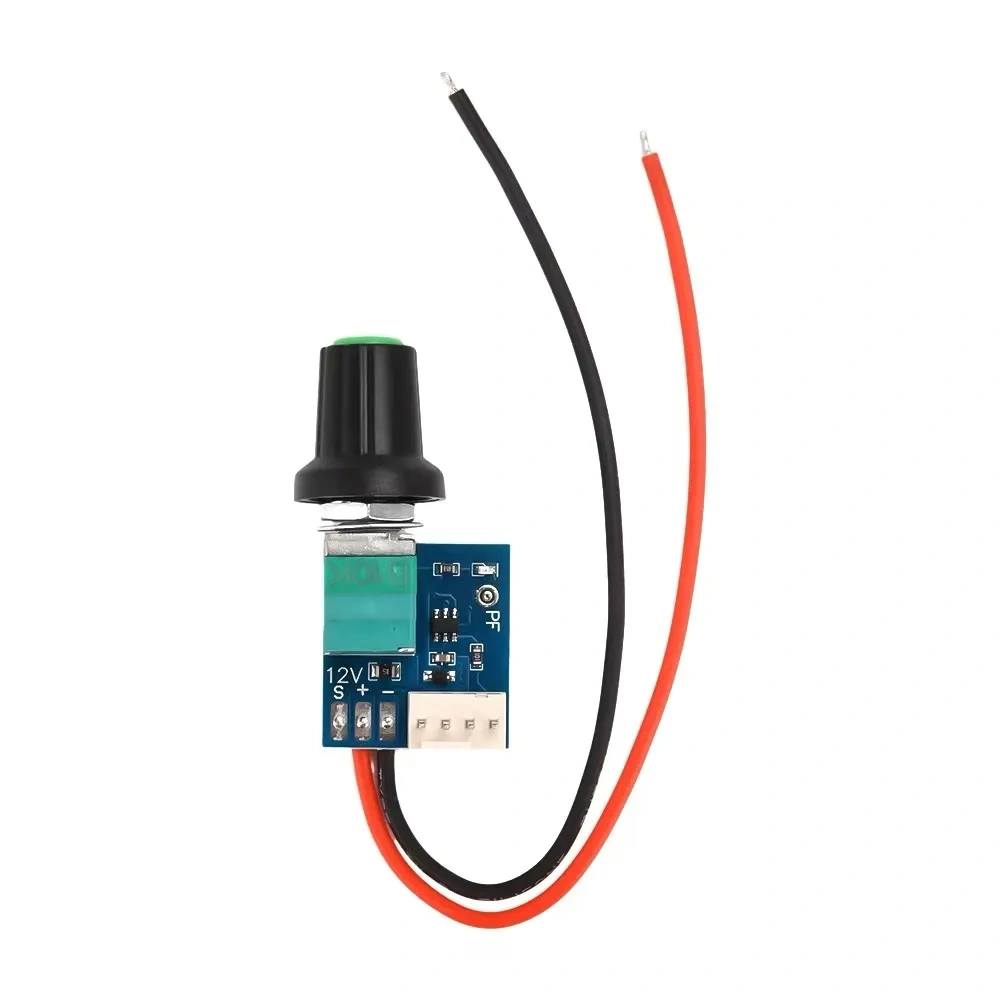

| PWM调速模块 | 1 |  |

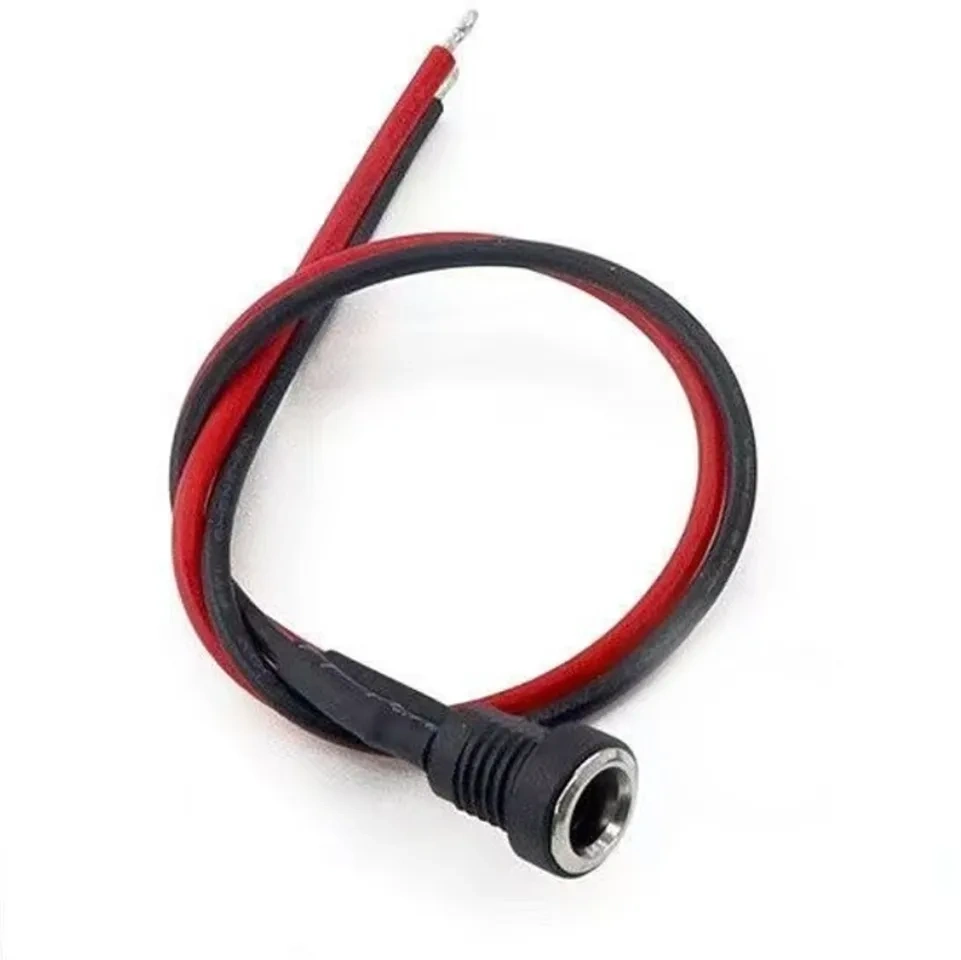

| 5521 DC母口 | 1 |  |
我使用的材料：
| 材料名称 | 购买链接 | 示意图 |
| M3*10内六角沉头螺丝 | https://item.jd.com/10023124955092.html | |
| 14025风扇 | https://item.jd.com/100070078650.html | |
| M5*8 十字沉头螺丝（一般随风扇附赠） | https://item.jd.com/10109034720308.html | |
| PWM调速模块 | https://item.taobao.com/item.htm?id=861636757955&skuId=5847925171967&spm=tbpc.boughtlist.suborder_itemtitle.1.1d1f2e8dqUJ2ZQ | |
| 5521 DC母口 | https://mobile.yangkeduo.com/goods.html?ps=DkbIBxtwOM | |
PS：仅作为标准参考，与商家并无利益关系，您可以自由在其他店铺选购相同规格的部件。 | ||
