This is a customisable version of the pen holder arms used by EggBots (http://shop.evilmadscientist.com/productsmenu/51-accessories/205-distalarm).

It was designed to be a solid, one piece object without any nuts and bolts for holding it together. It actually turned out to be 2 pieces glued together, as it's easier and faster to print this way.

To allow fitting different kinds of pens (for example Sharpie Ultrafine and Sharpie Fine markers), the pen arm itself contains a hole for an pen adaptor module. This way, when you want to change pens, you only need to replace the adaptor with another one and you get a tight fit on any pen of yours.

I supplied STLs for adaptors for the ultrafine Sharie and for the fine-point Sharpie. If you want to use a custom pen, a configurable OpenSCAD file is available where you can change the diameters around.

The OpenSCAD file also allows the customization of various parameters, like the length of the arm, the thickness of the piece and the diameter of the bolt fixing the pen.

Extra parts needed:

• 1x M3 nut
• 1x M3 bolt

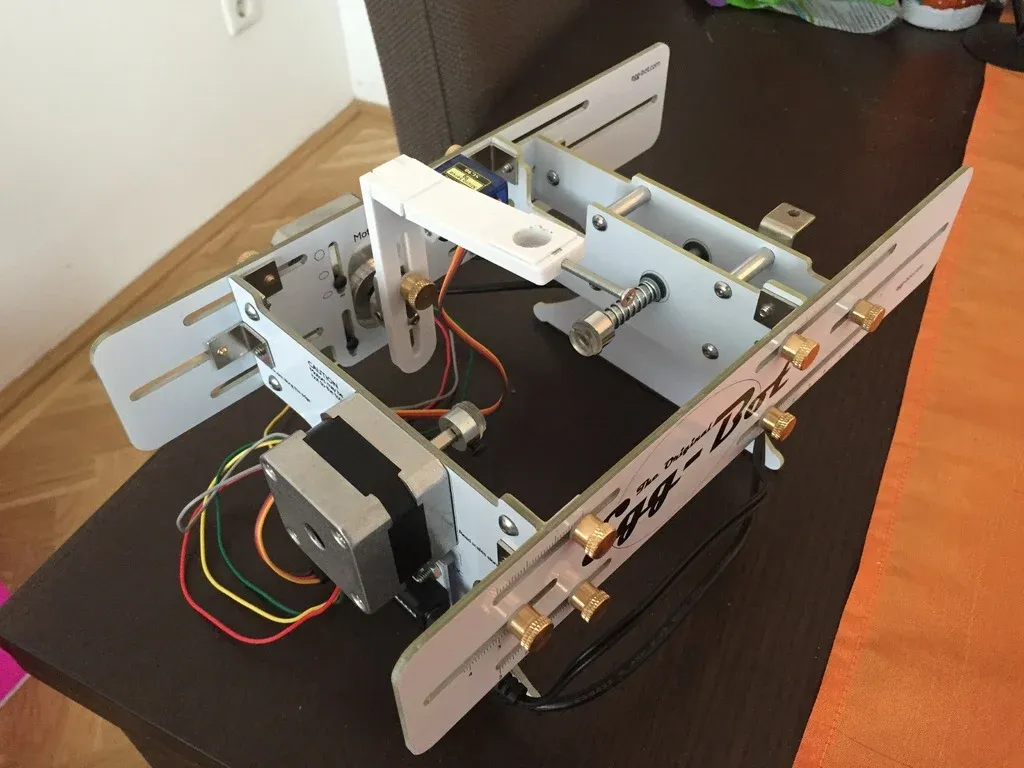

Compatible with Basic, Deluxe and Ostrich EggBots. You can use the same S90 TowerPro servo on this arm as on the one you got from EvilMadScientist.

Update 1 @ 2015-04-12

• increased the thickness of the "thin part" of the pen arm from one layer thickness (0.2mm) to two layer thickness (0.4mm) to increase durability
• modified the OpenSCAD script printing the pen adaptors so that you can specify the to diameter and bottom diameter of the adaptor module in order to model the shape of the pen better.
• updated the ultra fine sharpie STL to have better dimensions
