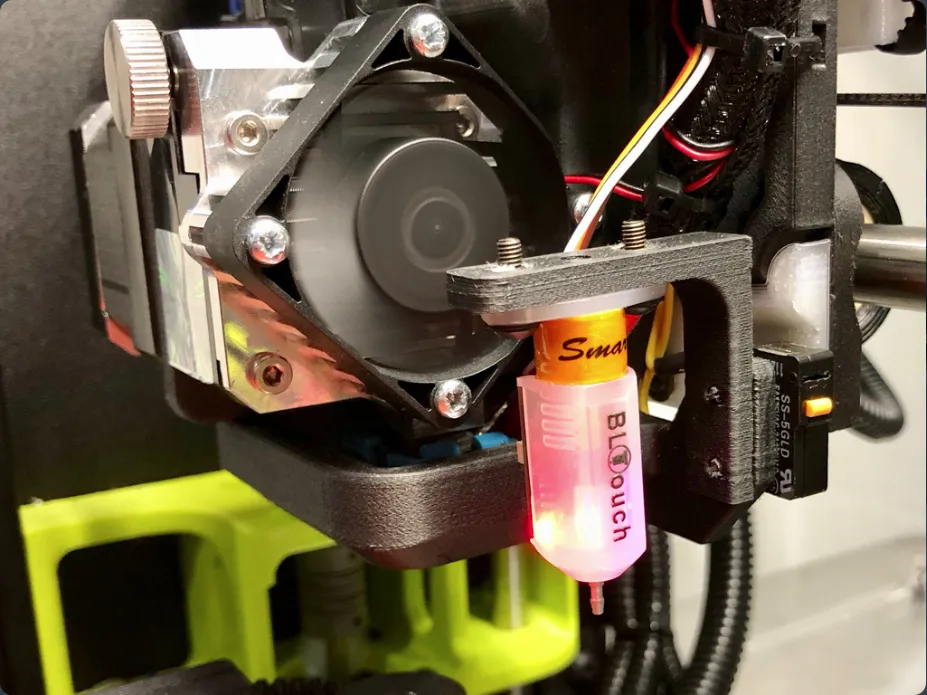

This is a small and simple mount for the BLTouch for the itworks3d.com Titan Aero extruder for the Taz.

Mount the BLTouch using M3 inserts and appropriate screws/washers - the z offset will be around -1.0mm - do this before you mount the whole thing. You can adjust the offset downward with the addition of washers between the BLTouch and the mount - the mount is designed and verified to put the BLTouch probe tip at the recommended 3mm+/- above the tip of the nozzle when the probe is stowed.

The mount then attaches to the right side of the tool head using the holes for the X axis max endstop switch - you will need to pull the M2 inserts from the tool head and reuse them with longer M2 screws. Simply set the M2 inserts into the new mount and run the new longer M2 screws (14mm will do) though the switch, the holes in the tool head where the M2 inserts were and into the newly placed M2 inserts in the BLTouch mount.
