Artillery X1 - Z Calibrate

Print Profile(1)
6
1
Released 2025-07-11
Steps:
- Raise the X axis to the top
- Release the timing belt

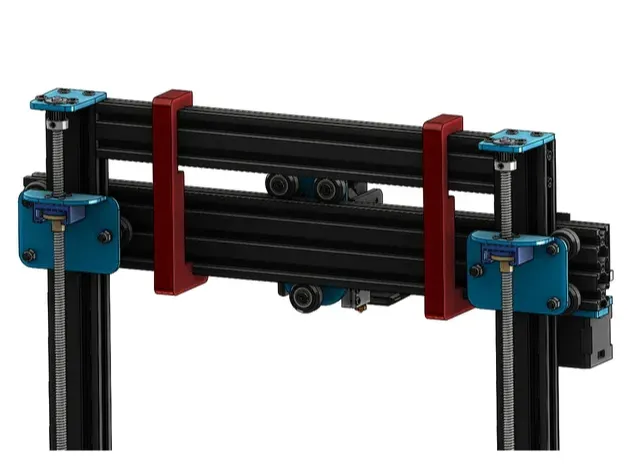

- Place the supports to the X axis
- Lower the X axis until it touches the supports, we will know that it has lowered enough when the z motors lose steps
- Place the timing belt again
- Remove the supports
Pasos a seguir:
- Elevar el eje X a la parte superior
- Soltar la correa de sincronización
- Colocar los soporte al eje X
- Bajar el eje X para apoyarlo sobre los soporte, sabremos que ha bajado suficiente cuando los motores del z pierdan pasos
- Colocar la correa de sincronización de nuevo
- Sacar los soportes
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Models(1)
Artillery_Calibrate_Z_axis.3mfDesigner450.60 KB
2025-07-11
