Laser exhaust Simple flange
Print Profile(1)
  • 0.28mm layer, 2 walls, 15% infill

    2-disc

    PLA

    Designer

2

2

31

5

Released 2025-06-26
Details
Files(1)
Makes & Comments (0)

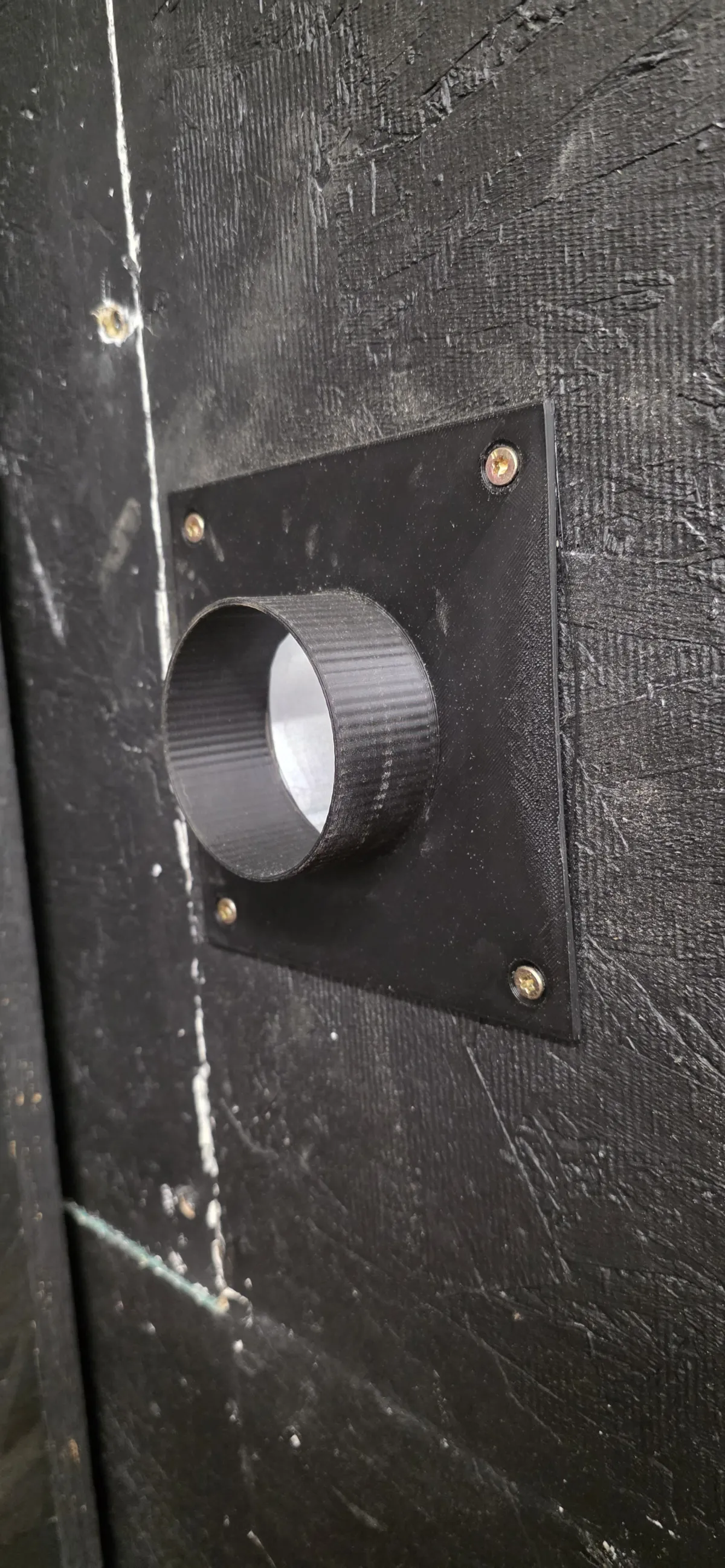

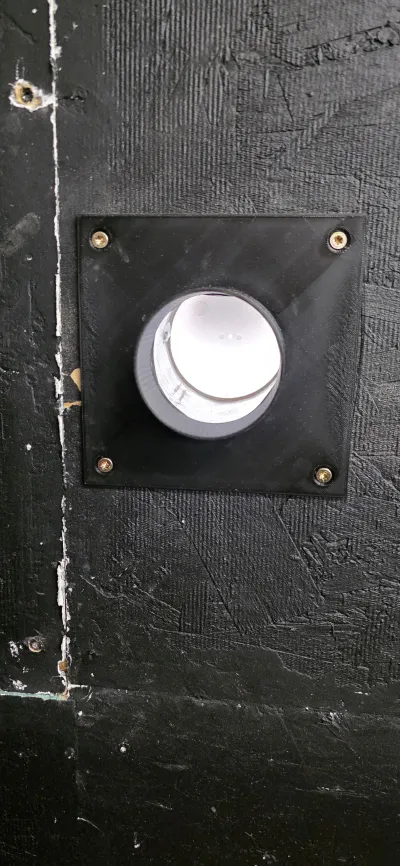

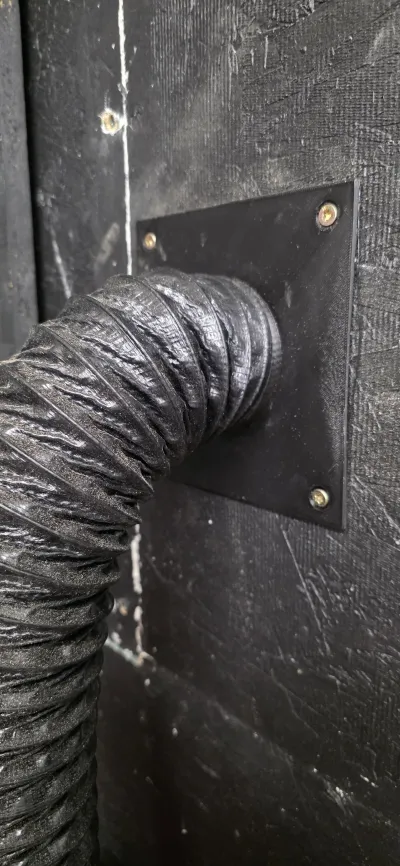

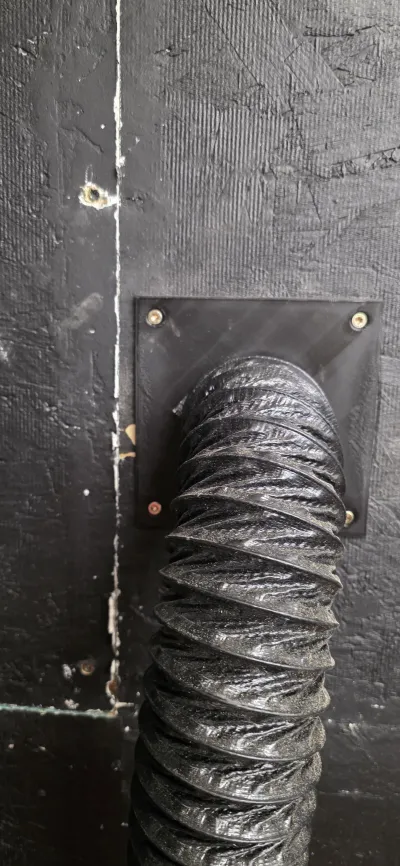

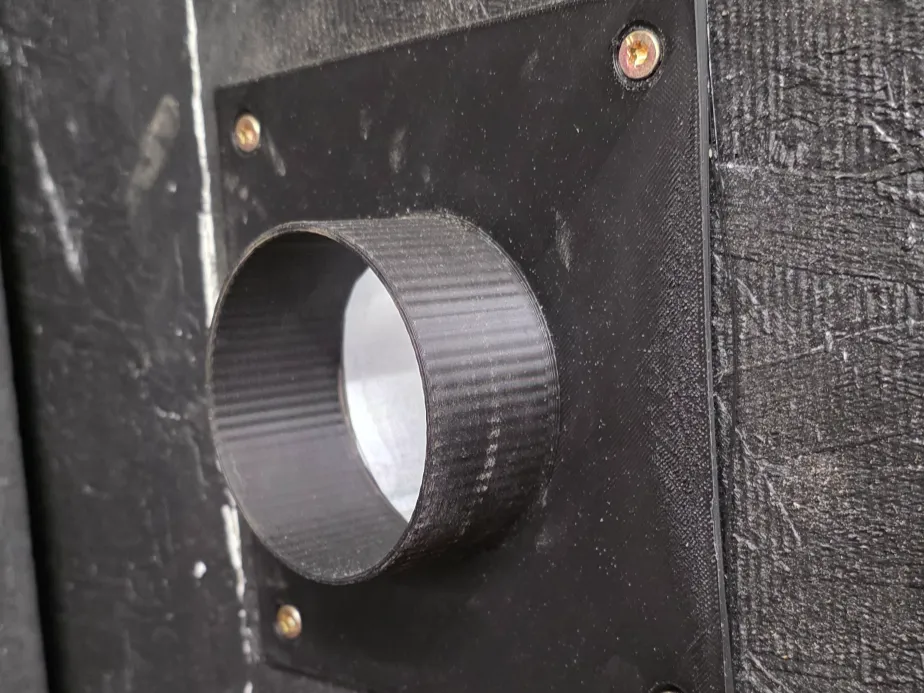

This is a interior to exterior wall pass thru for laser fume extraction. This is sized for a 74mm ID hose to fit over the flange. The backside of this flange fits onto a dryer vent from a box store that costs about $13. I have this passing thru a sheet of plywood that has been hung over a window, The dryer vent is attached to a piece of plywood that is blocked into the window opening, This was do so I would not have a permanent hole in my shop wall.
