  • 18650

  • R36s

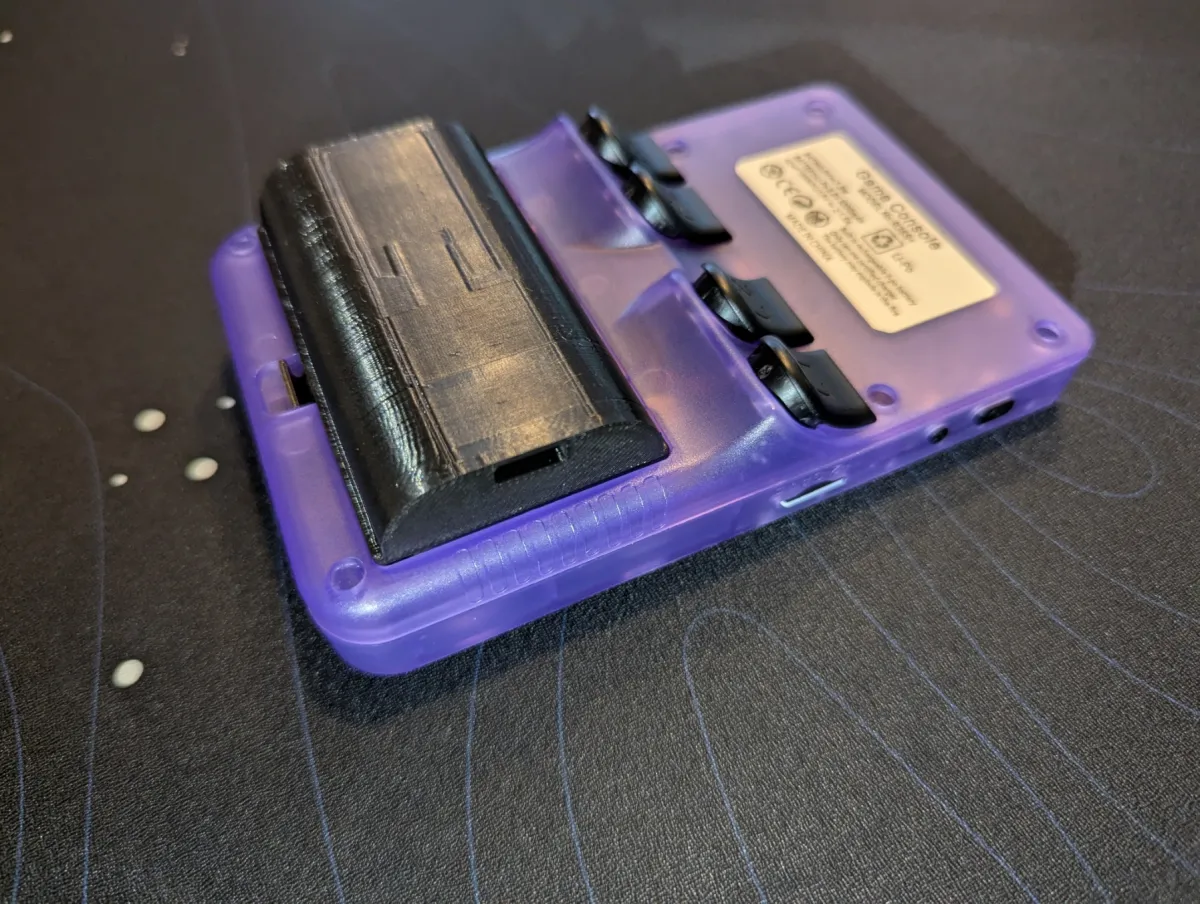

r36s 18650 battery cover mod
Print Profile(1)
  • 0.2mm layer, 2 walls, 15% infill

    1-disc

    PETG

    Designer

0

0

23

2

Released 2025-06-11
Details
Files(3)
Makes & Comments (0)

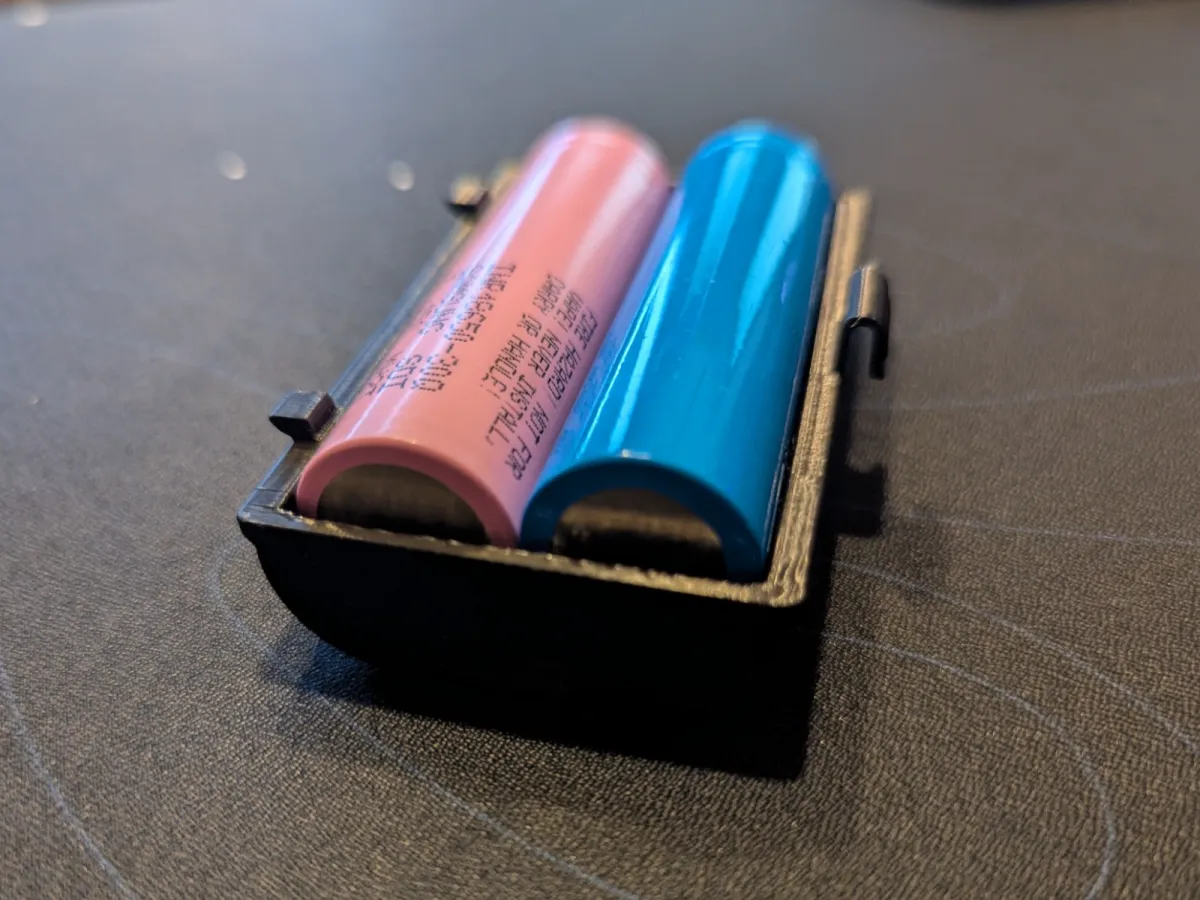

This model will require a "USB C TP4056 18650 Battery Charging Board Module" along with some AAA battery springs, a single JST 1.25mm female connector, and some glue to connect the springs to the 3d print. The 18650s should be in parallel and this mod does require little soldering (for attaching the JST connector to the negative and positive springs).

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    USB C TP4056 18650 Battery Charging Board Module
    1
    5v 1A
  • 2
    AAA battery springs
    1
    Requires 2 pairs of negative and positive connectors
  • 3
    JST 1.25mm female
    1
    Connection to the console battery port
  • 4
    Super glue
    1
    any should work

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Models(3)

  • r36s cover.stlDesigner

    52.87 KB

    2025-06-11

  • r36s cover.3mfDesigner

    37.04 KB

    2025-06-11

  • model file image
    r36s cover.3mfDesigner

    37.04 KB

    2025-06-11
