STLs

All files are in correct Z orientation

• Main (Use one of the following)

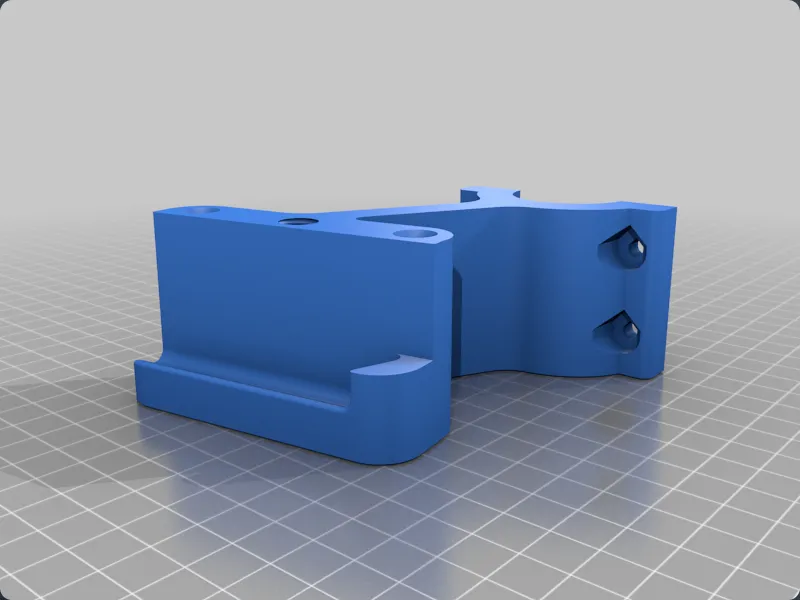

  • main.stl (for ~22.5mm handlebar)
  • main-short.stl (shorter stem)
  • main-32mm.stl (for ~32mm handlebar)
• jaw.stl
• screw.stl
• Clip (Use one of the following)

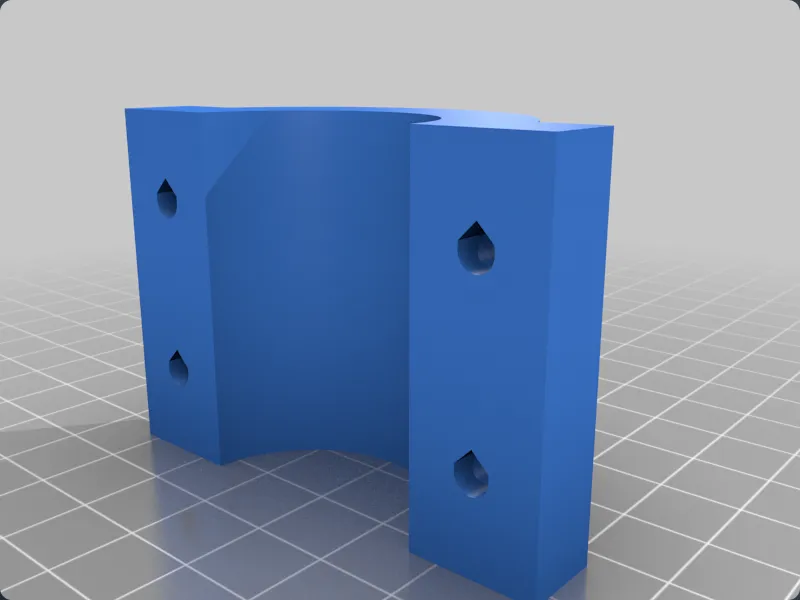

  • clip.stl (for ~22.5mm handlebar)
  • clip-with-loop.stl (use this if you want to hang a bag on your scooter that uses velcro loops, and you don't have any space left on the handlebar)
  • clip-32mm.stl (for ~32mm handlebar)

Screws & Nuts

• 4x M4x20
• 8x 10mm Washers
• 4x M4 Nuts
• 1x M4x50 (screw this inside the printed screw to strengthen it)

About the design

This is originally designed to fit Xiaomi M365 Pro scooter which has ~22.5mm diameter handlebar. But should fit on most bikes or scooters that have a straight handlebar. It needs 45mm of handlebar space. Phone sizes I've tries are from small iphone 5 to large "max" sized iphones.

If you need a custom size...

Comment if your handlebar is much bigger than 22.5mm, and i can give you updated STL. :)

My handlebar diameter is 22.5 mm, but it should fit few mm bigger handlebars as well. For smaller diameter, you can use rubber padding.
