Summary

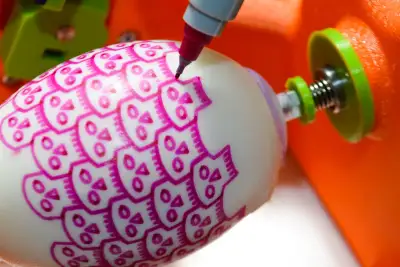

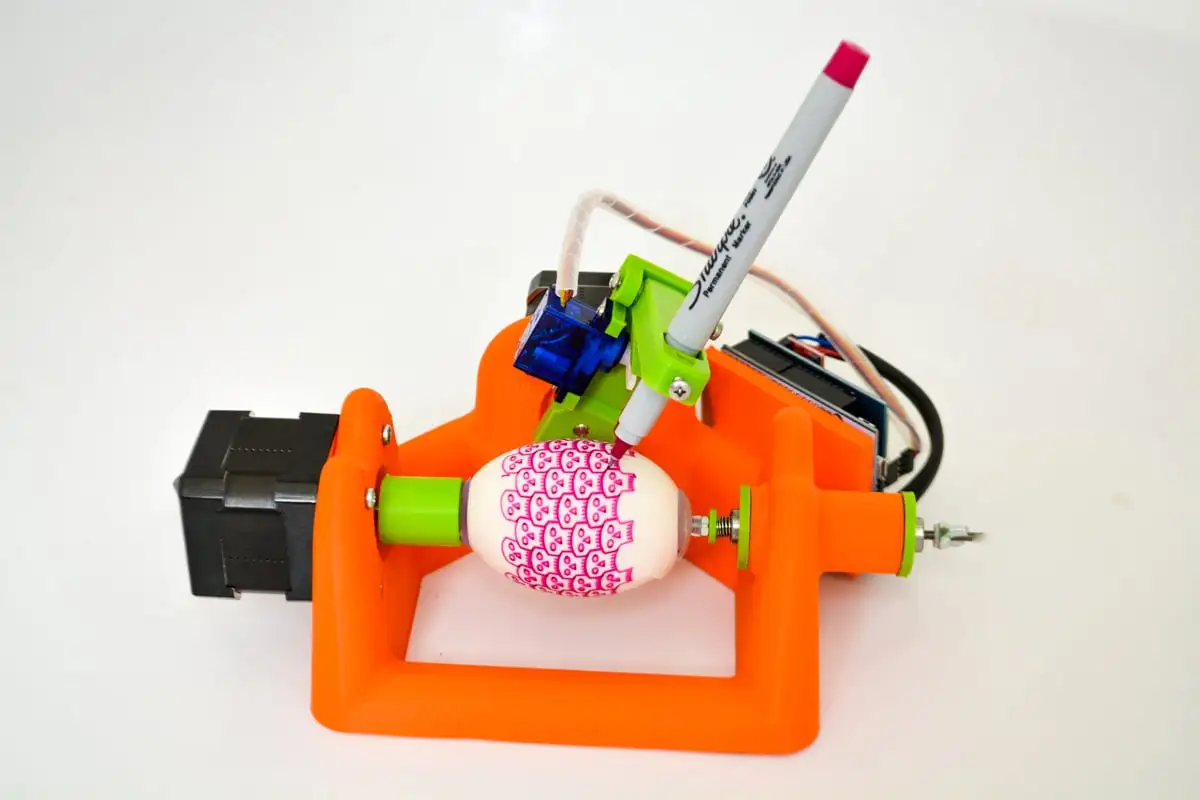

The Sphere-O-bot is an open source hardware+software project.

2021 Update: New software version. Portable Inkscape with everything already installed. More info in the assembly guide.

Originally from Evil Mad Scientist (very cool robots), we have adapted the idea to our electronics and ancillary elements. Software, designs and use is exactly the same. The frame was designed by Attila Nagy

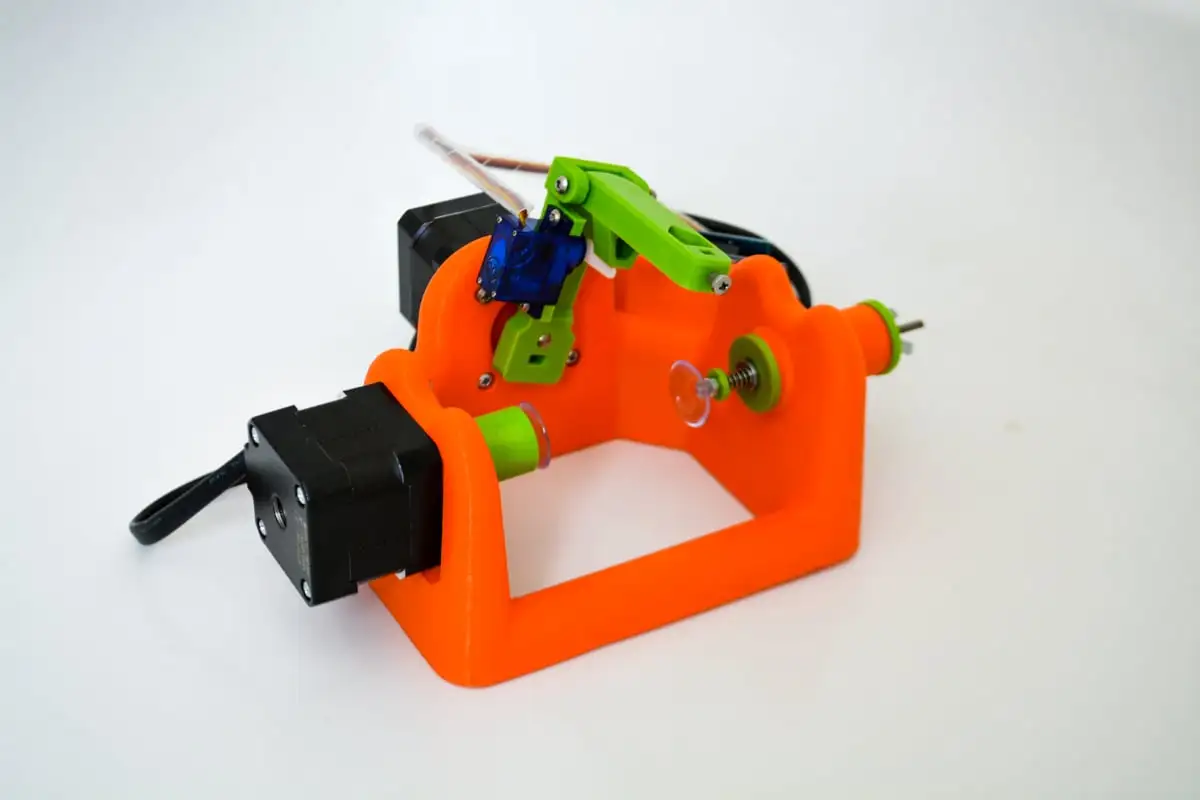

The list of parts to print:

• 1x Spring holder
• 1x MAIN_frame (with support)
• 1x Egg support [v2] for medium suction cup size*
• 1x Pen holder (updated March 2019 to hold more different pen sizes)
• 2x Axis support
• 1x vertical ARM
• 1x M3 nut Knob (replacement for the metal wingnut)

 The Electronics are OPEN SOURCE (feel free to replicate it if you want)

• You can also buy everything (customizable KIT): here
• How to set it up?:  Assembly guide
• NEW: Create the new pyBot Robotic Arm using the Sphere-o-bot´s components and electronics
• Sphere-o-bot KIT unpacking and alternative setting up video (thanks Geeksmithing!): here

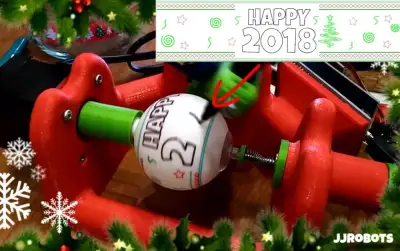

• Painting Xmas ornaments: here

--------------------------------------------------------------------

What you need to create this painting robot

• 2x 623 bearing
• 1x Threaded steel rod (3mmØ,80mm length)
• 1x compression spring (4,5mmØ, 10 mm length)
• 2x 1.8deg HIGH QUALITY NEMA 17 Stepper motors (40mm length) (4.4Kg/cm torque) Motor cables (14+70 cms long)
• 1x SG90 servo
• 1x DEVIA control Board
• 2x A4988 Stepper motor drivers
• 1x Power supply 12v/2A
• 6mm M3 bolts
• 12mm M3 bolts M3 nuts
• 2x 20mm Suction Cups

--------------------------------------------------------------------

OTHERS:

cable wrap (optional but makes everything look prettier..)

You can also buy the Sphere-O-Bot robot KIT (motors, electronics and ancillary elements) here: http://jjrobots.com/product/sphere-o-bot/

NEW:  Use the same electronics to create the Pybot Robotic Arm!

REUSE THE ROBOT COMPONENTS!

If you like this robot, why not create a few more using the same motors and electronics? Find all the information here, with the MOST AWESOME ROBOTICS KIT
