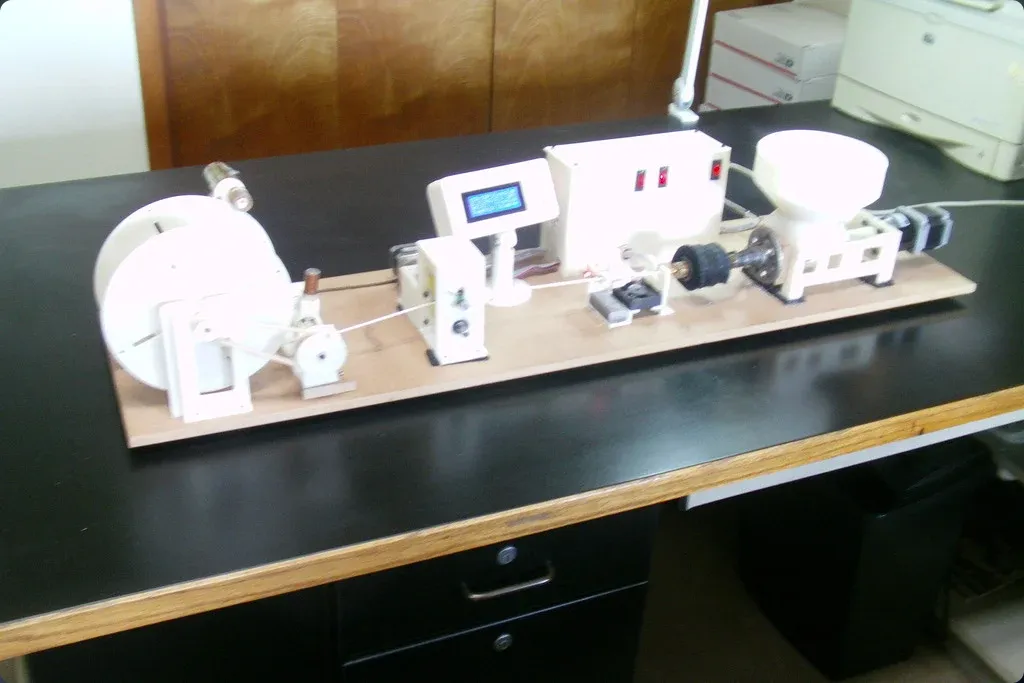

The Lyman / Mulier Filament Extruder V5 extrudes filament for use in 3D printers.
Features:

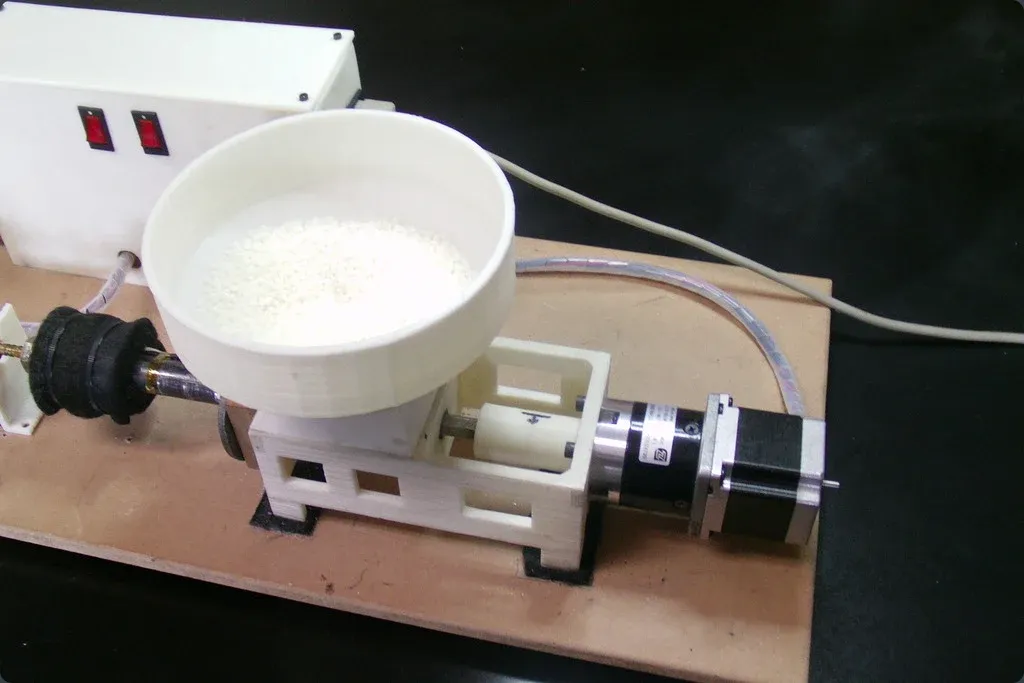

Stepper Gear Motors
LCD control of Ramps for all functions
Filament Diameter Sensor
Level Winding filament onto Filament Spool.
Manual is 60 pages and there are 35 stl part files in the zip folder.
BOM for each sub assembly is included with each exploded view of the assembly.
Material Cost of about $600.
Video Link:
https://www.youtube.com/watch?v=vL9zDOdRqBo
Originality of the Model
The author declares that this work is their personally shared model
This model is licensed under the following terms:
Credit must be given to the creator
Models(9)
A02_PART_11_STL_1__EXTR_BASE_NO_OUTRIGGER.stl
117.66 KB
2025-07-09
- A02_PART_19_STL_4_FUNNEL_BASE.stl
719.61 KB
2025-07-09
- A03_PART_1_STL_6B_SENSOR_CASE_CONE.stl
54.87 KB
2025-07-09
- A05_PART_4_STL_18_PED_CASE_NO_OUTS.stl
112.19 KB
2025-07-09
- A07_PART_3_STL_28_WORM_GEAR.stl
393.44 KB
2025-07-09
- LEVEL_WIND_NEW_WORM_GEAR.zip
523.65 KB
2025-07-09
- LEVEL_WIND_SQ_GUIDE_with_Clips.stl
44.81 KB
2025-07-09
- LYMAN_MULIER_FILAMENT_EXTRUDER_V5_MANUAL_R1.pdf
5.32 MB
2025-07-09
- STL_PARTS_ZIP.zip
832.98 KB
2025-07-09
