hex bit
modular organizer

5
0

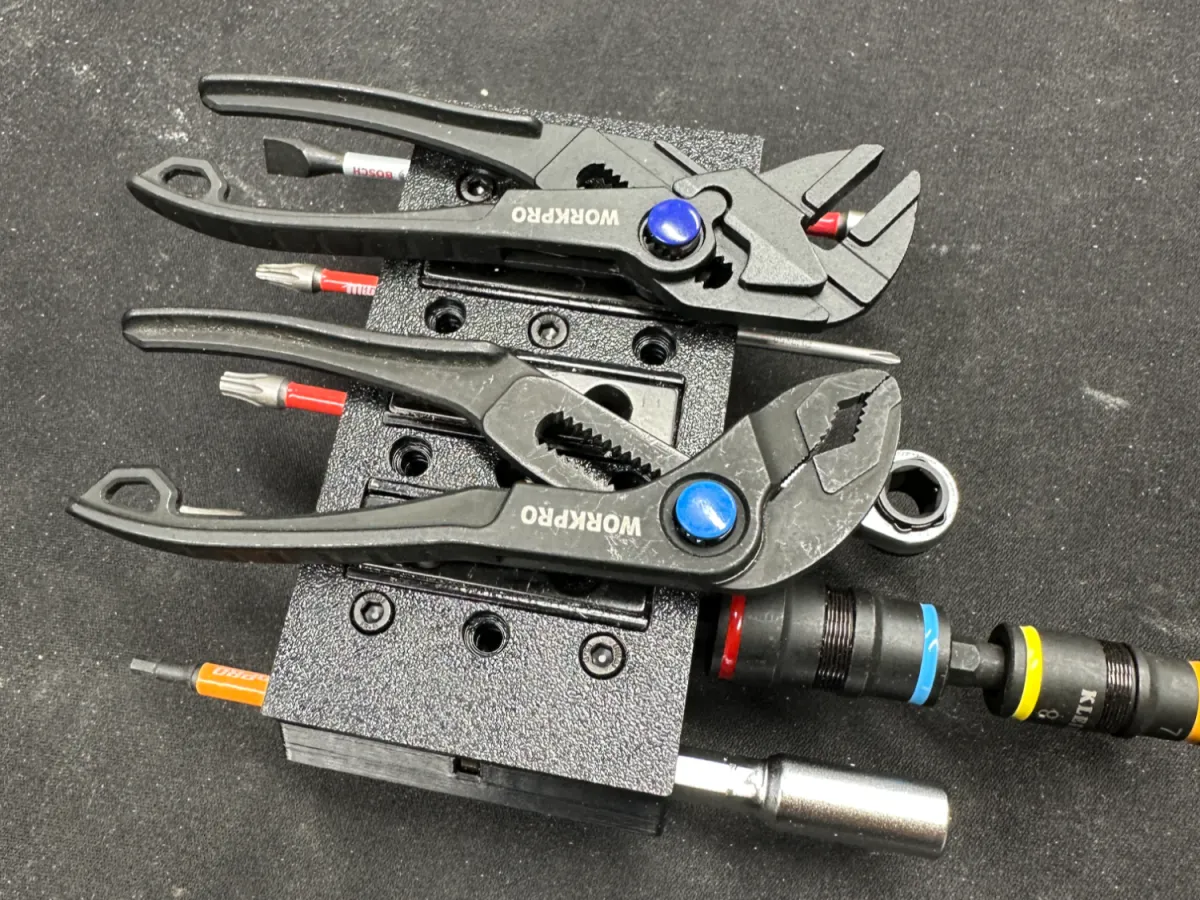

I made this so I could clip it on my belt when I was on a ladder and needed a place to hold a few screws and a few 1/4" bits. I made it modular using heated thread inserts so I could easily swap out for different tools for different scenarios.
I used
M3x5.7 threaded inserts
M3x8 cap head bolts
10x3 N42 magnets
40x13.5x5 magnets
I printed in ABS
Layer Height = .16
walls = 4
infill = 20
supports = tree/auto/3 top interface layers/.1 top interface spacing
I am including steps files, the bit holder, magnet plate, belt clip, and bare accessory plate for customization, and a small single piee one my wife requested.
I am NOT a designer, I built this for myself and one specific need. I had a friend tell me I should post it for others.
I called it multibits because my youtube feed has been inundated with multiboard lately, and it sounded funny to me.
I only inserted the threads I needed at the moment, but there are provisions and you can insert them for the entire grid. Just seemed like a waste to do more than I would use. I can always add them later as needed.
Bill of materials
- NameQuantityNotes
- 1M3x5.7 threaded inserts24https://www.amazon.com/ruthex-M3-Threaded-Inserts-RX-M3x5-7/dp/B08BCRZZS3/ref=sr_1_1_sspa?crid=3B5C50ZIO3LCJ&dib=eyJ2IjoiMSJ9.m6y6WG6dYQfwAGoajTQFcnGsAdPWOT6_KculpvKlXhxrU3rpPF6GJO8G6Yjaepg6PryogHjVlBjJY_kr4A-0atui1VyveN8cs3XADeD2FPWMLYHi0jQnrT-E8U7NUP4THJs3PSlfLC-3y-J7wxek6kGpMLZ9jZ-m1sY1_8I7kEOXkZQjDC9p2vFyPjuY2tpRxLu-Fj7TwuO727ssREa-wmsDEJfeDJ1dqLALGHTzX04.-v37AGc0gsaSTEbu8ICYcM1oXwwdBYMxQRvH4dXutbg&dib_tag=se&keywords=m3x5.7%2Binserts&qid=1781567159&sprefix=m3x5.7%2Caps%2C190&sr=8-1-spons&sp_csd=d2lkZ2V0TmFtZT1zcF9hdGY&th=1
- 2M3x8 cap head bolts24https://www.amazon.com/dp/B07CMQ1SQH?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_2&th=1
- 310x3 N42 magnets5https://www.amazon.com/AplysiaTech-Strong-Refrigerator-Magnets-Scientific/dp/B0FL27FH3W/ref=sr_1_29?crid=22CYLK543J8NR&dib=eyJ2IjoiMSJ9.J5GHfAH66UEfyH4LXhPTk1DsU1YsY-q6ABhsbAPxaS3efmbB0CLFdY2y9bfBgICiTHLCgfs3ZtExDlZtJ7J-BGgOjPppSTWP1i-VyRpO6b-lY_tWrX5aj9dbwgnFV0Z5XY4zjoXRE3Wr-UidICc8xA5qullzQysZOecGfp0Gxmwi2s4jzdI1lG1nkFApN-t5NGunfubkzMJXrGs7NCx3SLGWtVld0bECXoJuDcRhPghZ2rVCqofOMu7hQAHm4nlmmSg7qcDbyRtWWU50HRrkT2PkpEi9yo2Pj8yd3uB8LEc.OWlIQ4nBCXyhRlltkaH8GnZVHim7HwKO4KR8wIKem-8&dib_tag=se&keywords=n42&qid=1781567306&sprefix=n42%2Caps%2C185&sr=8-29
- 440x13.5x5 magnets3
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
Models(10)
multibits_magnet_plate_10.stepDesigner997.76 KB
2026-06-16
multibits_magnet_plate_10.stlDesigner34.90 MB
2026-06-16
multibits_small.stepDesigner116.94 KB
2026-06-16
multibits_small.stlDesigner139.14 KB
2026-06-16
multibits_base_10.stepDesigner539.73 KB
2026-06-16
multibits_base_10.stlDesigner2.76 MB
2026-06-16
multibits_belt_clip_10.stepDesigner442.18 KB
2026-06-16
multibits_belt_clip_10.stlDesigner8.05 MB
2026-06-16
multibits_blank_top_10.stepDesigner122.52 KB
2026-06-16
multibits_blank_top_10.stlDesigner321.08 KB
2026-06-16
View all(10)
