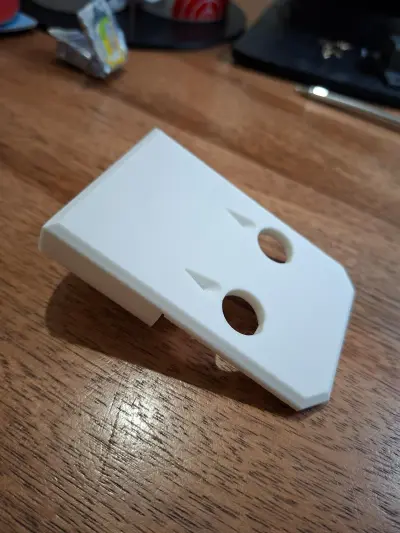

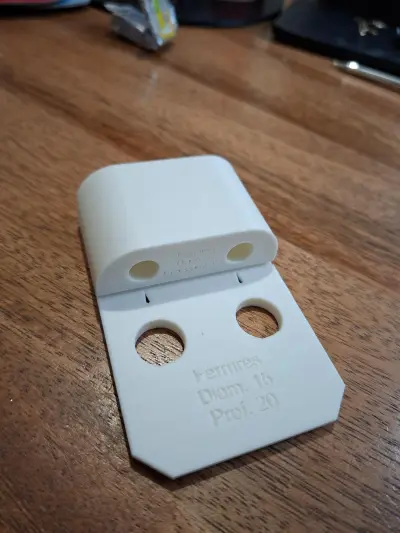

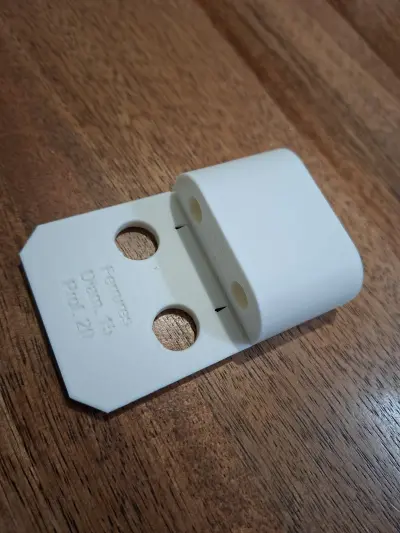

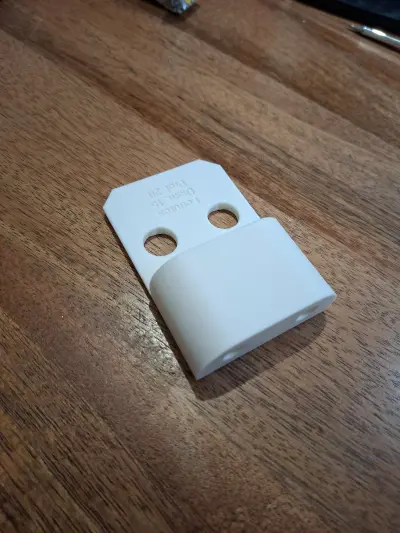

This is a small plastic piece that allows you to prepare a perfect alignment for drilling dowel holes on the edge of an 18 mm thick board.
I have also added everything you need to install 20 mm diameter fittings for Ikea-style assembly, such as these: https://www.leroymerlin.fr/produits/lot-de-8-ferrures-89329-hettich-67557035.html


----------



Il s'agit d'une petite pièce en plastique permettant de préparer un alignement parfait pour percer les trous de tourillons sur la tranche d'une planche de 18 d'épaisseur.
J'ai ajouté également de quoi installer des ferrures de diamètre 20 pour un assemblage façon Ikea telles que celles ci : https://www.leroymerlin.fr/produits/lot-de-8-ferrures-89329-hettich-67557035.html
