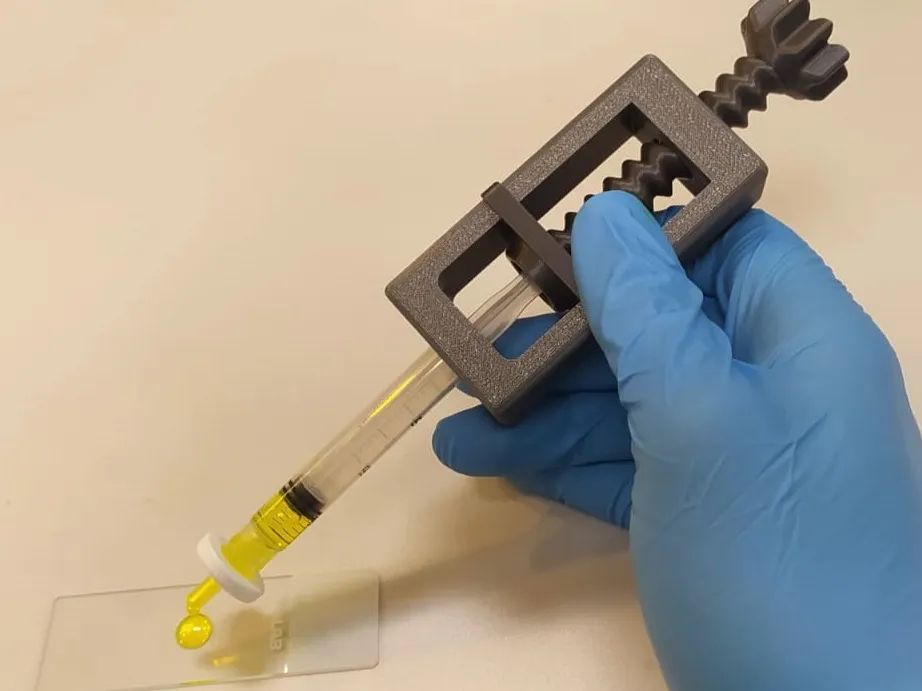

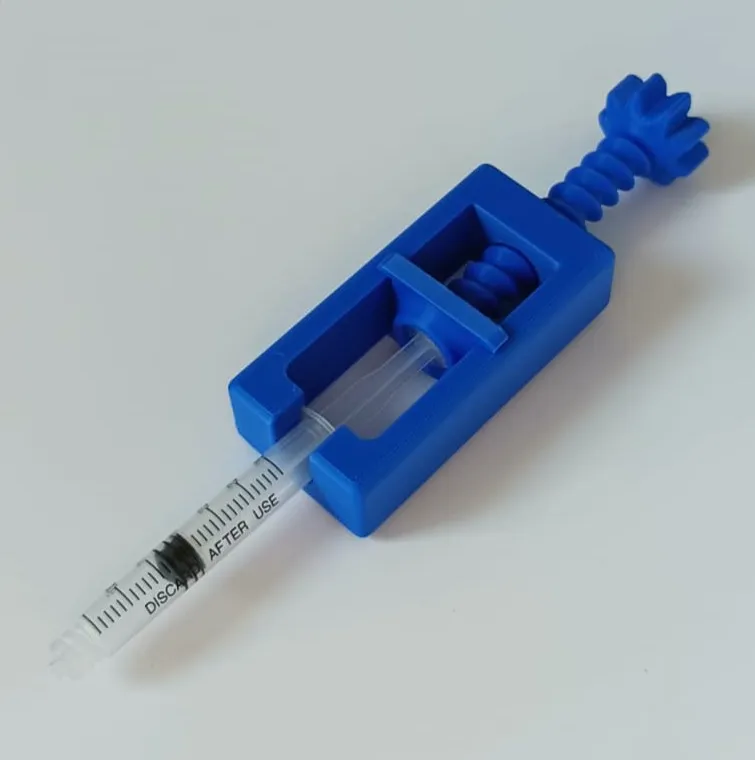

This tool is a squeezer i use to force a viscous fluid through a syringe filter.
In the off chance that like me, you need to filter a syrup like fluid through a syringe filter, you will find it much easier to do with this than by hand...
Load the syringe and add some air to serve as a spring, put the syringe in the system and add the filter. Screw on the device and you can just patiently wait for the liquid to filter through.
Compatible with most 1 to 3 ml syringes. Only use syringe with a screw retention system if you don't want the filter to pop off inadvertently...
This design uses 1 M3 screw (10 to 20mm) to fix the head to the screw. I added the STEP file i case you want to modify the design.

Edit: I modified the "main body" part a little to be able to load the syringe with the filter attached. The corresponding file is "main body V2"

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(9)

  • model file image
    Head.3mfDesigner

    1.54 MB

    2025-12-06

  • model file image
    Head.STLDesigner

    231.14 KB

    2025-12-06

  • model file image
    Main_body.STLDesigner

    530.06 KB

    2025-12-06

  • model file image
    Main_body_V1.STEPDesigner

    796.53 KB

    2025-12-06

  • Main_body_V2.STEPDesigner

    830.29 KB

    2025-12-06

  • model file image
    Main_body_V2.STLDesigner

    698.62 KB

    2025-12-06

  • model file image
    Pusher.STEPDesigner

    177.16 KB

    2025-12-06

  • Screw.STEPDesigner

    6.20 MB

    2025-12-06

  • model file image
    Screw.STLDesigner

    2.74 MB

    2025-12-06

  • View all(9)
