Summary

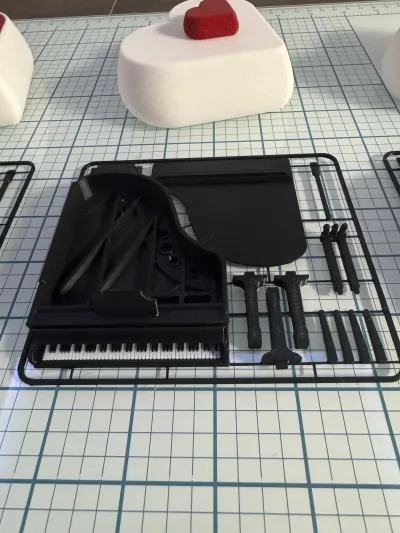

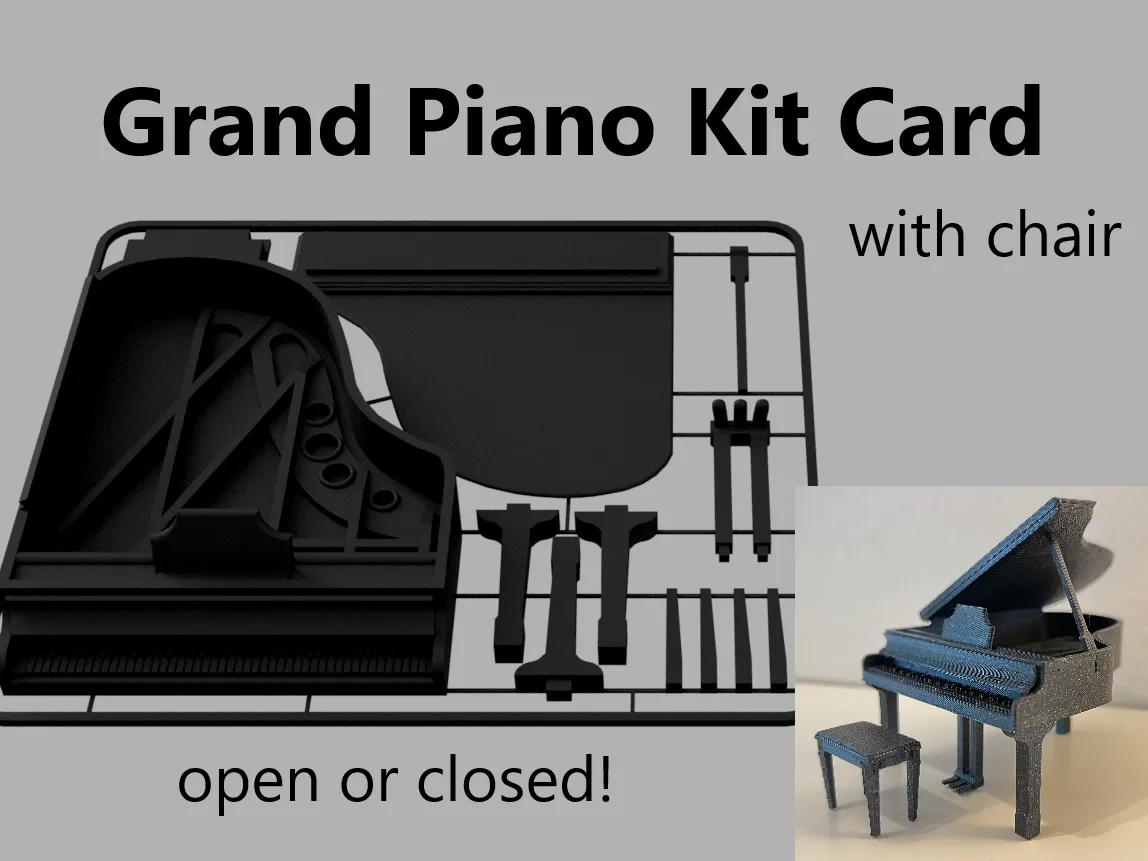

This is a 1:24 scale model of a grand piano with chair in a kit / gift card style. Some characteristic details can be discovered. Even the keys are recognizable!
After printing, the model can be assembled with the help of integrated connectors.

Print
Print with 0.16 layer hight or lower to bring up the details.
No supports are needed.
Use 3 perimeters and 15% - 20% infill.
I printed at 0.38mm line width with a 0.4mm nozzle.

Post processing
The small struts can be removed really quickly and cleanly using a side cutter.

Assembly
The kit is easy to assemble. All parts fit together very well.
If a part should be loose, superglue can be used.
Note: The 4 chair legs must be glued together.

Dimensions

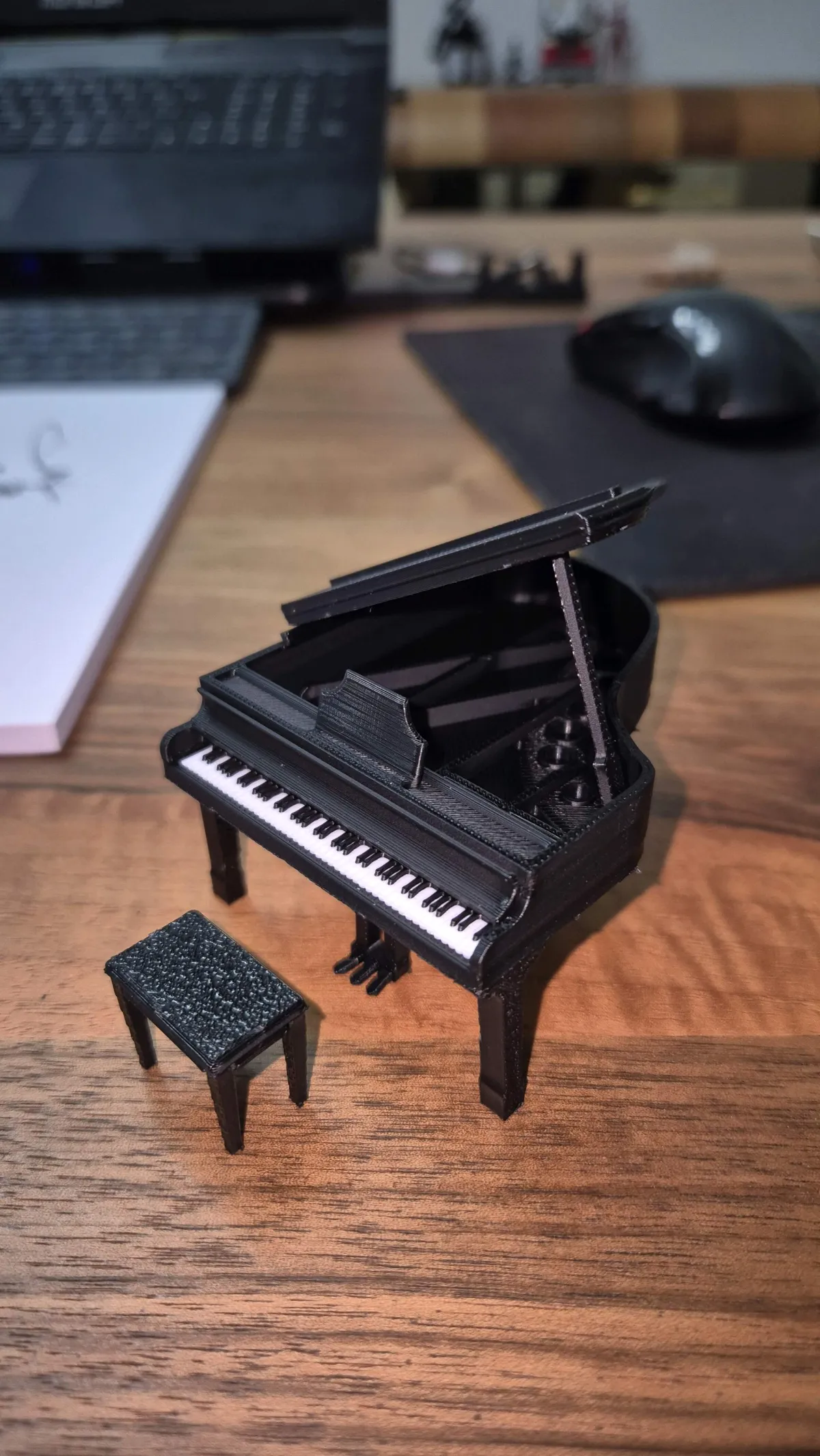

The assembled piano has the following dimensions
Height: 76mm (open)
Depth: 83mm
Width: 64mm

The complete kit card has the following dimensions when printed
Height: 23mm
Depth: 110mm
Width: 124mm
Scaling will work in a low range due to the tolerances.

Other models
I will also try to publish other kit cards. Stay tuned!

I hope you had as much fun printing and assembling it as I did :-)

Do you like my work? I would be very happy if you would support my work on Ko-fi.

Differences of the remix compared to the original

• model disassembled into individual parts and arranged
• connectors added
• edited for better printing
• connected in kit card style and framed
