fume extractor
solder

14
0

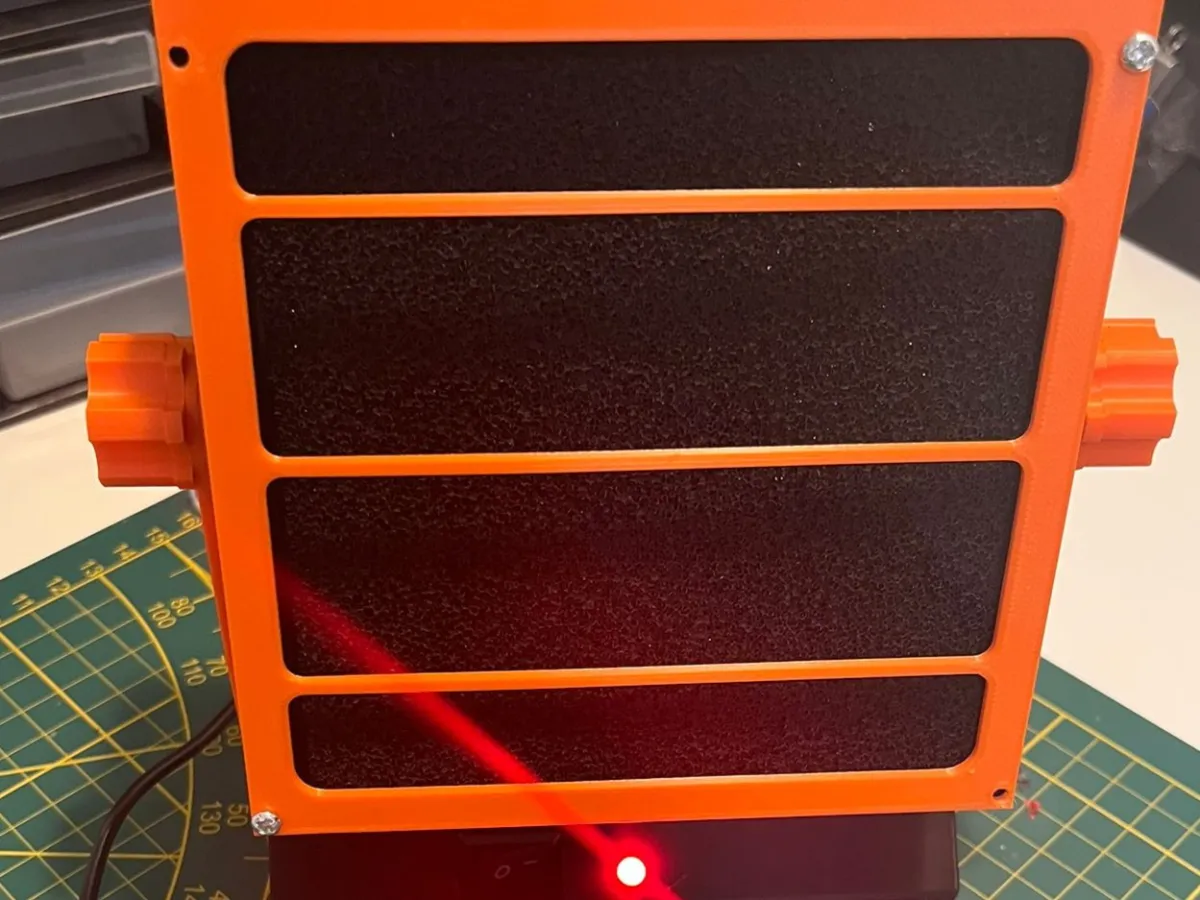

It's an adjustable soldering fume extractor. It incorporates a tray for using a carbon filter to filter the fumes before extracting them.

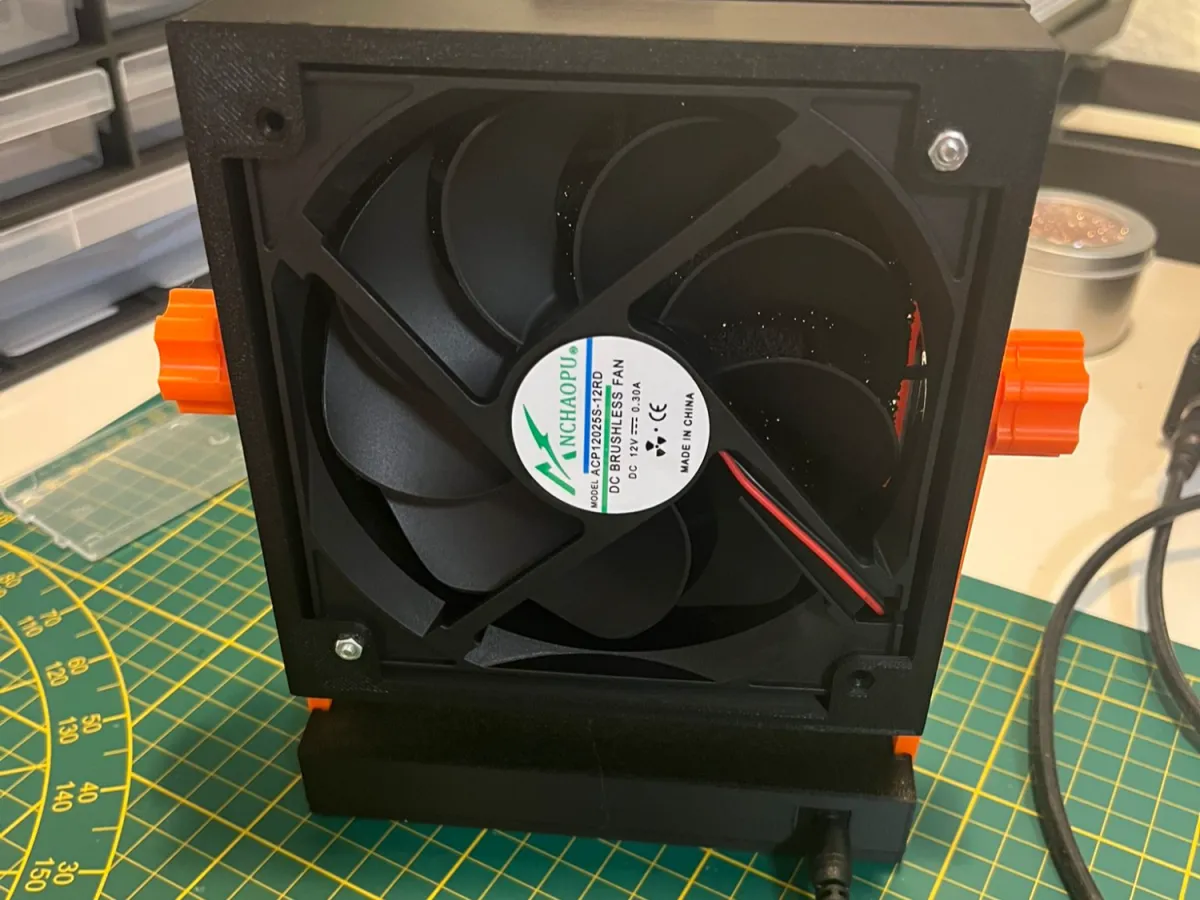

It should work with any 120 x 120mm fan, and it has been modeled to use:
- this switch: https://de.aliexpress.com/item/32873386670.html?spm=a2g0o.productlist.main.7.4d2dIUzDIUzD7v&algo_pvid=f2b112b6-73a0-4115-9c29-7311b29dd5d0&pdp_ext_f=%7B%22order%22%3A%223213%22%2C%22eval%22%3A%221%22%2C%22fromPage%22%3A%22search%22%7D&utparam-url=scene%3Asearch%7Cquery_from%3A%7Cx_object_id%3A32873386670%7C_p_origin_prod%3A
- this dc barrel jack: https://de.aliexpress.com/item/4001206395694.html?spm=a2g0o.productlist.main.1.590f2932UoVpHc&algo_pvid=22f59de7-e2c7-4453-a98c-b47065e16415&pdp_ext_f=%7B%22order%22%3A%221091%22%2C%22eval%22%3A%221%22%2C%22fromPage%22%3A%22search%22%7D&utparam-url=scene%3Asearch%7Cquery_from%3A%7Cx_object_id%3A4001206395694%7C_p_origin_prod%3A
- and a common 5mm led
You will also need a couple of M3 screws and nuts for the assembly. I used 6mm long screws for the base and the front grill. To attach the knobs i used 20mm long. And to attach the fan i used 30mm long screws.
You only need nuts for attaching the fan, the other mating connectors are already modelled in.
Everything is printed on PLA and you should not need supports.
Bill of materials
- NameQuantityNotes
- 1M3x8mm Screws8
- 2M3x35mm Screws6
- 3M3 Nuts14
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Models(8)
Fume_Extractor_Base_Bottom.3mfDesigner60.33 KB
2025-11-25
Fume_Extractor_Base_v3.3mfDesigner112.23 KB
2025-11-25
Fume_Extractor_Fan_Case_v2.3mfDesigner49.84 KB
2025-11-25
Fume_Extractor_Filter_Compartiment.3mfDesigner46.84 KB
2025-11-25
Fume_Extractor_Front_Grill.3mfDesigner135.36 KB
2025-11-25
Fume_Extractor_Knob.3mfDesigner2.77 MB
2025-11-25
Fume_Extractor_Left_Leg.3mfDesigner13.23 KB
2025-11-25
Fume_Extractor_Right_Leg.3mfDesigner12.65 KB
2025-11-25
View all(8)
