  • Gimbal with Servo Actuator

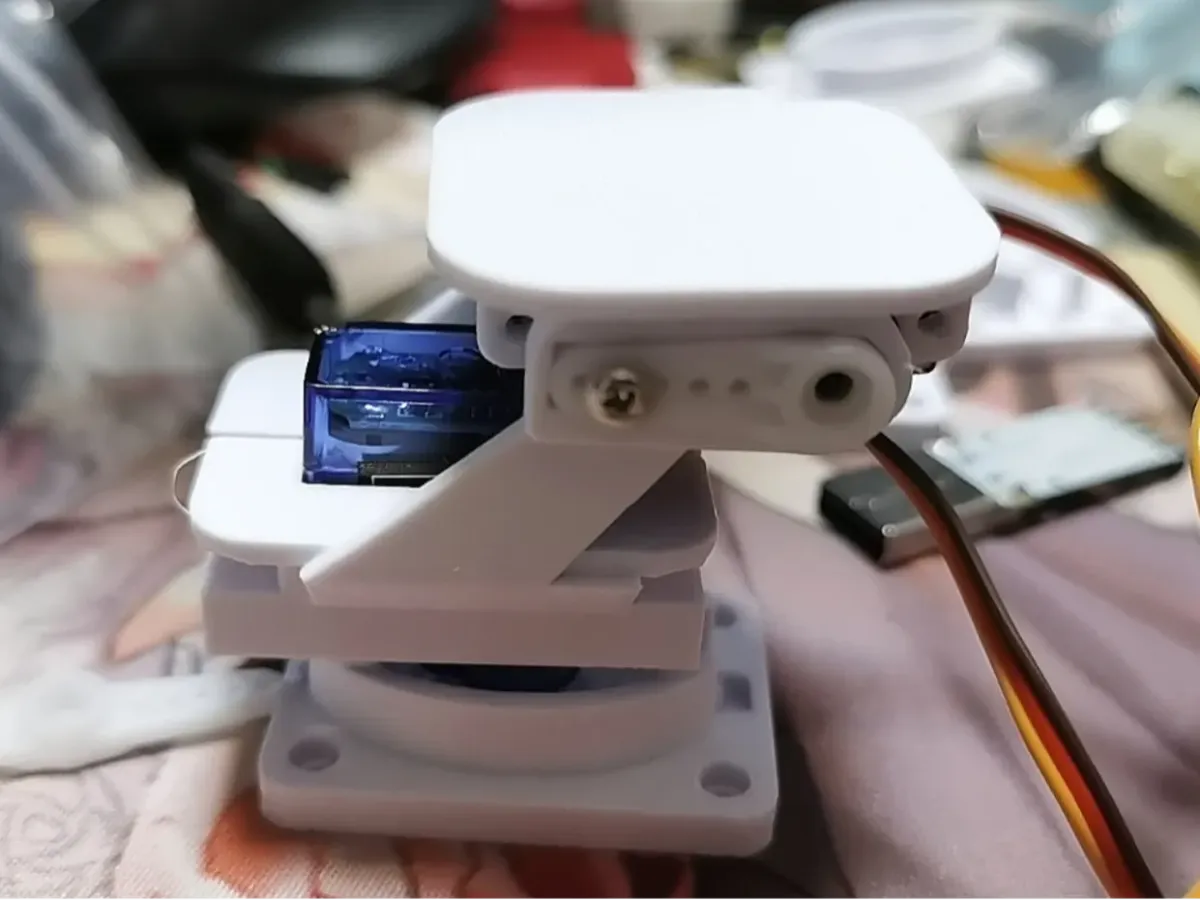

SG90 Servo Gimbal – Optimized Version
Print Profile(1)
  • 0.2 mm layer height, 2‑wall walls, 15% infill density

    1-disc

    PLA

    Designer

1

3

49

9

Released 2025-11-13
Details
Files(1)
Makes & Comments (0)

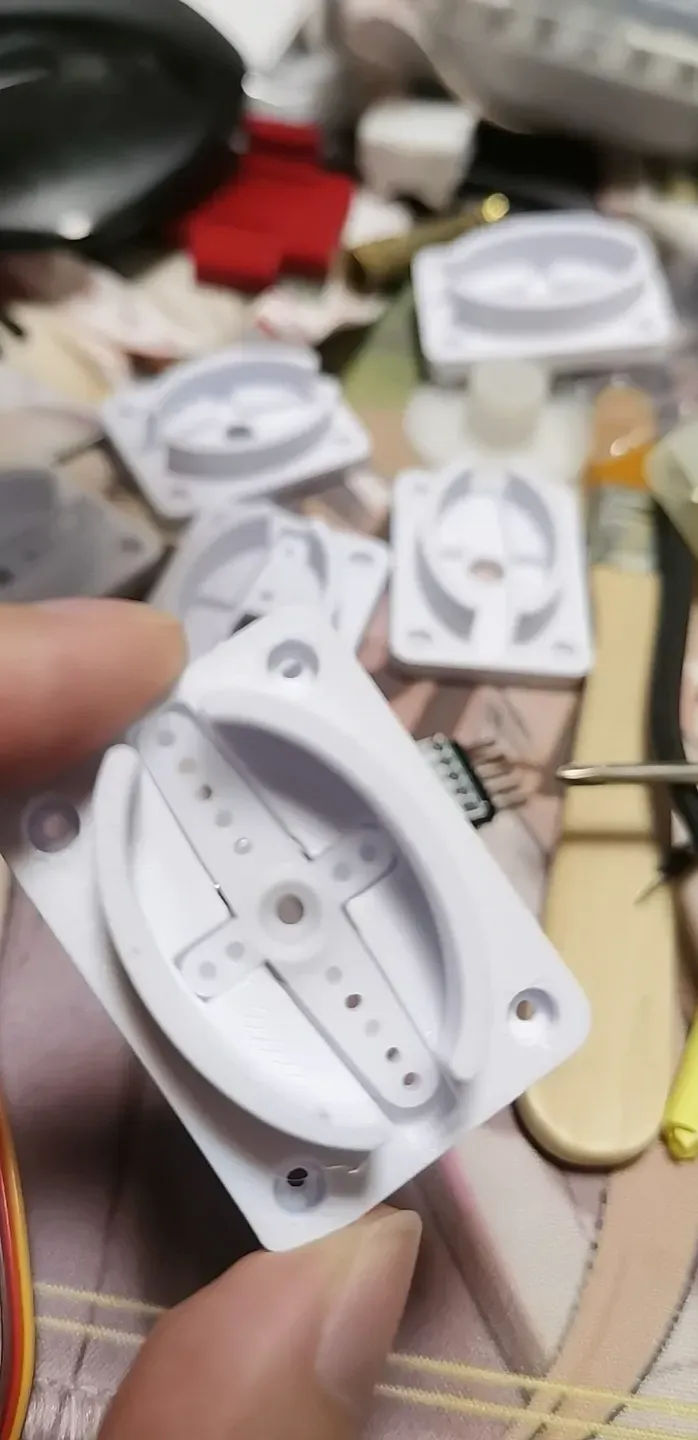

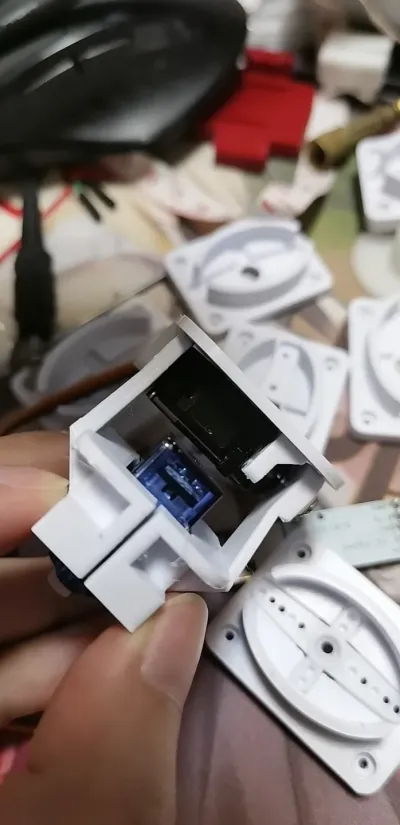

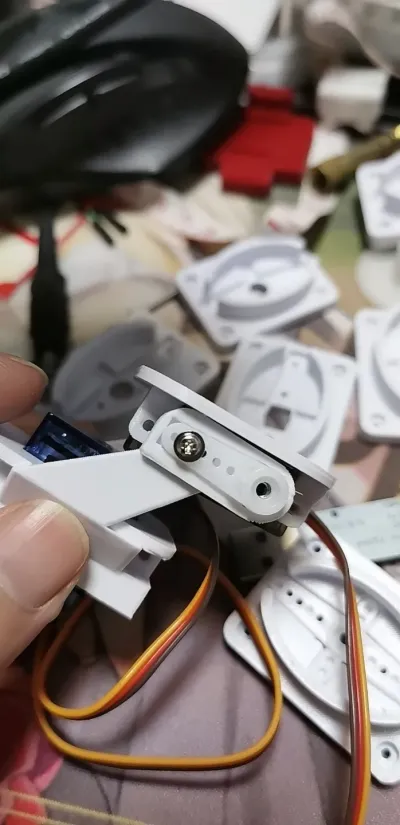

The original model’s dimensions didn’t match the SG90 servo in my hand, and it lacked mounting holes. After several iterations of fine‑tuning, the final design perfectly aligns with the servo’s plastic arm while incorporating precisely sized holes for secure screw fastening—give it a try!

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    SG90舵机
    2

Originality of the Model

The author declares that this work is their personally remixed model

Adaptation source:https://www.thingiverse.com/thing:2892903

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Models(1)

  • model file image
    SG90舵机云台优化版-elegoo.3mfDesigner

    541.48 KB

    2025-11-13
