12 cm Case Fan
Fan Mount
- 0.2mm layer, 2 walls, 15% infill
8-disc
PLA
Designer
29
4

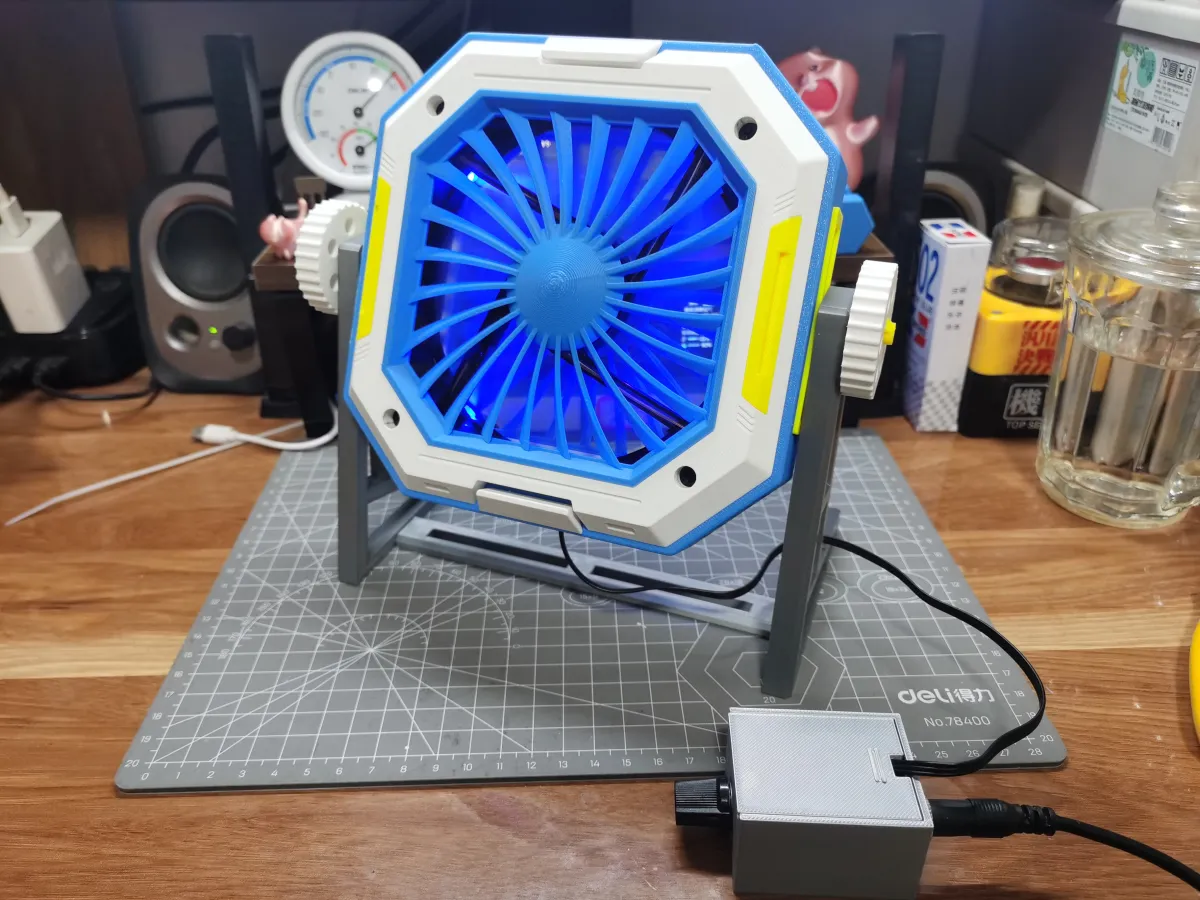

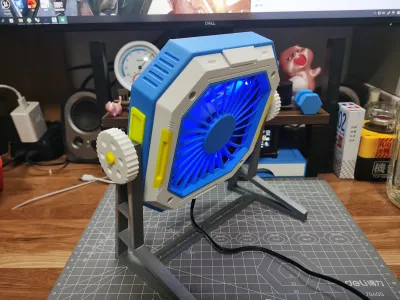

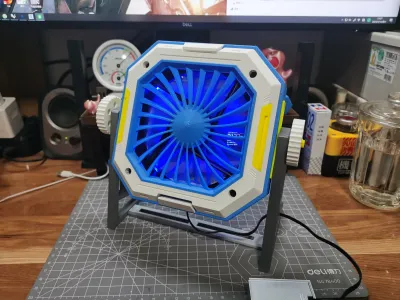

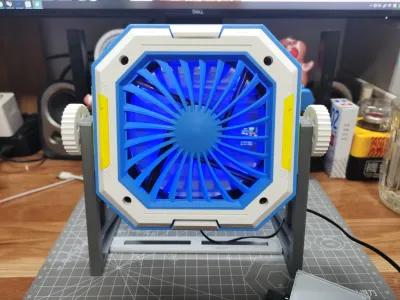

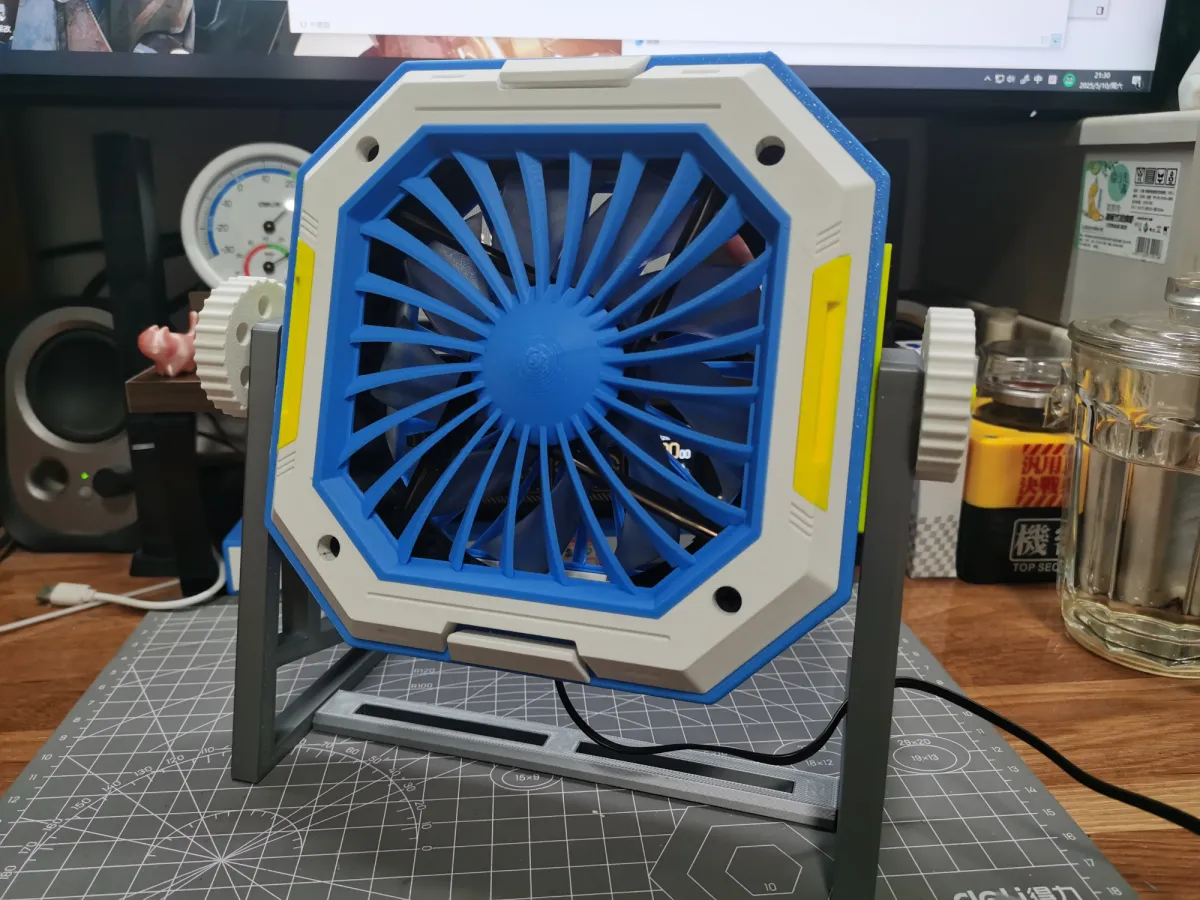

This kit is designed to convert a 12 cm case fan into a desktop fan. We recommend using a high‑speed fan capable of 3,300 RPM or higher—standard case fans often lack the necessary airflow.
Required Accessories:
One high‑speed 12 V case fan,
Eight #6–32 UNC screws (standard case fan mounting screws),
Adhesive,
One 220 V to 12 V variable-speed power supply.
Important Notes:
When printing the “Front and Rear Air Ducts” in the second print job, be aware that these parts are prone to printing failures. To address this, enable raft support and set the layer count to 2; while this will slightly increase post‑print removal time, it ensures successful prints.
For the mounting pins, only secure them at the top and bottom—do not install them on the left or right sides.
Bill of materials
- NameQuantityNotes
- 1#6-32UNC螺丝8
- 2220v转12v调速电源1
- 312cm机箱风扇1
Originality of the Model
The author declares that this work is their personally original model
