Summary

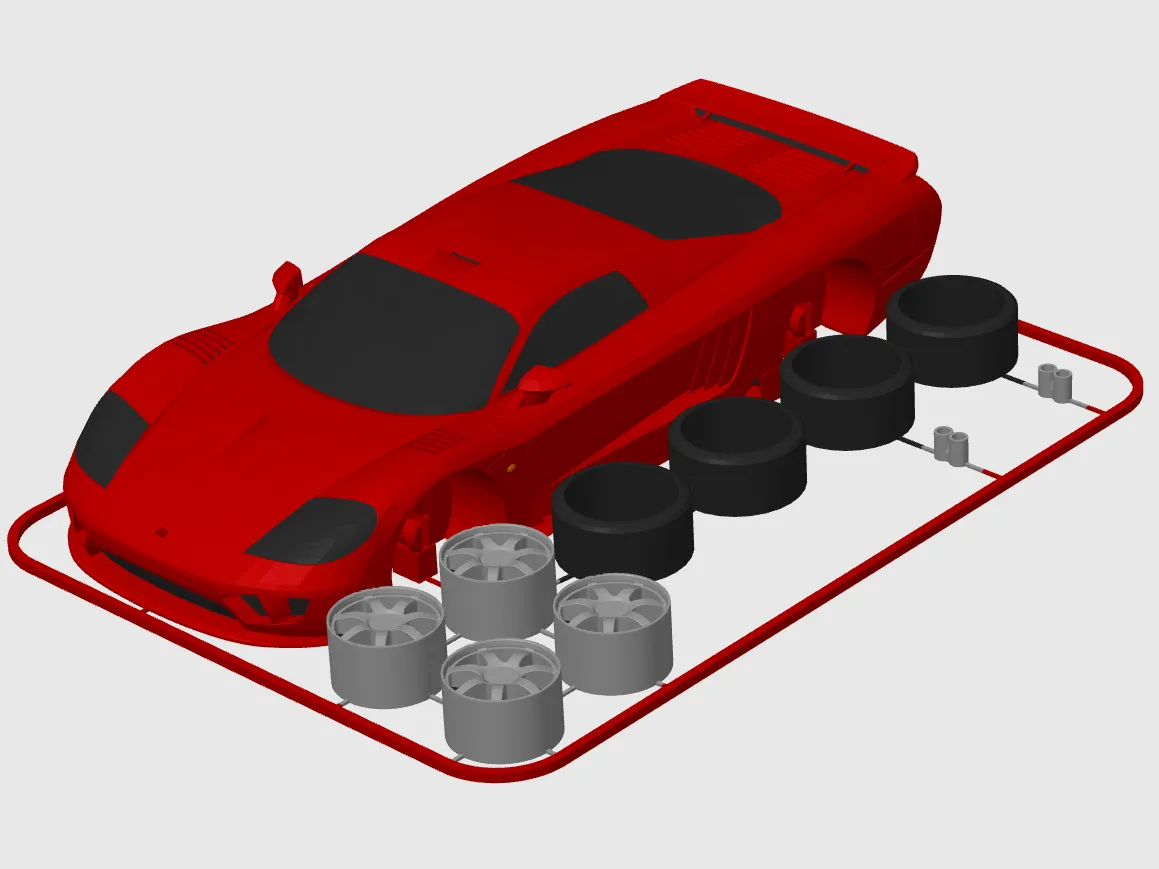

This is a model of a Saleen S7 Twin Turbo in a kit card style. Some characteristic details can be discovered. Equipped with seperate exhausts ;-)
After printing, the model can be assembled with the help of integrated connectors.
The wheels can be turned, but the car will not roll.

Versions

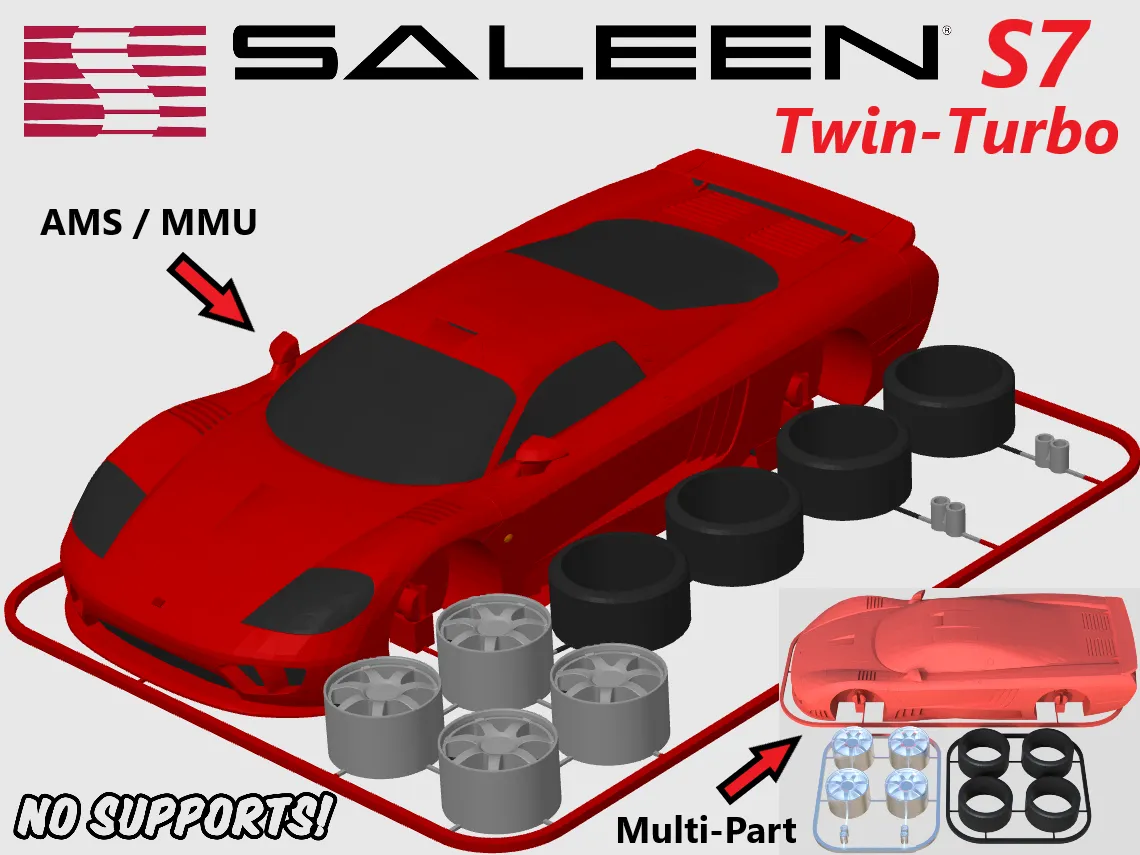

The complete set is available in a STL file for a one-color print.
There is a 3MF-file with predefined colors intended for users of AMS or MMU.
Otherwise, the chassis, tires and rims&exhaust must be printed separately.

Print
Print with 0.12 layer hight or lower to bring up the details.
No supports are needed.
Use 2 perimeters and 15% infill.

Post processing
The small struts can be removed really quickly and cleanly using a side cutter.
Please remove the predesigned supports carefully under front axle and rear axle.

Assembly
The kit is easy to assemble. All parts fit together very well.
Use some grease for the hole in the rim so that the wheel turns more easily.
If a part should be loose, superglue can be used.

Dimensions at 100% scale (1:24)
The fully assembled model has the following dimensions
Height: 46mm
Depth: 199mm
Width: 83mm (including side mirrors)

The complete kit card has the following dimensions when printed
Height: 41.5mm
Depth: 204
Width: 146mm

Scaling will work in a low range due to the tolerances.

Other models
I will also try to publish other car models. Stay tuned!

I hope you had as much fun printing and assembling it as I did :-)

Get more information about this amazing car here.

Do you like my work? I would be very happy if you would support my work on Ko-fi.

Differences of the remix compared to the original

• scaled up
• designed new exhausts
• simplified model
• model disassembled into individual parts and arranged
• connectors added
• connected in kit card style and framed
• painted for AMS / MMU
