4s step up converter box (type C)
Print Profile(1)
- 0.2mm layer, 2 walls, 10% infill
'%20fill='%23B3B3B3'/%3e%3crect%20id='Rectangle%201051'%20x='8'%20y='2'%20width='12'%20height='0.5'%20transform='rotate(90%208%202)'%20fill='%23D9D9D9'/%3e%3crect%20id='Rectangle%201052'%20x='11'%20y='2'%20width='12'%20height='0.5'%20transform='rotate(90%2011%202)'%20fill='%23B3B3B3'/%3e%3cpath%20id='Rectangle%201048'%20d='M2%202H14V14H11L10.5%2014.5H8H5.5L5%2014H2V2Z'%20stroke='%23828282'%20stroke-linejoin='round'/%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
1-disc
PLA
Designer
7
1
Released 2025-08-21

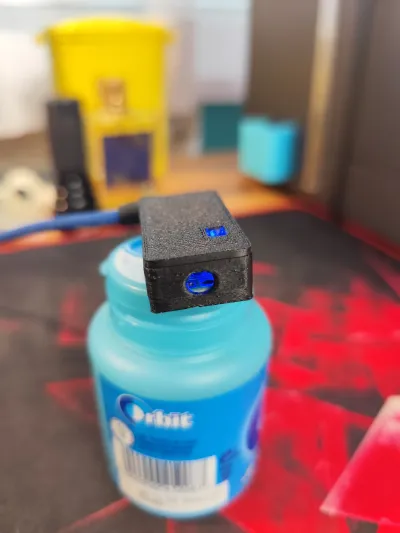

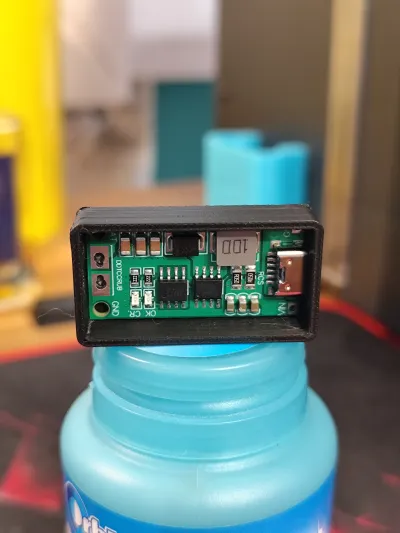

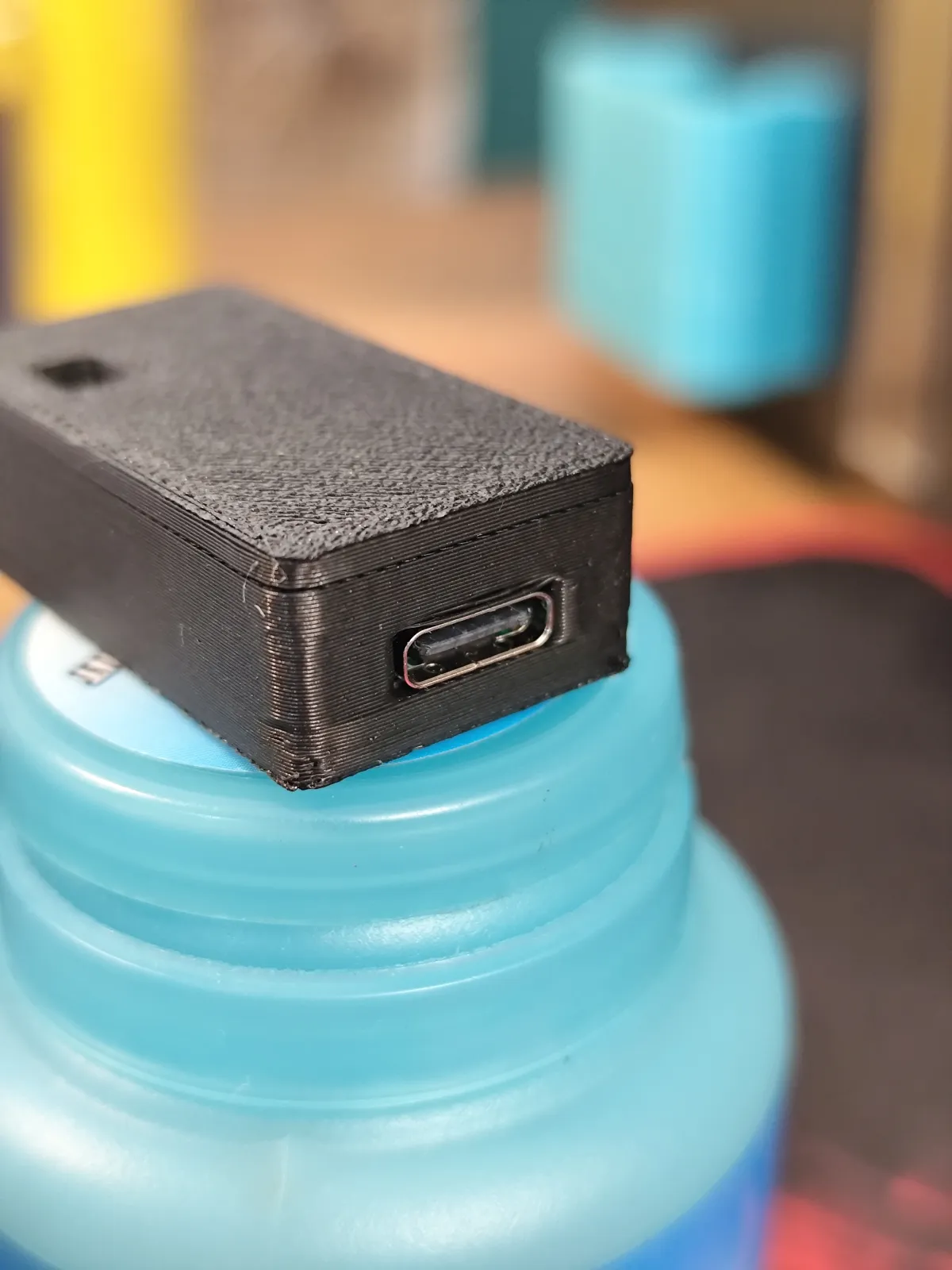

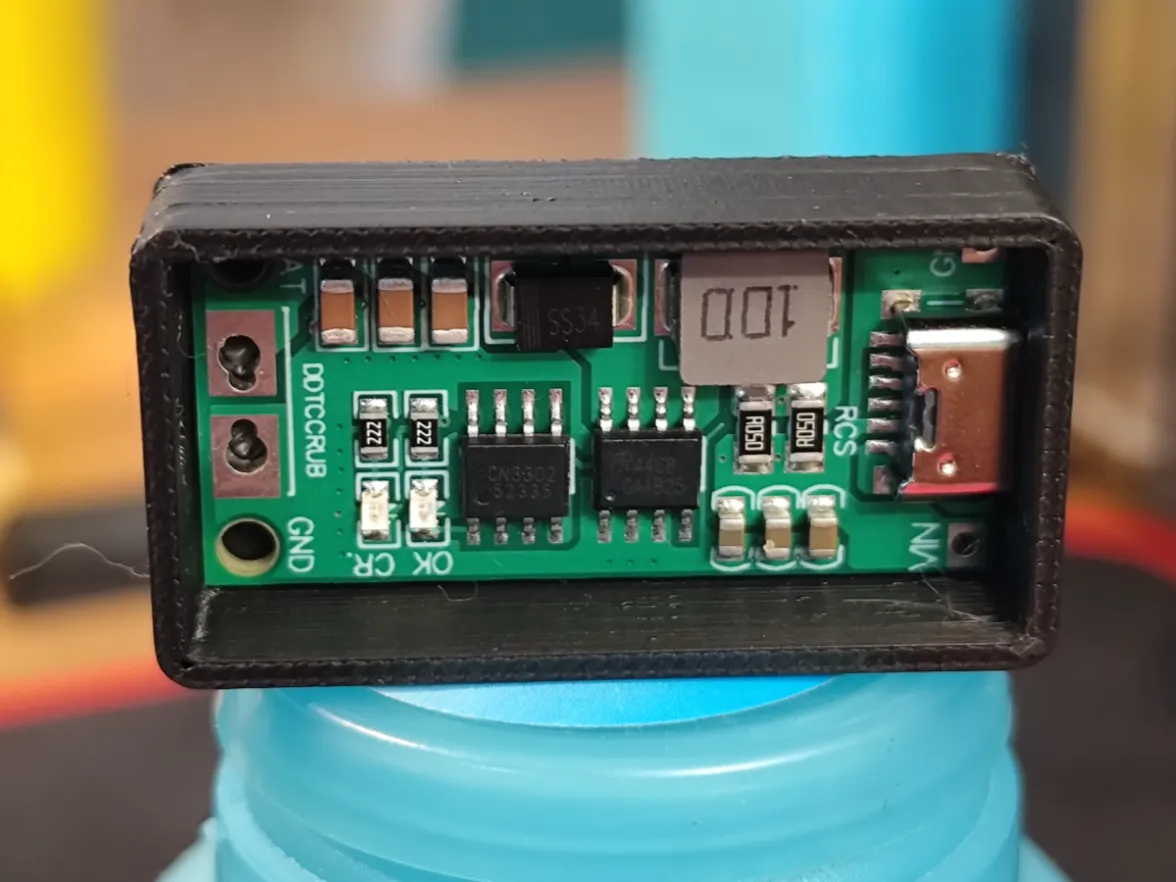

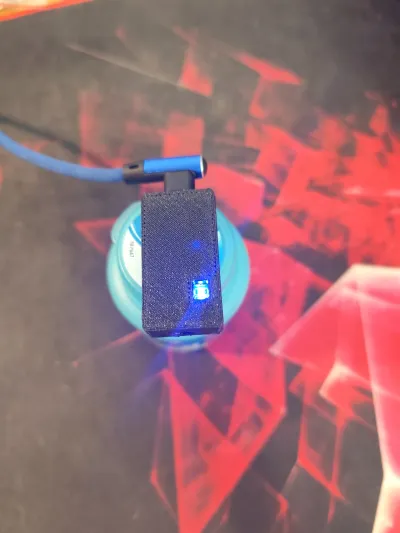

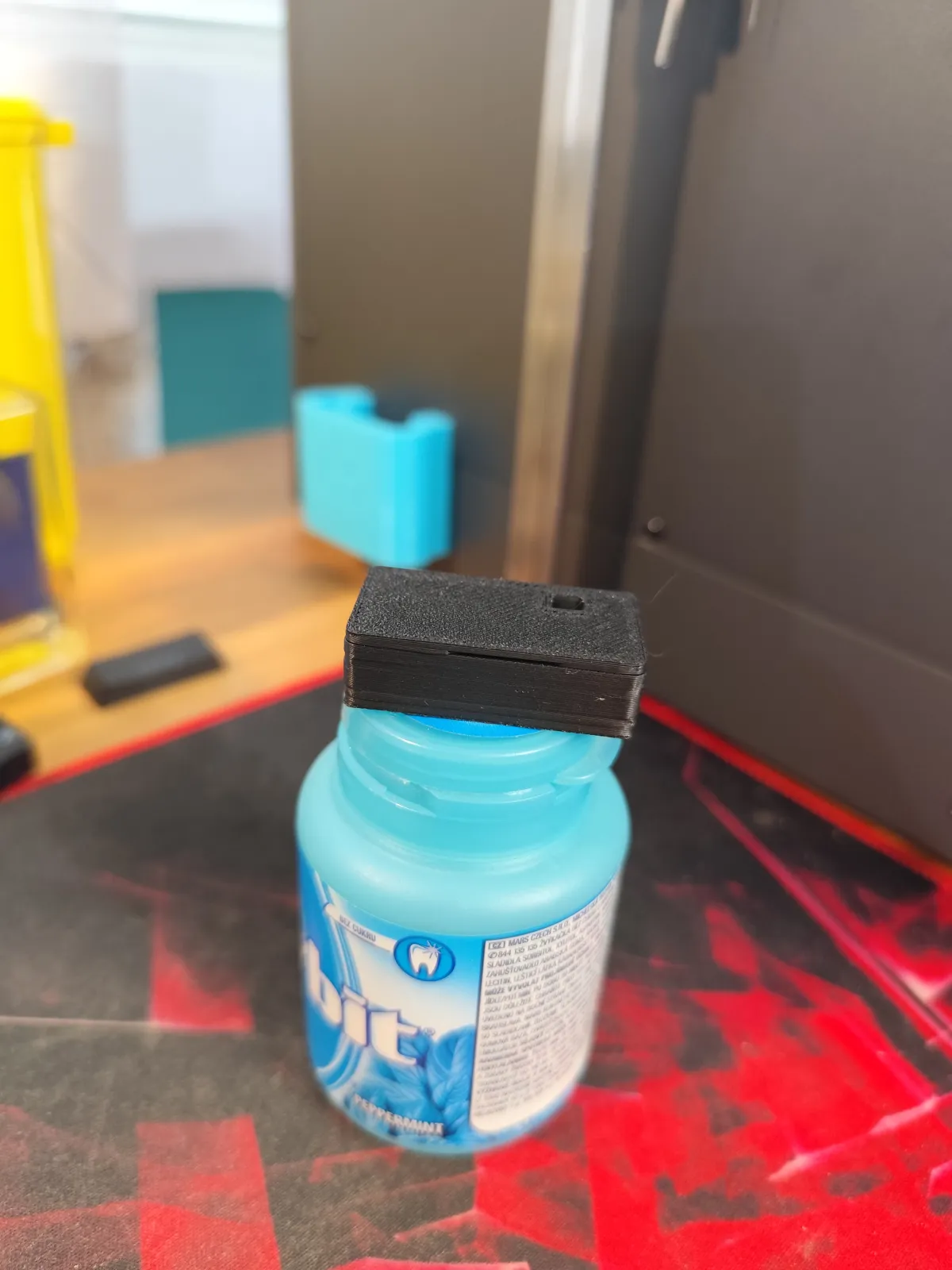

Snap fit box for step-up converter with led, wire holes and a slit for opening. Tight fit, scaling not recommended but should be possible. Printed with a nobrand black pla+.

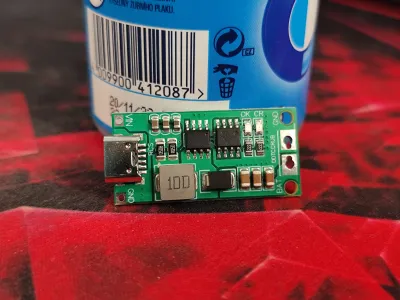

Multi cell 2s 3s 4s Type-C to 8.4v 12.6v 16.8v Step-up boost. Polymer Li-Ion charger 7.4v 11.1v 14.8v 18650 Lithium Battery.
Bill of materials
- NameQuantityNotes
- 1Step-up converter1
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Models(1)
- 4s step up converter type c box.3mfDesigner
