Instructions on how to install this can be found on the original page.

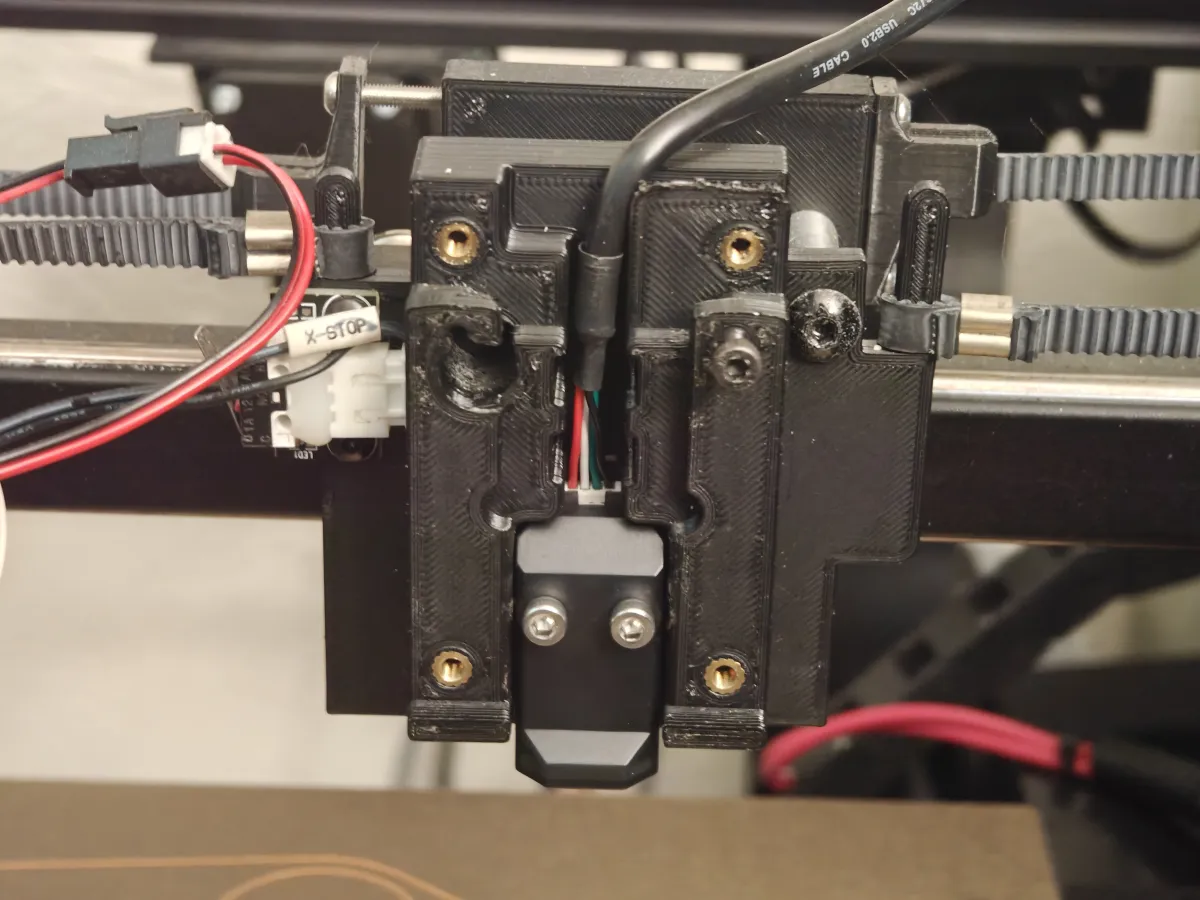

Modified to allow mounting with the stock carriage screws, as well as to provide room for the endstop cable. Also modified the heatset slots where the sensor mounts (holes were slightly too big, heatsets would fall out) and added a through-hole to accommodate the soldering iron tip. I would recommend printing it out of ABS if possible, although since it's not right up against the heater, it should work in PETG in a pinch.

You shouldn't require any hardware other than what's outlined in the SB BOM and what's included with the X5SA.

I would like to congratulate the original creator for designing a carriage mount that didn't have the extruder backplate baked in (which inhibits the modularity that the Stealthburner was designed around).

I recommend using the endstop design here to move the y-stop to the back left and allow you to compensate for the lost bed area in software.

Print Settings

Printer Brand:

Prusa

Printer:

Prusa Mini

Rafts:

No

Supports:

No

Resolution:

0.2mm

Infill:

40% Gyroid

Filament: Overture PETG Black

Notes:

Printed on a FYSETC Prusa Mini clone
