4x5 macro pad v3 - NICE!NANO version
Print Profile(0)

  • Earn points by adding print configurations

2

2

19

0

Released 2025-08-21
Details
Files(4)
Makes & Comments (0)

Hello people!

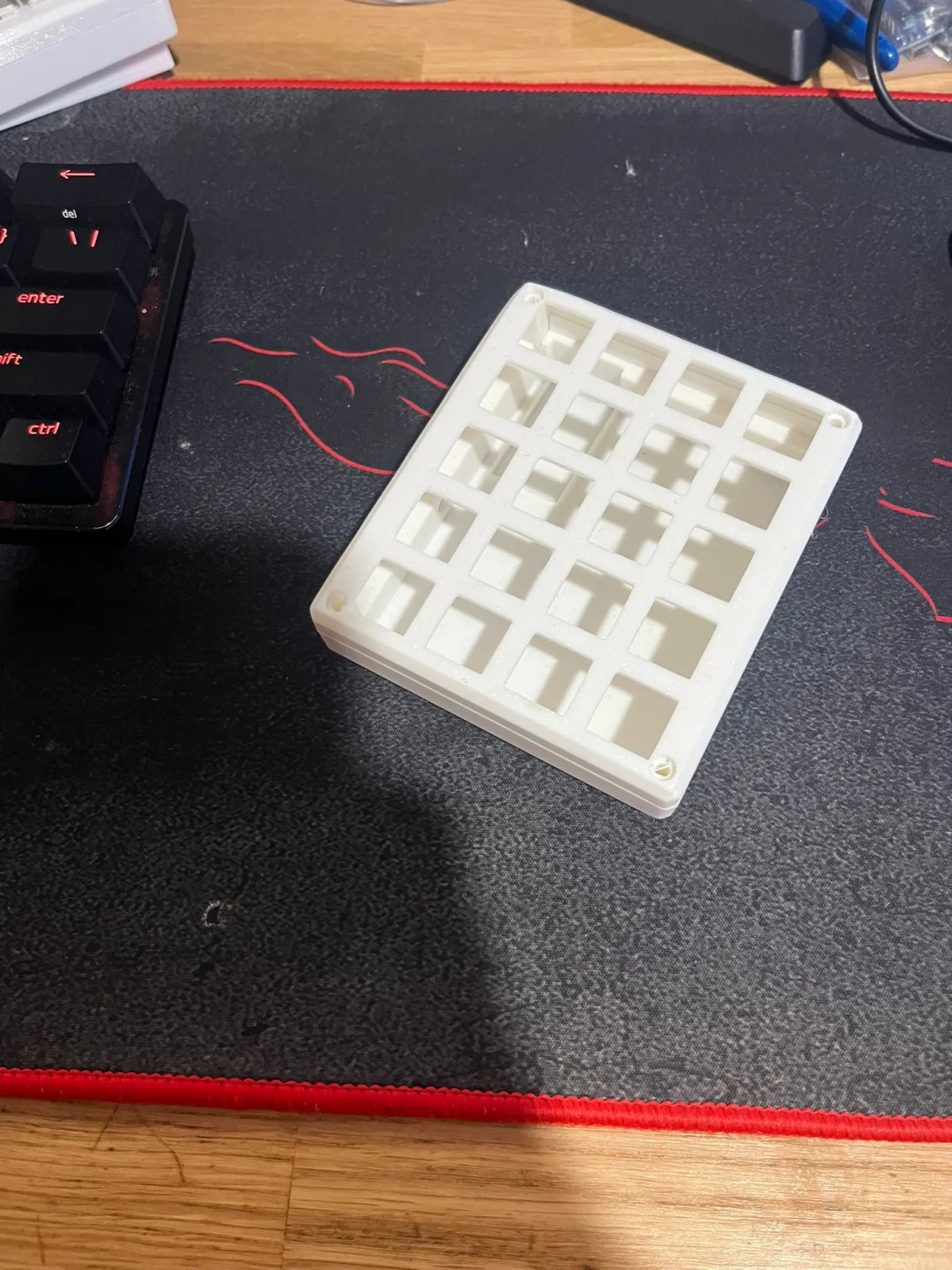

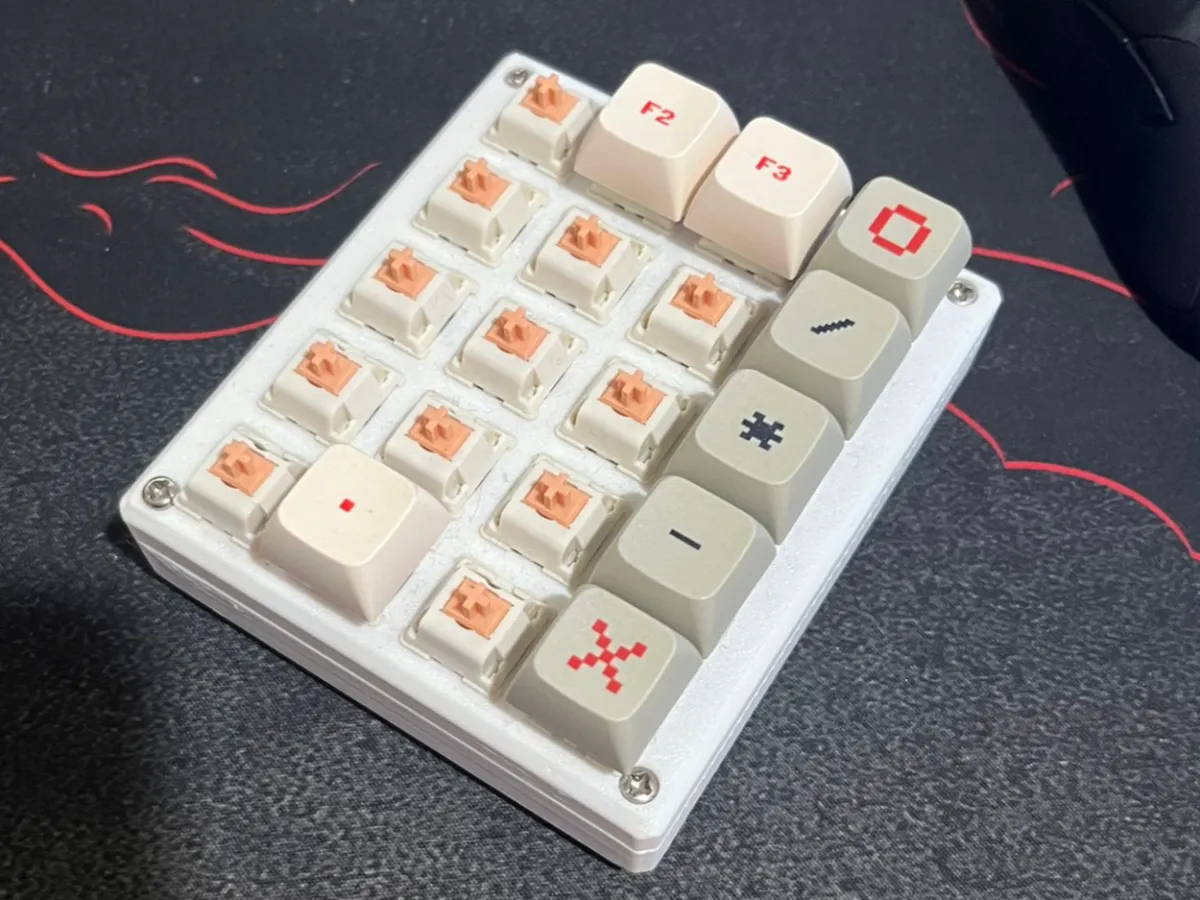

so i wanted a macropad that can be easily hand- wired, have a slope- shape and somthing that has a m3 screws (thats what i had at the time), so i built this!


B.O.M:

   4*m3 16mm screws

   nice!nano controller

   20 keyboard switches

   couple of wires

   1 generic button



ASSEMBLY:

   1) wire the plate

   3) glue the button and the microcontroller to the base

   4) wire everything together

   5) screw the plate and base together



you can controll this with a zmk and qmk



Bill of materials

  • Name
    Quantity
    Notes
  • 1
    m3 16mm screws
    4
  • 2
    nice!nano controller
    1
  • 3
    keyboard switches
    20
  • 4
    wires
    40
    yeah i dont know how much you need
  • 5
    generic button
    1

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

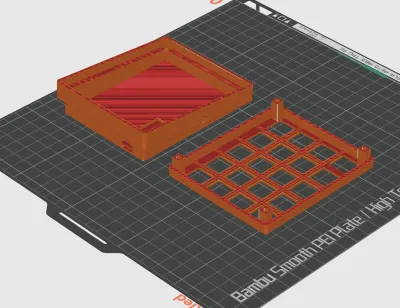

Models(4)

  • model file image
    4x5 macro pad v3 - plate stl.stlDesigner

    1.35 MB

    2025-08-19

  • model file image
    4x5 macro pad v3 - base stl.stlDesigner

    1.04 MB

    2025-08-19

  • 4x5 macro pad v3 - plate.stepDesigner

    307.11 KB

    2025-08-19

  • 4x5 macro pad v3 - base.stepDesigner

    166.64 KB

    2025-08-19
