Summary

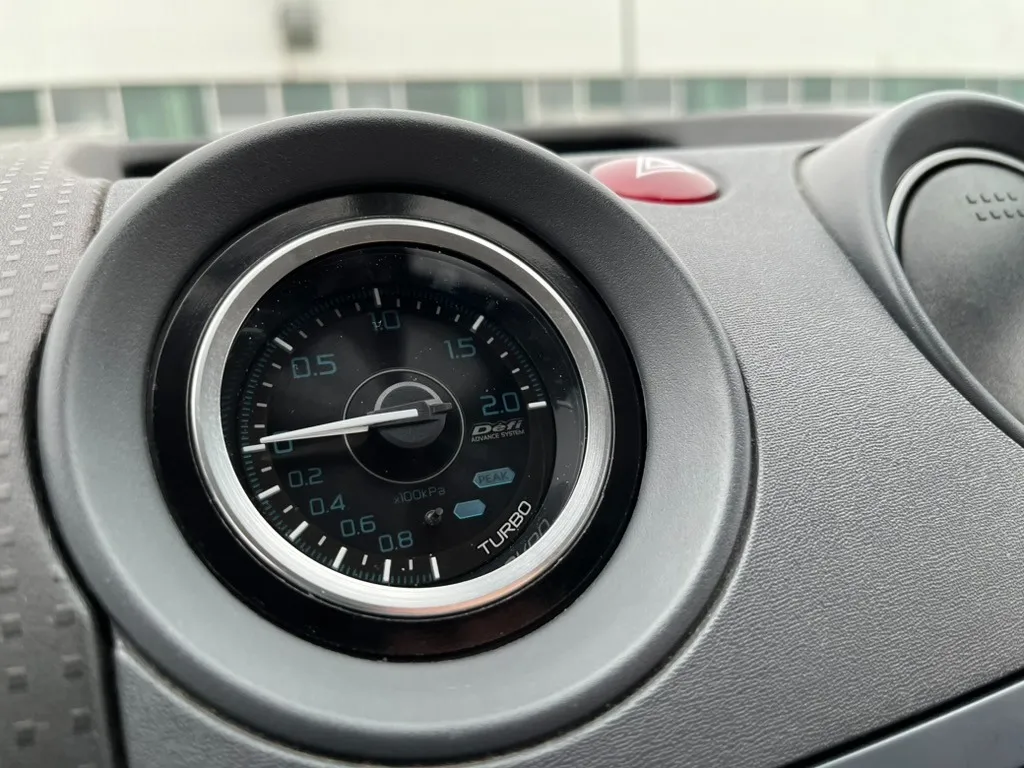

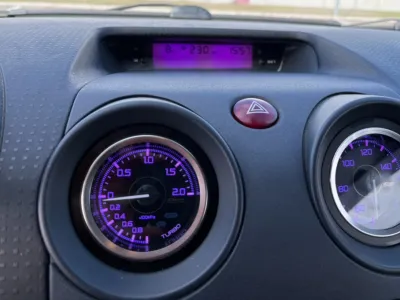

60mm gauge adapter for vent installation on Mitsubishi Colt Z30 series (CZ3, CZT, CZC, etc).
Print in ABS or ASA
20% Infill
3 outer walls / perimeters
supports are needed
Installation
- Remove the ventilation unit
- Remove the ventilation grilles
- Remove the silver ring
- Route the cables for your gauge
- Install the gauge in the printed adapter and fix it with 3 screws
- Guide the cables through from behind
- Install the gauge incl. adapter
- Install the ventilation unit
