Drop Latch
Print Profile(2)
  • 0.2mm layer, 3 walls, 15% infill

    1-disc

    PLA

    Designer
  • 0.2mm layer, 3 walls, 15% infill

    1-disc

    PLA

    Designer

0

0

1

0

Released 2026-06-11
Details
Files(2)
Makes & Comments (0)

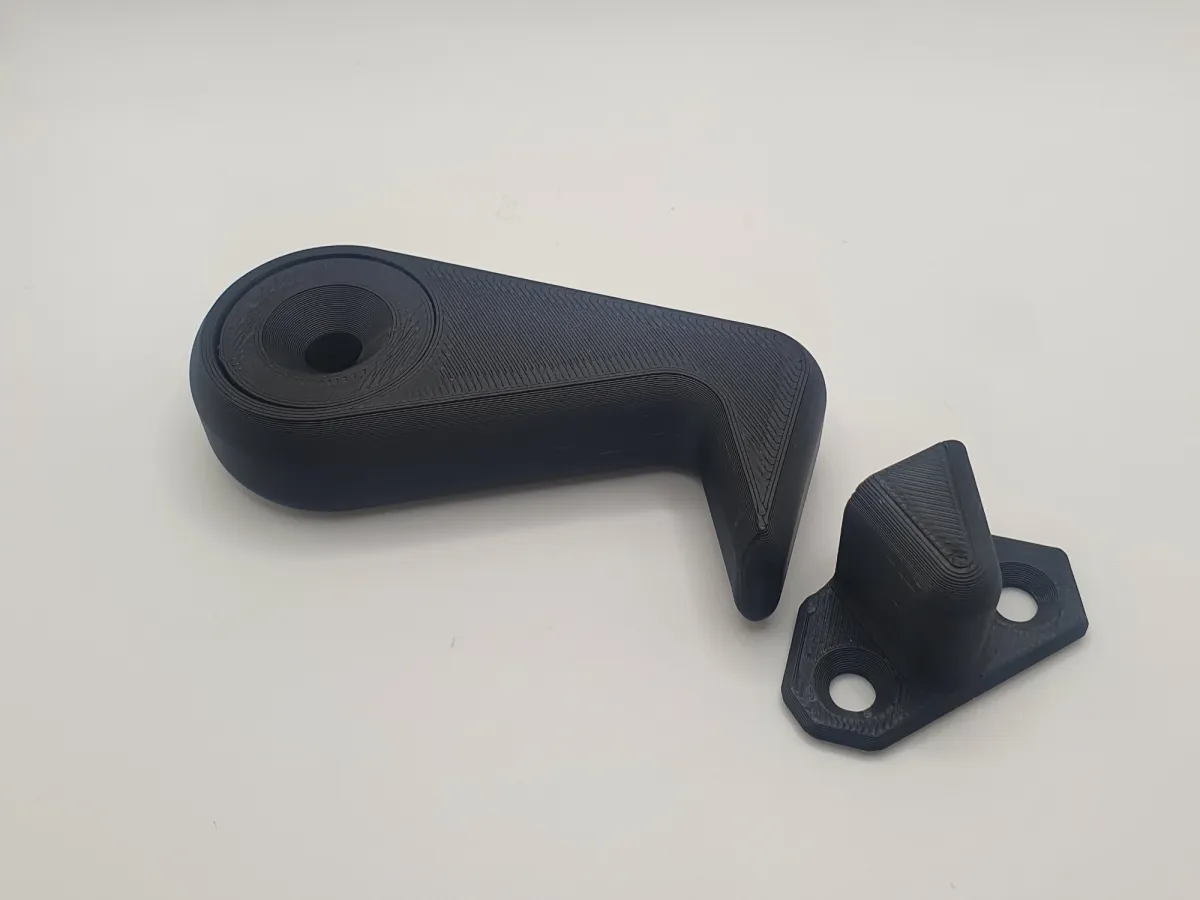

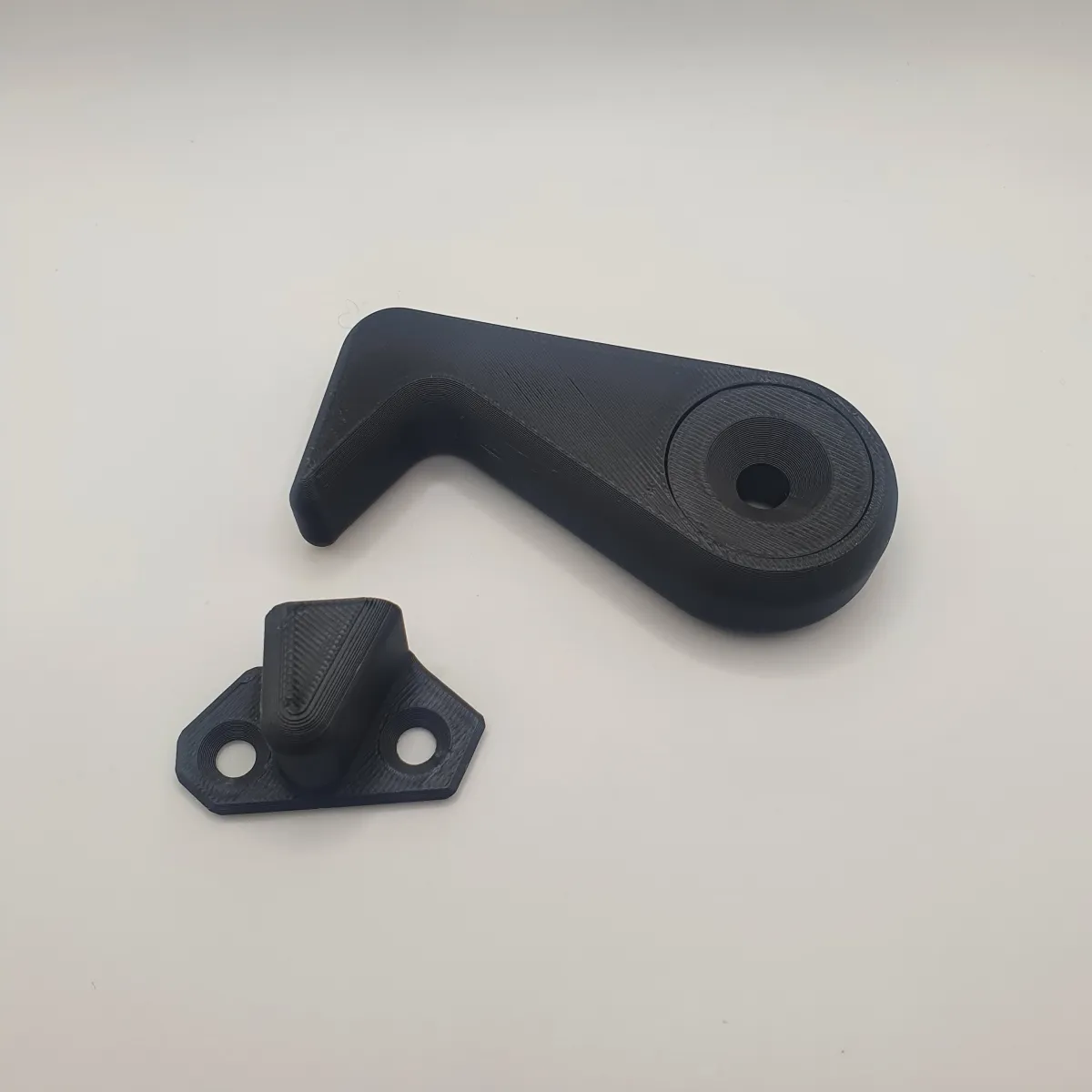

A unique drop-latch. The lock rotates around a central hinge.



The center of the hinge is designed to be screwed into door with an M8 wood screw.



After drop-latch is attached to door, use it to correctly place the catch and screw it into door frame.





Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M8 Wood Screws
    3

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.

Models(2)

  • model file image
    Drop Latch - Left.3mfDesigner

    923.26 KB

    2026-06-10

  • model file image
    Drop Latch - Right.3mfDesigner

    920.41 KB

    2026-06-10
