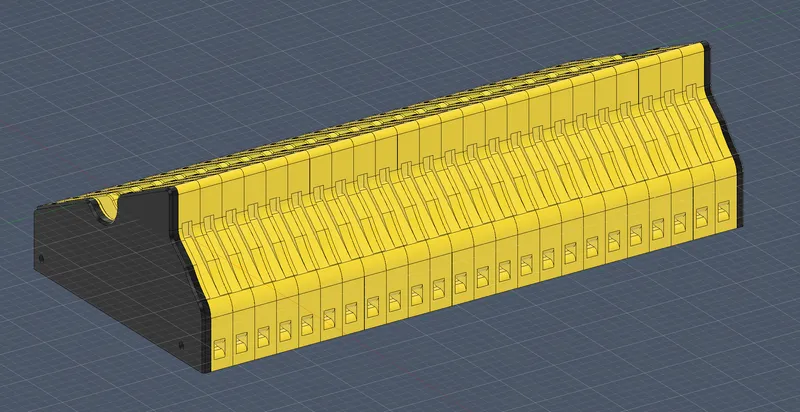

Interlocking SMD Reel Holders
Print Profile(1)
  • All parts. 0.2mm layer, 2 walls, 15% infill

    4-disc

    PLA

    Designer

1

0

27

6

Released 2025-07-23
Details
Files(6)
Makes & Comments (0)

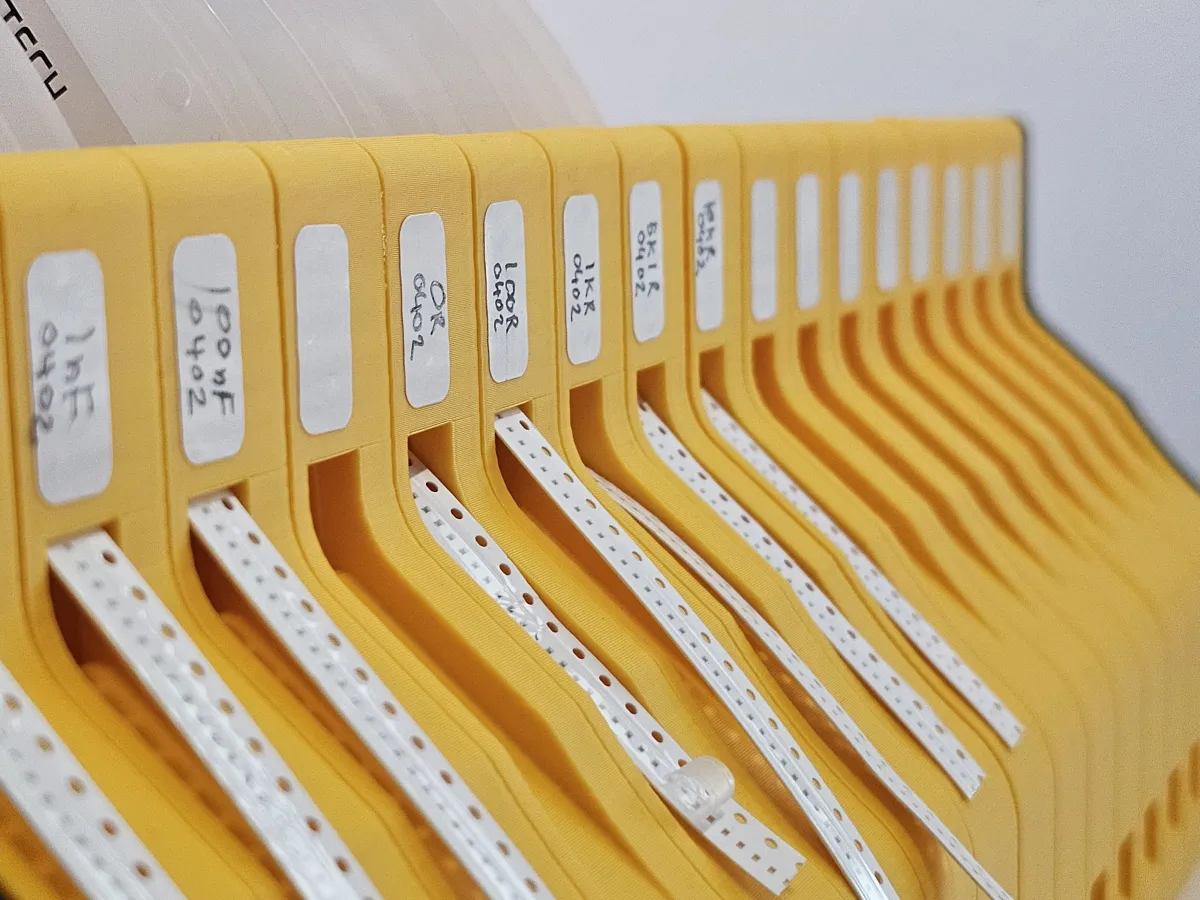

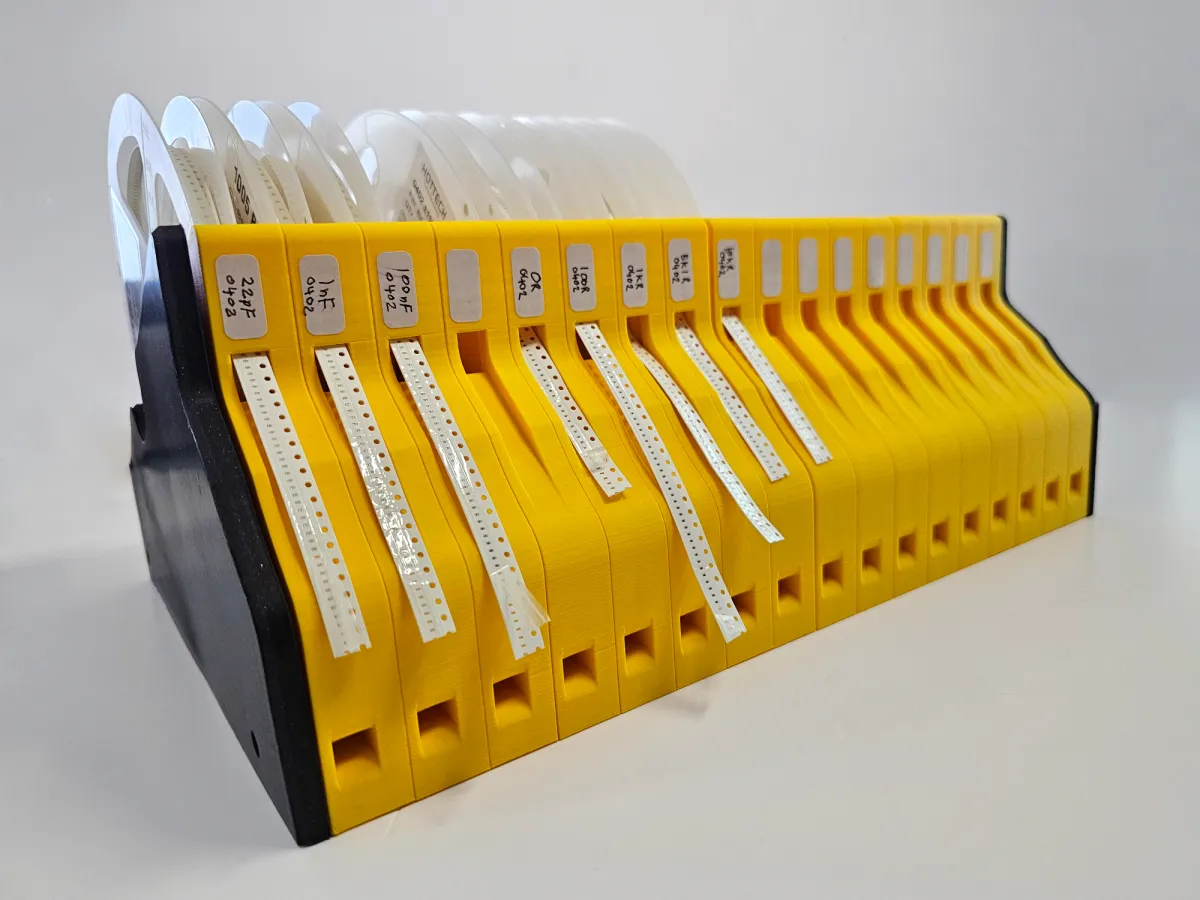

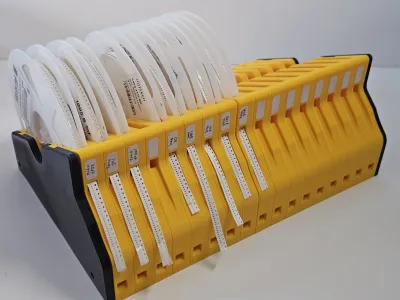

for 8mm tapes, 10mm width (11mm on larger clearance model), 180mm diameter. This is the most common spool for small SMD resistors, ceramic capacitors and small semiconductor parts.

Check your smd tape size before printing. I suggest printing the larger clearance model.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(6)

  • model file image
    8mmReelHolderLargerClearance.stlDesigner

    2.81 MB

    2025-07-22

  • model file image
    EndplateM.stlDesigner

    1.37 MB

    2025-07-22

  • model file image
    EndplateF.stlDesigner

    1.37 MB

    2025-07-22

  • model file image
    8mmReelHolder.stlDesigner

    2.81 MB

    2025-07-22

  • SMD reel holders.stepDesigner

    587.40 KB

    2025-07-22

  • model file image
    SMDReelHolders-All.3mfDesigner

    1.49 MB

    2025-07-25
