Dewalt Drill Guide with Depth Guage
Print Profile(0)

  • Earn points by adding print configurations

2

1

42

8

Released 2025-07-21
Details
Files(3)
Makes & Comments (0)

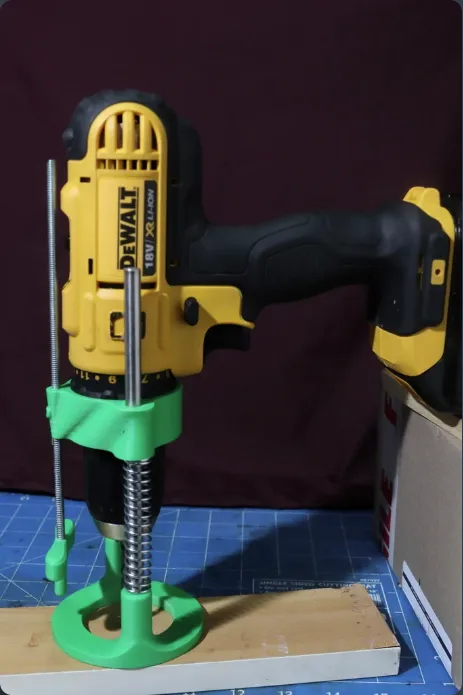

This drill guide is designed for a Dewalt DCD776-EX but should also work for drills with collars around 54mm. It fits by friction and should push on and pull off.

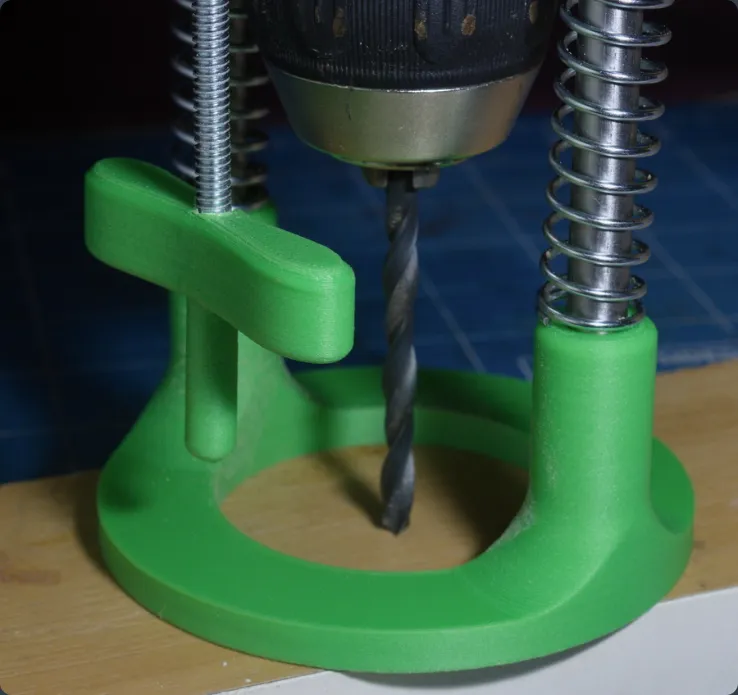

It boasts a primitive but effective depth gauge. Just twist to raise or lower.

Using depth gauge

  1. Insert bit
  2. Slip collar on drill (Gauge should run along the top of the drill)
  3. Place drill on the job and let springs take the weight
  4. Adjust bit, so it is just touching job
  5. Twist gauge, so that distance from the top of the foot foot is the depth you need
