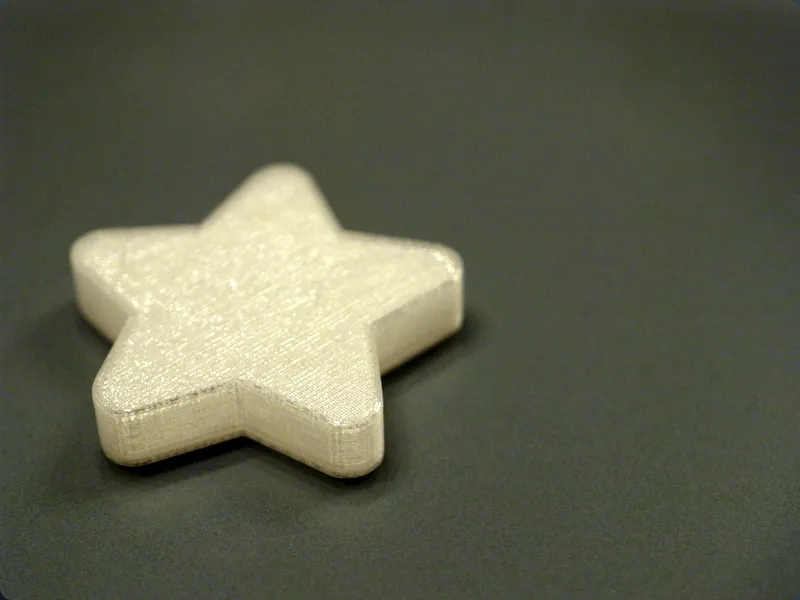

In an effort to better understand OpenSCAD, I challenged myself to put together a little starbox generator. Use the SCAD file or Customizer to generate n-sided starburst containers. I've printed a few samples (sorry, I only have natural PLA), and the parameters are in the Print Settings below.

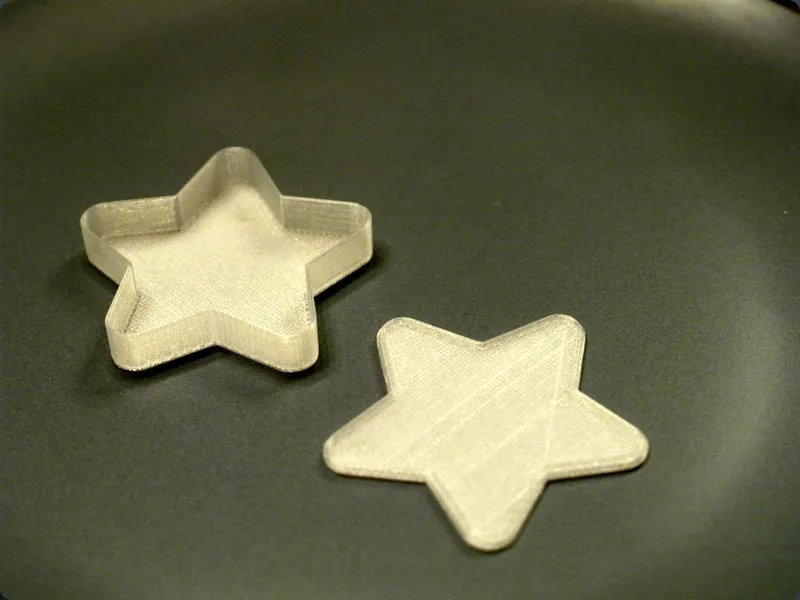

I find that these boxes print very nicely at 0.2 mm layer height in PLA. The lids snap onto the boxes nicely and hold in place if you have a well-calibrated printer. I'm using a Printrbot Simple Metal with an E3D V6 with a 0.4 mm nozzle. I usually print with a wall thickness of 0.8 mm (two shells), and a bottom wall thickness of 1.0 mm.

This is my first upload, so please feel free to comment and leave suggestions. Thanks!

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
pilotneko

This model is licensed under the following terms:

No Copyright.

Models(7)

  • Box_1.stl

    87.91 KB

    2025-06-25

  • Box_2.stl

    108.20 KB

    2025-06-25

  • Lid_1.stl

    136.25 KB

    2025-06-25

  • Box_3.stl

    146.42 KB

    2025-06-25

  • Box_4.stl

    221.23 KB

    2025-06-25

  • Lid_2.stl

    122.55 KB

    2025-06-25

  • Starbox.scad

    2.12 KB

    2025-06-25
