PSU Bracket for Voron V0.2 (R1)
Print Profile(1)
  • PSU Bracket

    1-disc

    ABS

    Designer

1

1

17

0

Released 2025-05-10
Details
Files(2)
Makes & Comments (0)

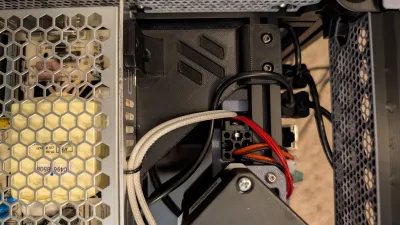

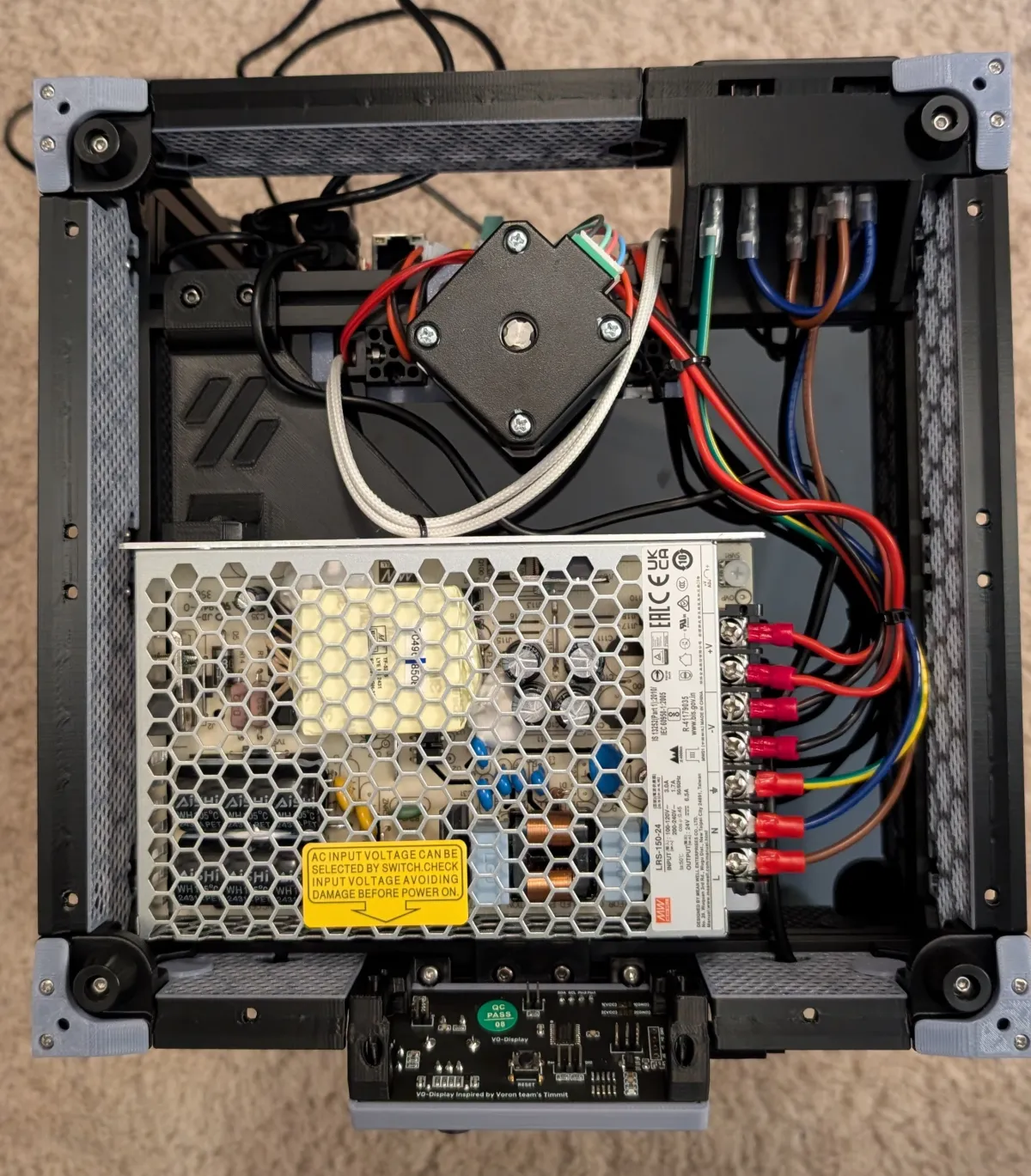

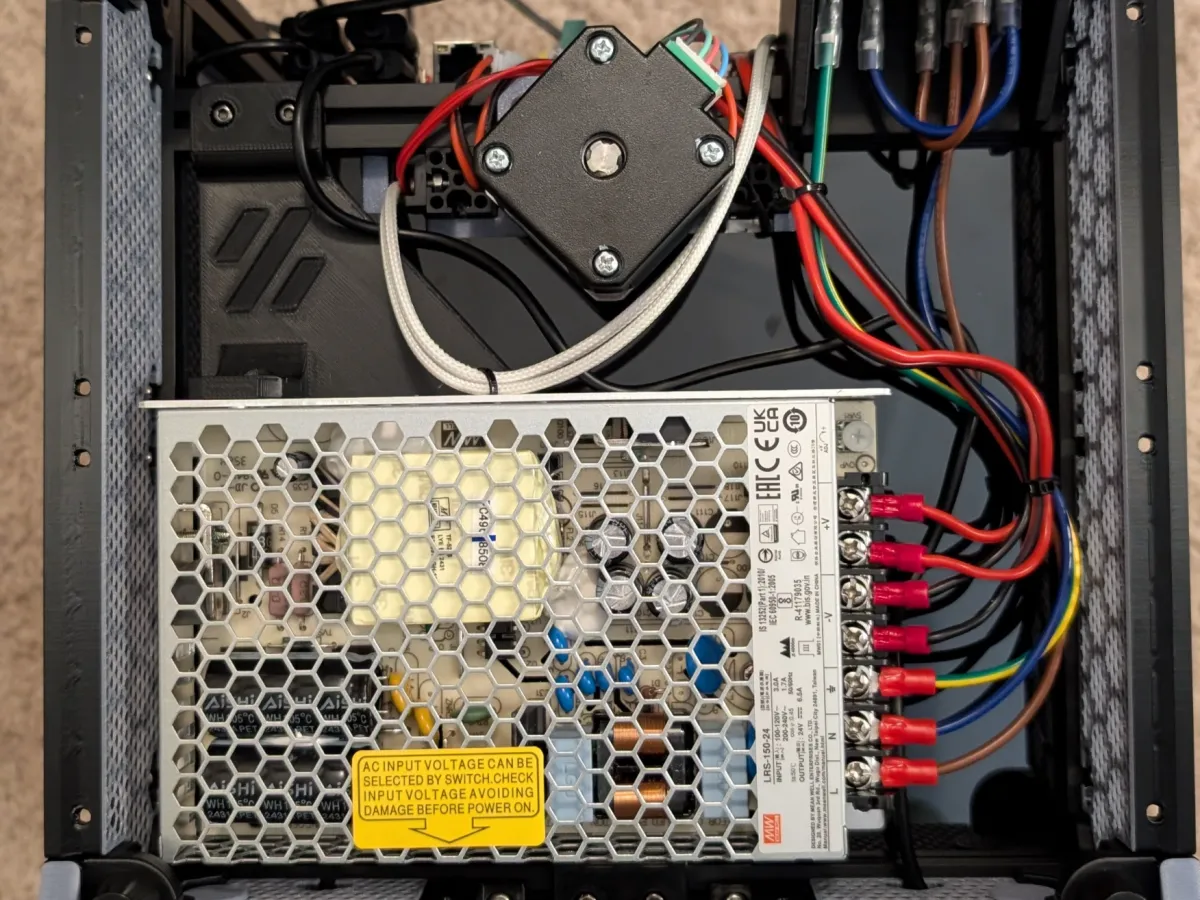

Screw in PSU bracket for the Voron V0.2 to alleviate the need for VHB tape. Screws in to the bottom of the front and rear extrusion. You will need to preload the nuts during frame assembly, or disassemble to mount it.



Assuming no other mods there should be a total of 6 preloaded nuts on the underside of the front extrusion and 4 preloaded nuts on the underside of the rear extrusion. This mod is compatible with No Drop Nuts.

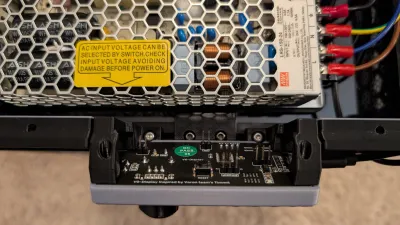

This is ONLY compatible if you are using the front display on the V0. It will NOT work if you are using the headless middle skirt.



You will need to use supports on the 2 mounting tabs.



Bom:

3x M3 6mm Screws For Psu Mounting

4x M3 8mm Screws for Bracket Mounting

1x M3x5x4 Heat Insert (Voron Spec)

4x Preloaded Nuts (Compatible with NDN)

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    See Description
    1

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license

Models(2)

  • V0_Psu_Bracket.stlDesigner

    686.21 KB

    2025-08-09

  • model file image
    V0_Psu_Bracket.3mfDesigner

    192.45 KB

    2025-05-10
