Robotic Gripper – Pushrod Claw

I. Inspiration

Based on a linear gear–rack transmission paired with a connecting‑rod pushrod mechanism, this design is compatible with the SG90 micro servo motor and serves as an end‑effector for small robotic arms. Its compact and streamlined structure makes it ideal for classroom demonstrations of mechanical transmission principles, as well as for direct use in robotics innovation projects.

II. 3D Printing Process

The housing, gripper jaws, and pushrod are printed using PLA filament, while the gear and rack components are made from PETG to enhance wear resistance. A 0.3 mm clearance is left at the gear meshing points, and a 0.1 mm assembly allowance is provided in the connecting‑rod hinge holes. With no large overhanging surfaces and only minor local fillets supported by simple supports, the part exhibits low printing difficulty.

III. Structure and Assembly

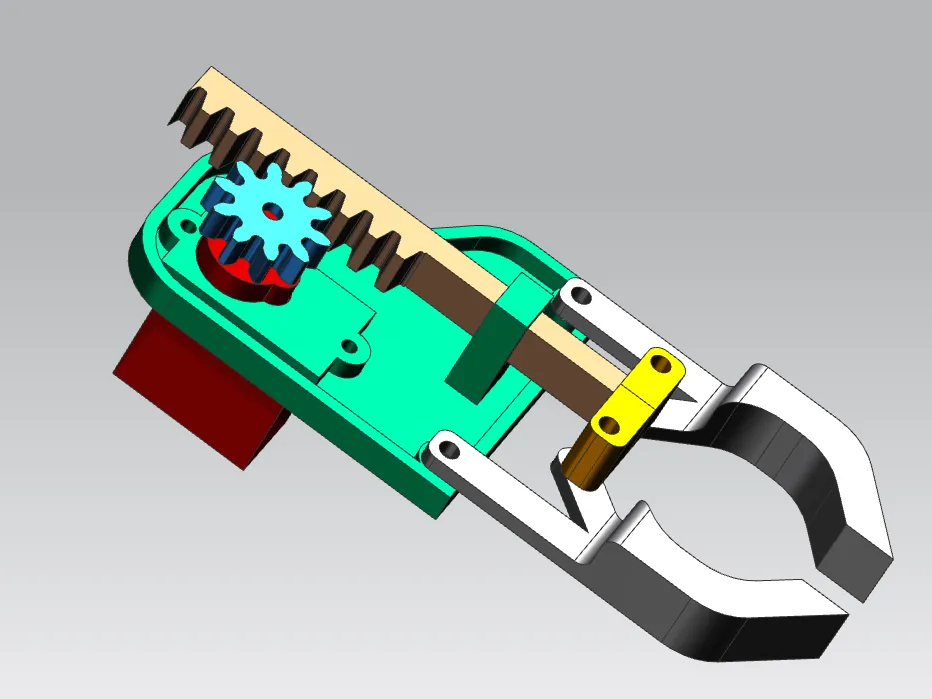

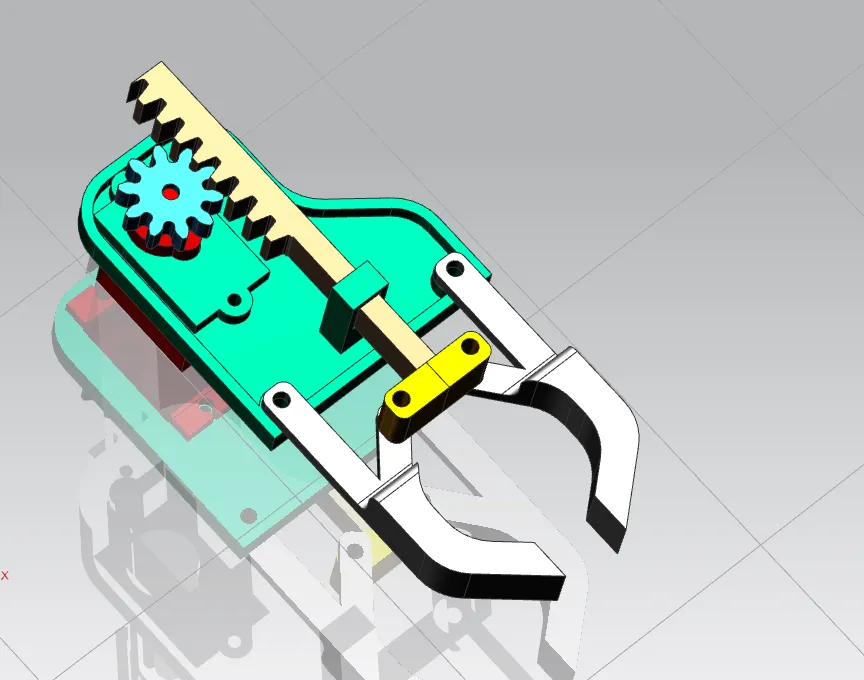

The servo motor rotates the gear, driving the rack to produce linear reciprocating motion of the pushrod. A connecting rod synchronously actuates the opening and closing of both gripper jaws. The fully enclosed housing protects the transmission components from debris, while standard mounting holes at the rear allow for easy integration into various setups. The curved claw design ensures stable gripping of diverse small parts.
