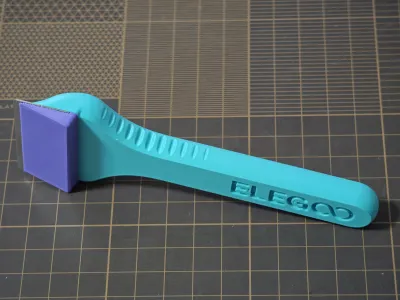

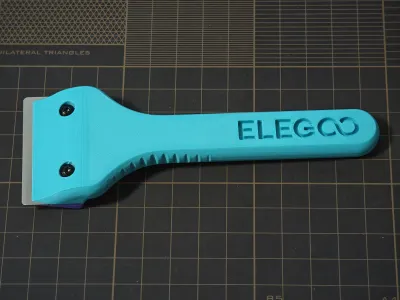

Ergonomic Precision Scraper

A practical scraper designed specifically for everyday 3D printing use, with a focus on smooth operation, comfortable handling, and reducing the risk of damaging the build plate.

This model is designed to reuse the scraper hardware included with supported ELEGOO printers. It is compatible with the original scraper kit consisting of:

• 45*20 mm scraper blade
• 3*10 mm self-tapping screw x2

Simply reuse the original blade and screws with the printed handle.

Features

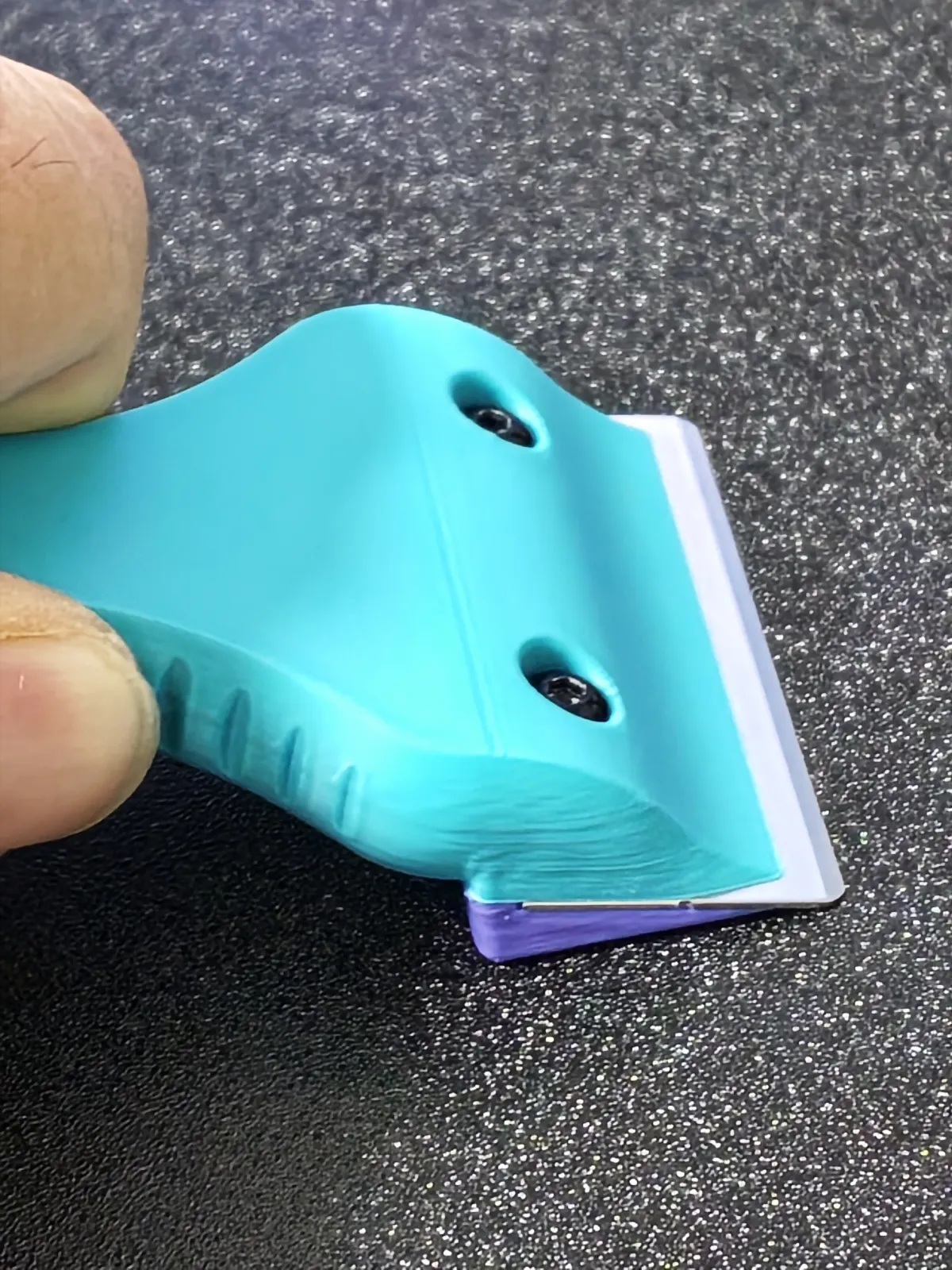

• Built-in blade angle guide



  A specially designed angled support underneath the blade helps naturally maintain a suitable scraping angle during use. This makes the scraper easier to control and reduces the chance of accidentally digging the blade into the build plate at an incorrect angle.

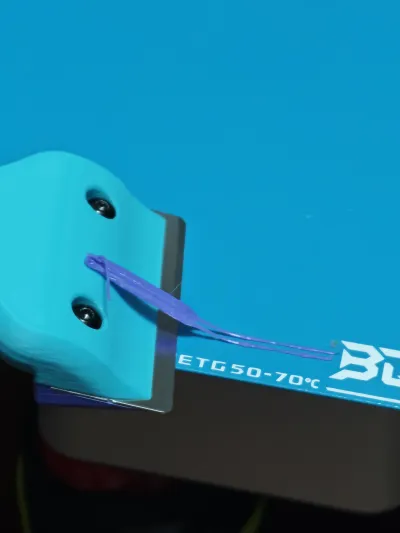

• Progressive upper blade profile



  The surface above the blade uses a gradual slope instead of an abrupt step. Thin filament, brims, and scraped-up sheets are less likely to catch on the scraper body, allowing them to slide over the tool more smoothly.

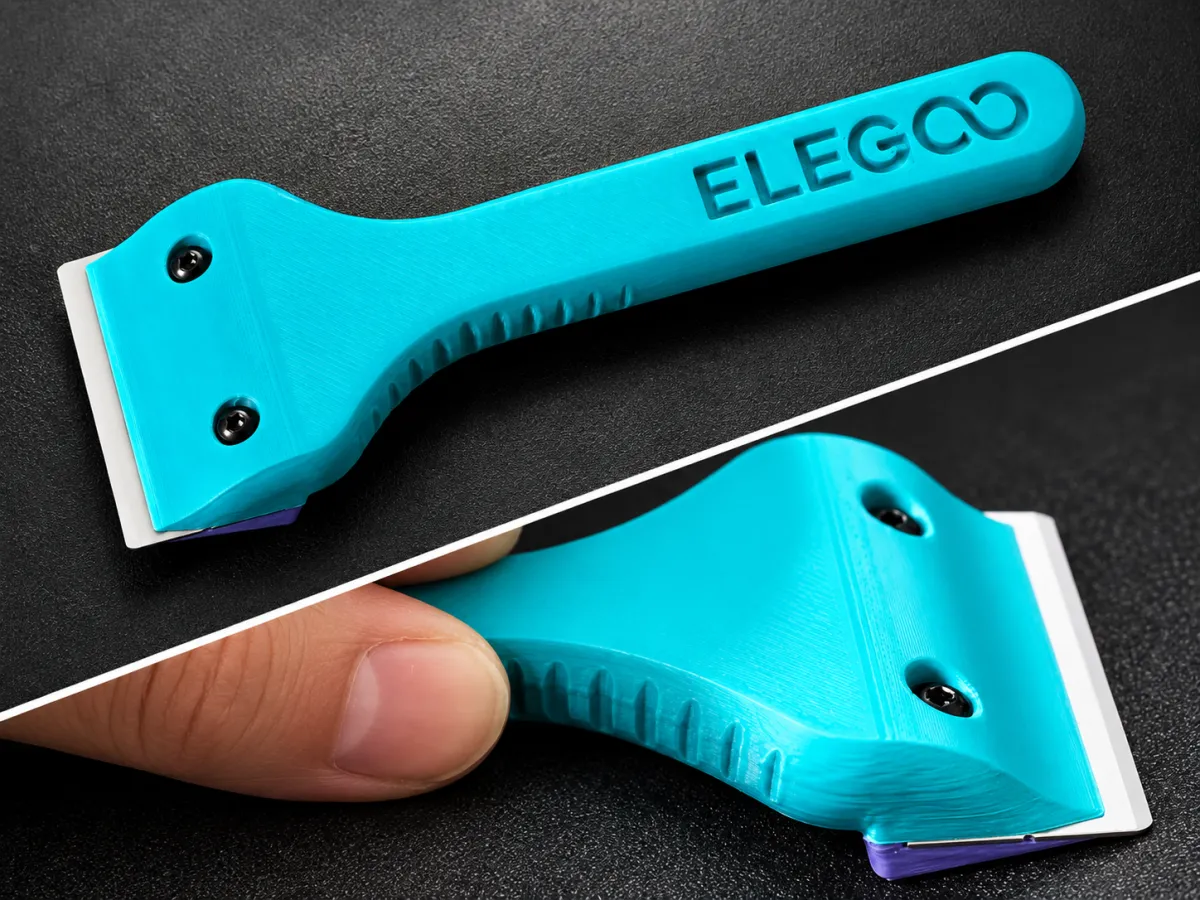

• Comfortable ergonomic handle




• The handle is sized for a comfortable grip without being unnecessarily bulky. Anti-slip grooves are added around the main gripping area for better control and a more secure feel during use.

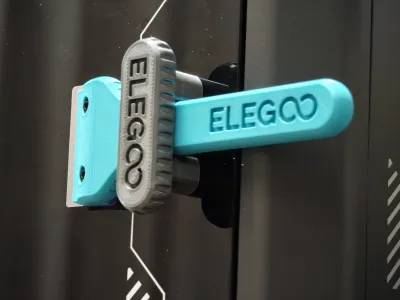

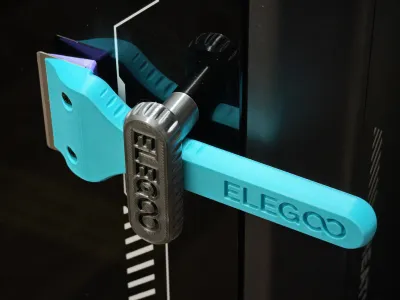

• Optional CC2 door-handle storage




  CC2 users can also print my replacement printer door handle, which includes an integrated storage position for this scraper. It keeps the scraper directly on the printer and always within easy reach.
  The compatible door handle model can be found HERE.

A simple tool, but designed around the small annoyances that come up repeatedly in everyday 3D printing.
