• Magnetic Small Square Grid Box

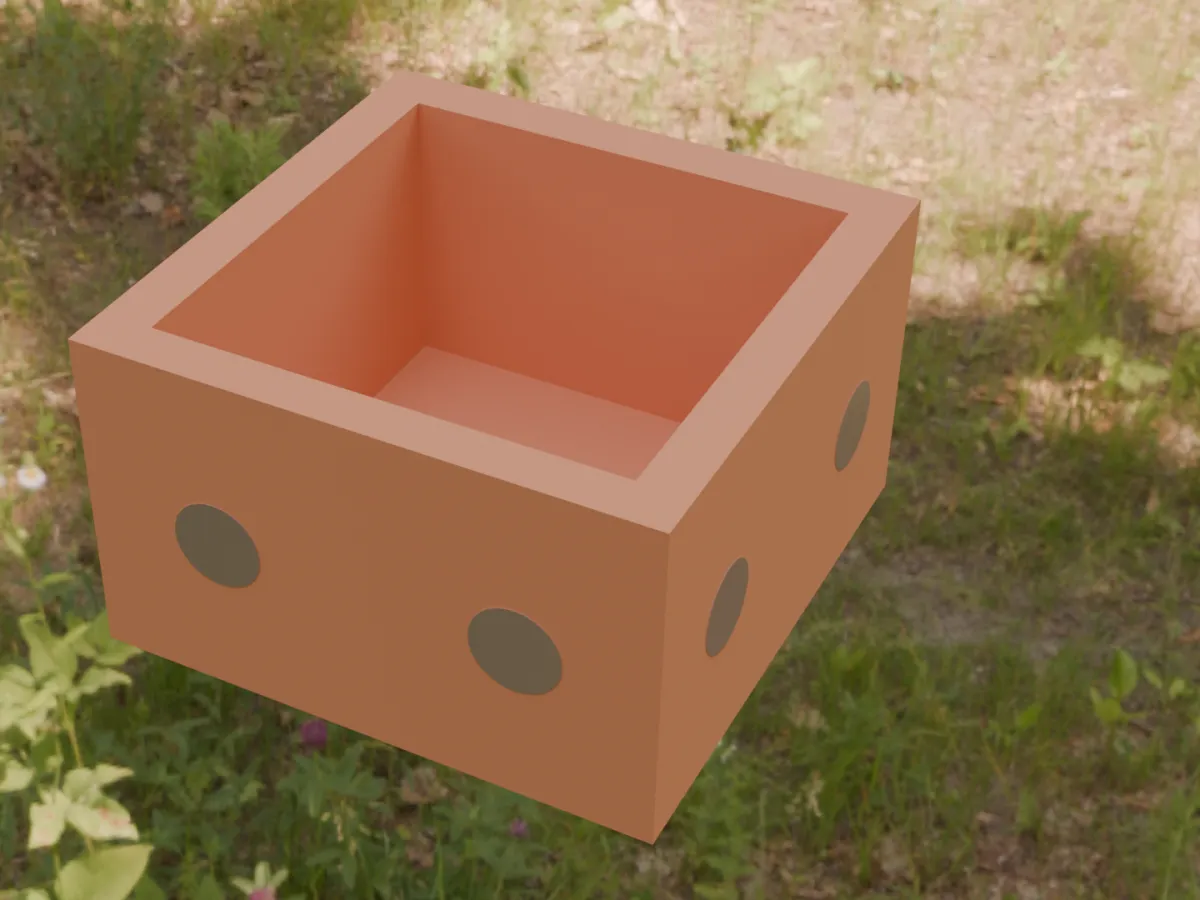

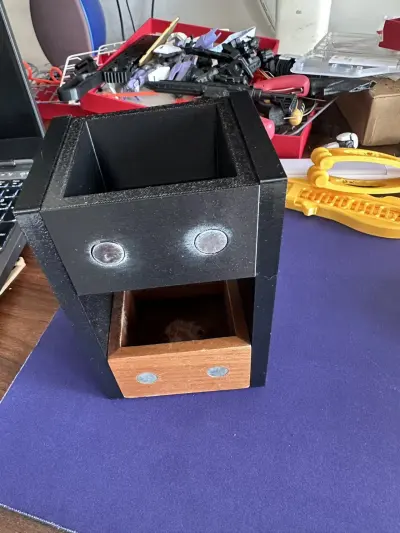

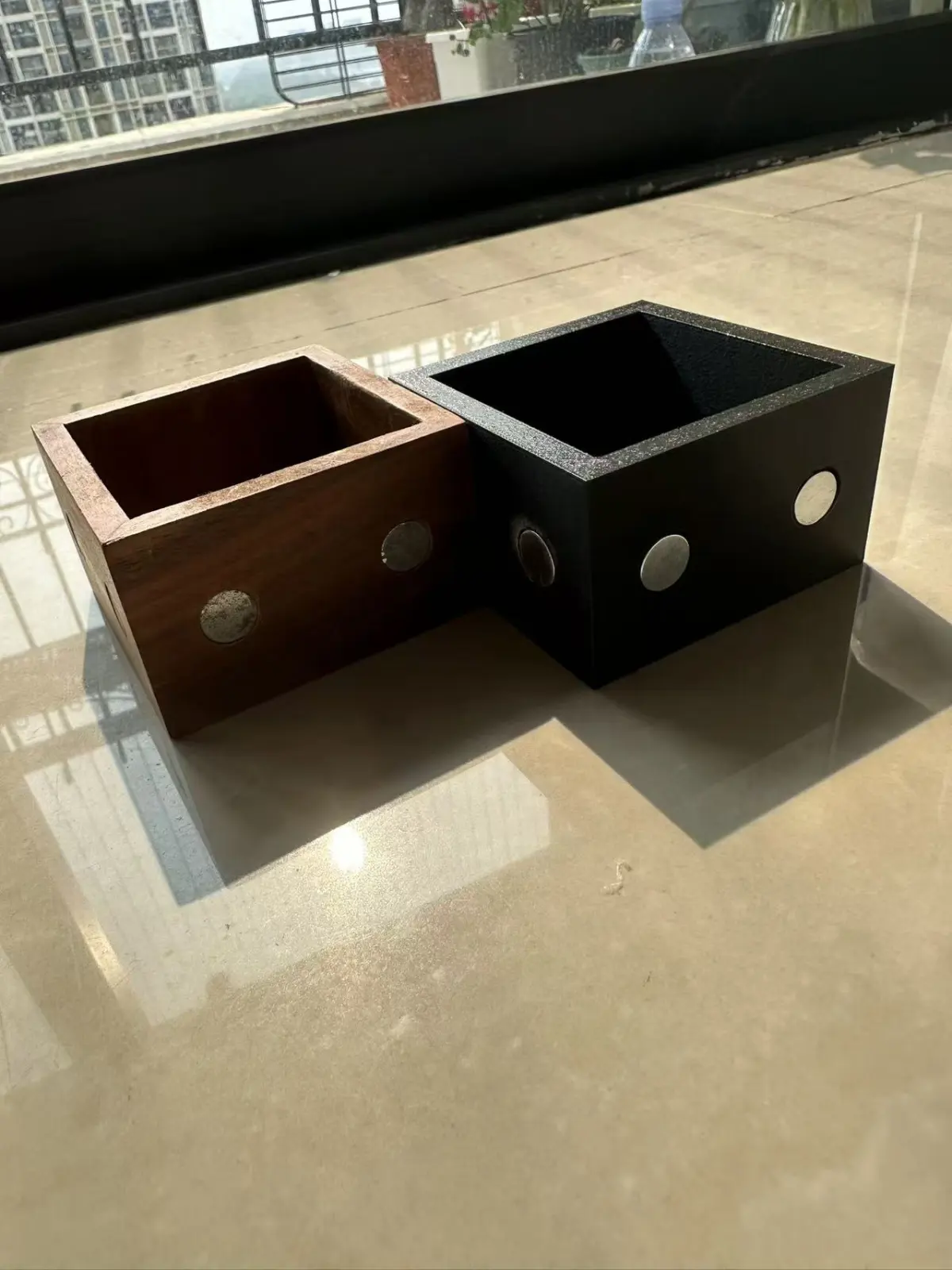

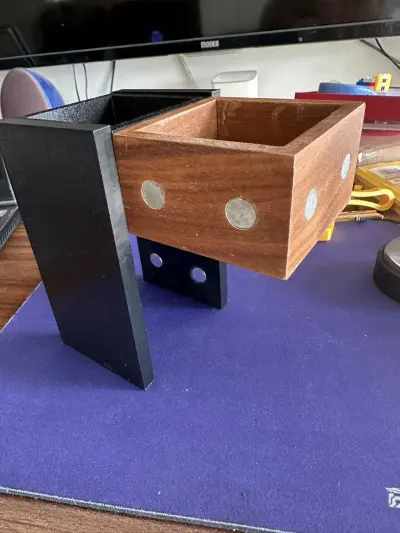

Magnetic small grid, dimensions: square, inner diameter 62.5 mm, outer diameter 76.6 mm, with eight circular magnets adhered—each 12 mm in diameter and 1.5 mm thick (though the actual delivered magnets are only 1.2 mm thick). When attaching the magnets, ensure that the magnetic poles of the two magnets on each face are opposite; this arrangement guarantees stability and ease of use when multiple boxes are magnetically joined. In addition, a pair of magnetic-attachment frames have been added to the edges for convenient vertical placement.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    直径12mm,厚度1.2mm的圆形磁铁
    8
    直径12mm,厚度1.2mm的圆形磁铁

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

No Copyright.

Models(2)

  • model file image
    磁吸小盒子边.3mfDesigner

    37.12 KB

    2026-03-28

  • model file image
    磁吸小盒子.3mfDesigner

    39.77 KB

    2026-03-28
