Product Introduction

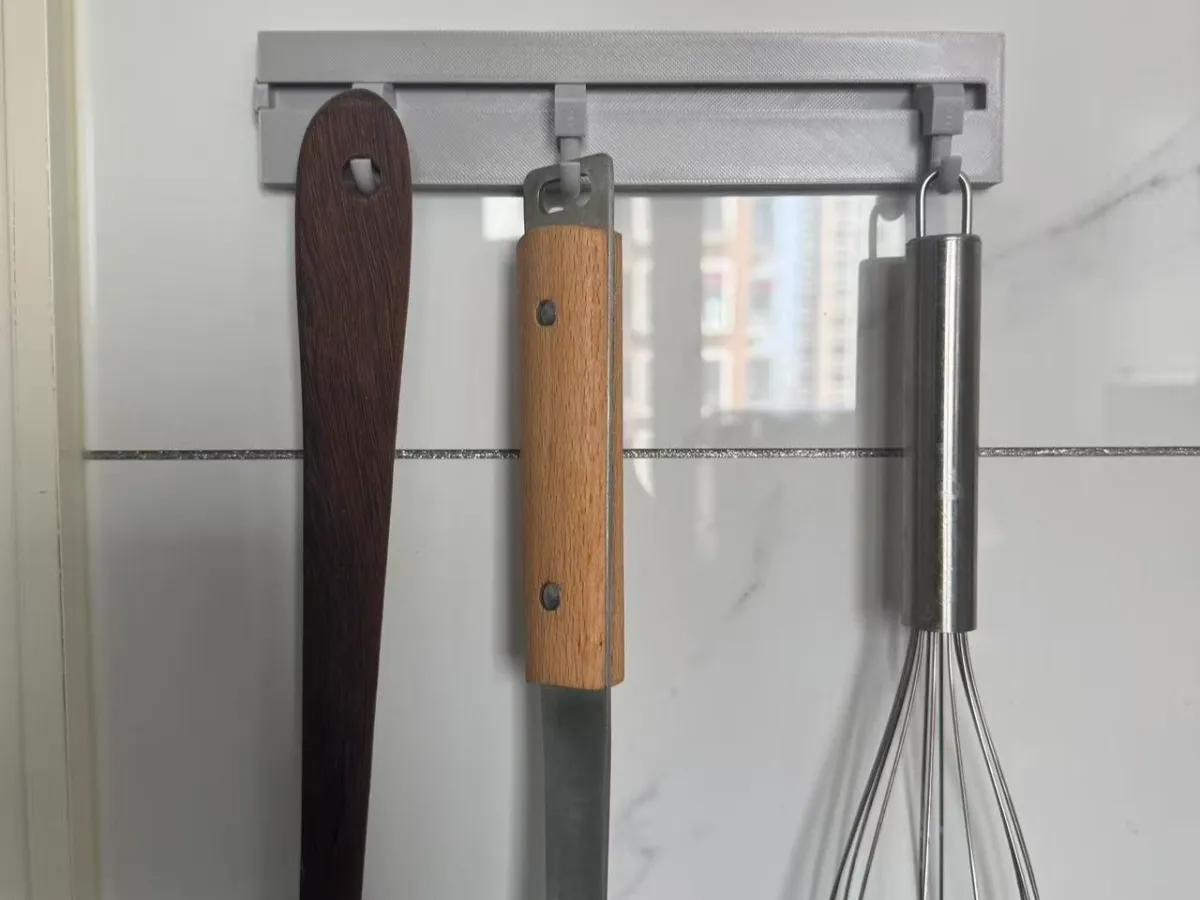

This is a modular, adjustable hook system specifically designed for the kitchen, featuring a “sliding rail base + movable hooks” configuration. The hooks can slide freely along the base and their spacing can be easily adjusted to accommodate cookware of various sizes, such as spatulas, soup ladles, and egg beaters. The base can be mounted directly on walls or cabinets—either with adhesive pads or pre-drilled screw holes—and the hooks use a snap-fit design for quick and easy assembly and disassembly, striking a balance between storage flexibility and space efficiency. It’s an ideal tool for organizing the kitchen and categorizing utensils.

Design Highlights

1. Adjustable Spacing via Sliding Rails: Each hook is equipped with built-in rollers that allow it to slide smoothly along the base’s track, enabling flexible adjustment of the spacing based on the length and number of utensils, thus preventing overcrowding and wasted space.
2. Snap-Fit Hooks: The hooks feature a “snap-and-slide” mechanism, requiring no tools for installation or removal, and can be individually detached for cleaning or replacement.
3. Versatile Installation Options: The base includes pre-drilled screw holes (or comes with adhesive mounting pads), supporting both drilled and drill-free installations and compatible with a variety of surfaces, including tile, wood, and metal.
4. One-Piece 3D-Printed Construction: The design is compact with rounded edges, ensuring a tight fit between the rails and hooks for stable load-bearing capacity (recommended maximum load per hook: ≤1 kg; total system load: ≤3 kg).

Technical Specifications

• Model Format: STL (the standard format for 3D printing)
• Printing Process: FDM (or SLA photopolymerization; PLA/PETG materials are recommended)
• Applicable Scenarios: Kitchen walls, behind cabinet doors, and the sides of refrigerators
• Dimensions (for reference): Base—length × width × height = 20 cm × 3 cm × 1.5 cm; Hooks—length × width × height = 4 cm × 2 cm × 1 cm (track groove width ≈ 2.5 mm)
• Printing Accuracy: A layer thickness of 0.1–0.2 mm is recommended to ensure smooth rail operation and secure hook engagement

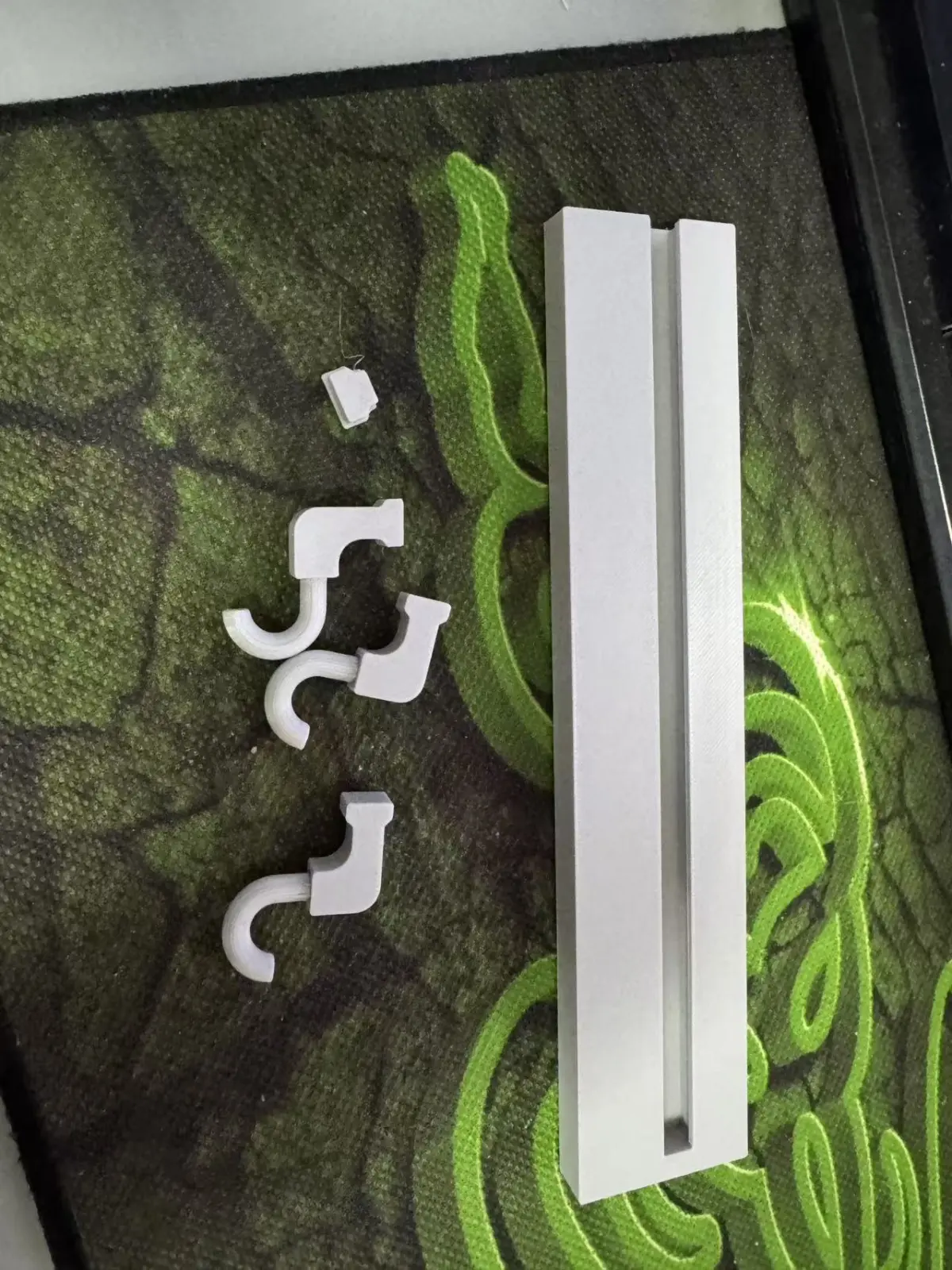

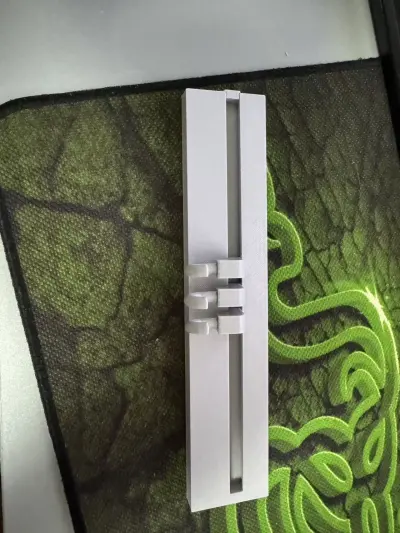

• Assembly Method: Hooks simply snap into the base rails—no additional assembly required

Usage Scenarios

• Kitchen Wall Storage: Hang small utensils such as spatulas, soup ladles, egg beaters, and vegetable peelers to free up counter space.
• Behind Cabinet Doors: Attach to the inside of cabinet doors to store aprons, heat-resistant gloves, and small tools, making them readily accessible when the door is opened.
• Refrigerator Side Organization: Hang dishcloths, cleaning brushes, measuring cups, and other items close to the work area for easy access during use.
