Thermohygrometer holder
Thermohygrometer housing
Wall-Mounted Bracket
- 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PETG-CF
Designer
3
1
1. Structural Design

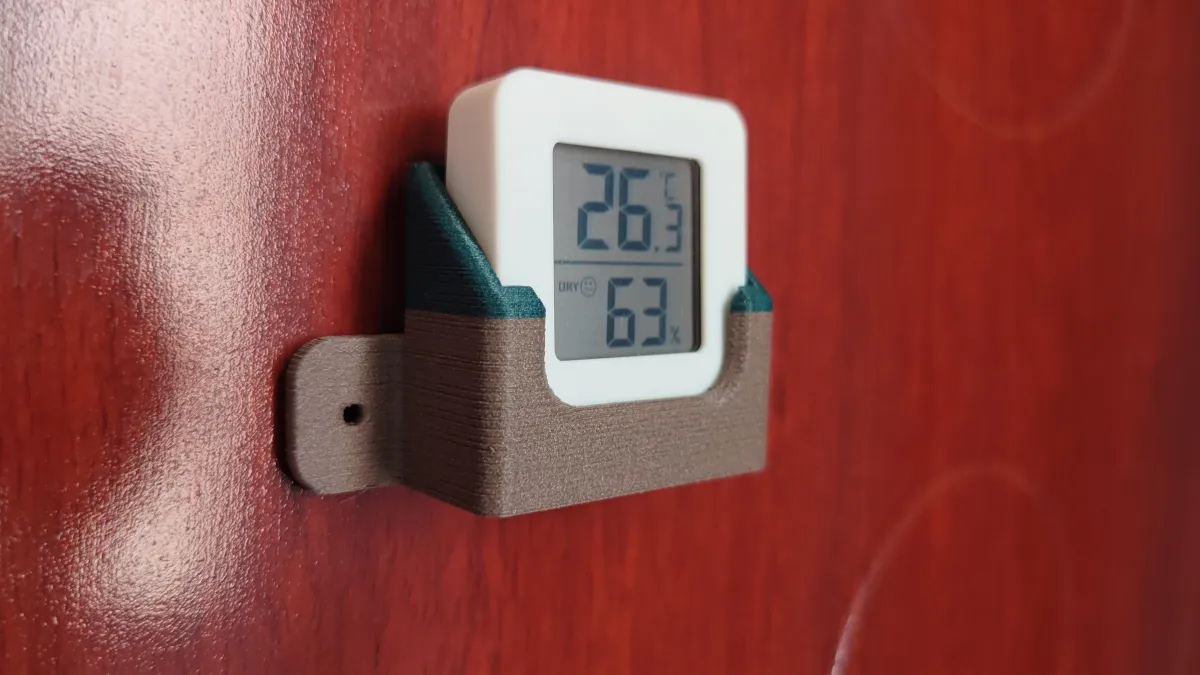

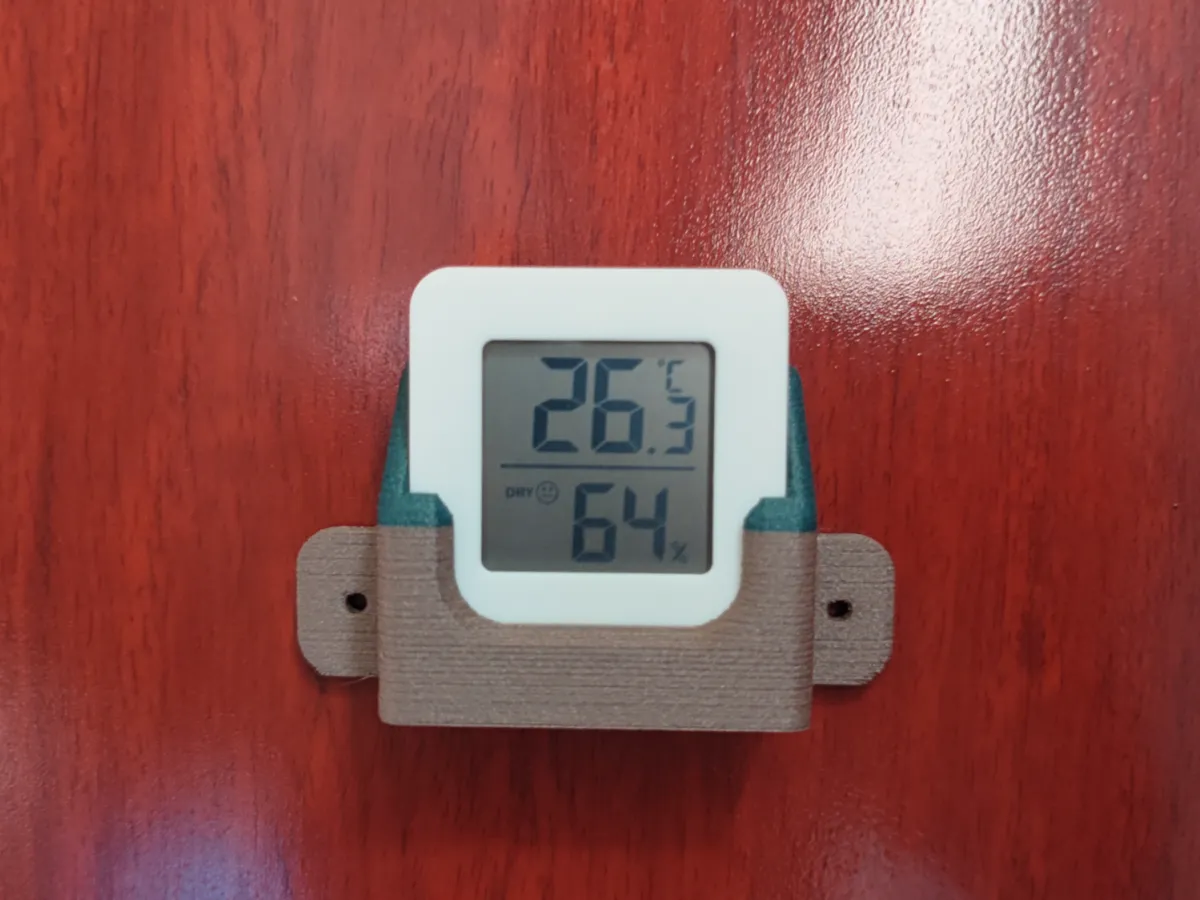

One-piece printed construction, eliminating the need for assembly or joining. The base features extended tabs on both sides with circular mounting holes, allowing direct screw attachment to walls, cabinet doors, or cabinet panels—ensuring secure installation that won’t come loose.
The central U-shaped slot, paired with raised side flanges, provides precise positioning and stable retention for small square temperature and humidity sensors; once inserted, the device remains firmly in place without slipping or tipping over. A full-width front opening ensures unobstructed access to the display, delivering clear and intuitive readings of temperature and humidity values.
The rear is fully hollowed out, leaving no obstruction to the device’s ventilation ports and ensuring optimal airflow for the sensor, thereby maintaining accurate measurement performance. The slot dimensions are compatible with standard embedded mini temperature and humidity meters, enabling easy plug‑in/plug‑out and convenient disassembly.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
Models(2)
- 壁挂温湿度计座.3mfDesigner
84.01 KB
2026-07-15
壁挂温湿度计座.stlDesigner180.65 KB
2026-07-15
