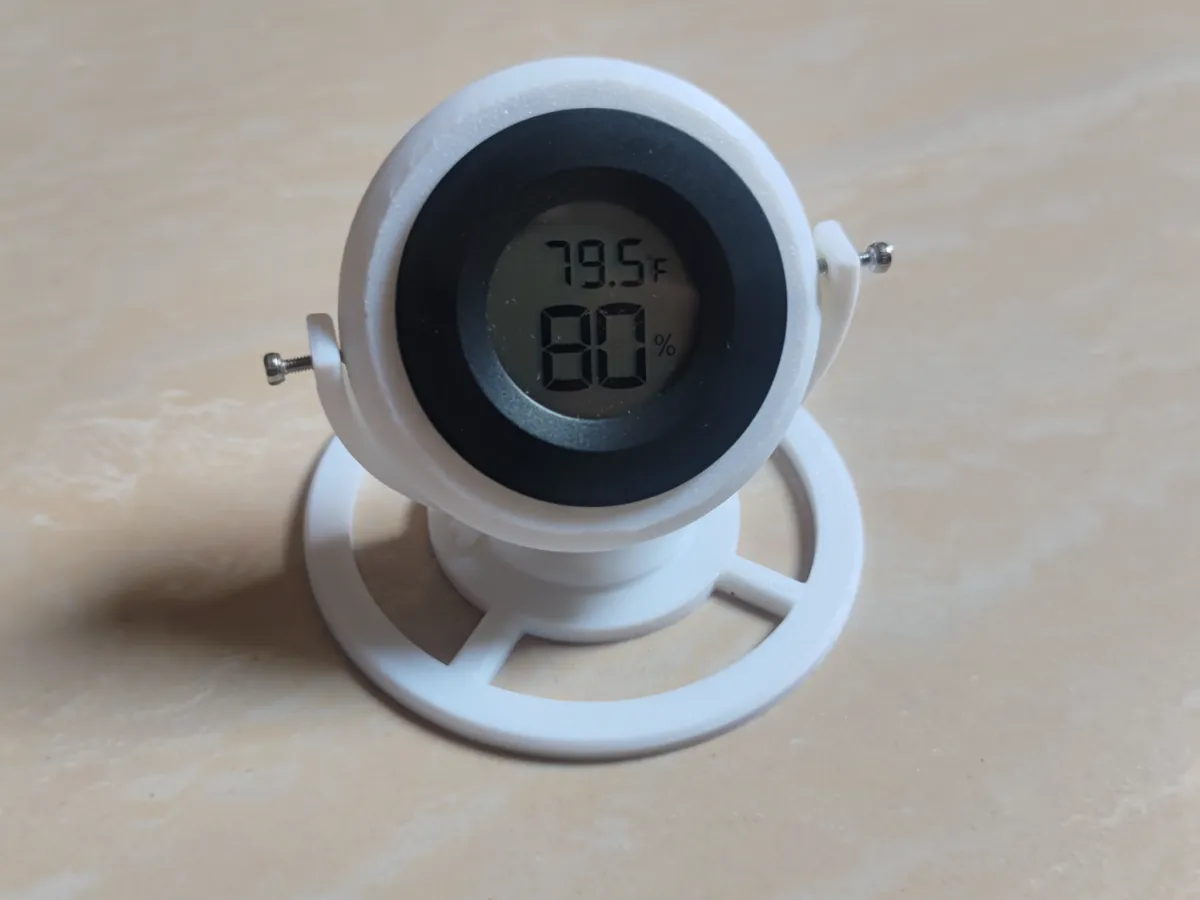

1. Locking mechanism: Two M2×10mm hex screws secure the clamping ring, enabling easy assembly and disassembly while accommodating round embedded temperature and humidity modules.

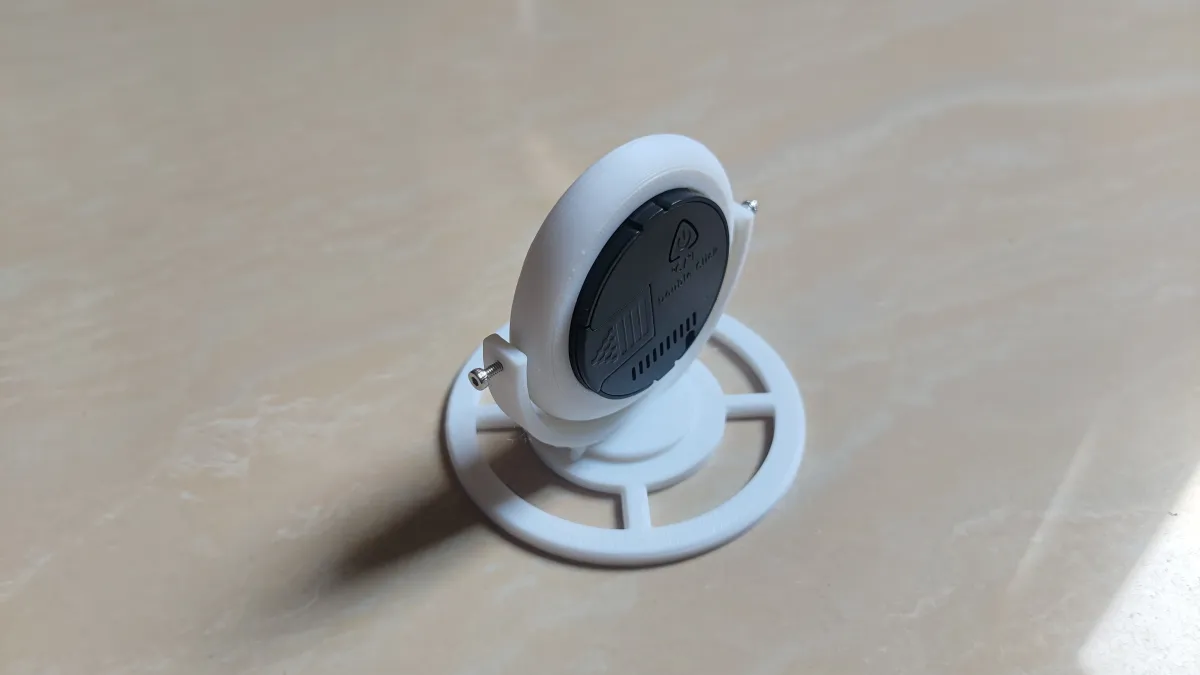

2. Adjustment structure: Supports only front-to-back pitch and flip; the base is integrally fixed and cannot rotate horizontally. The flip angle is adjustable, allowing the entire unit to be turned over for convenient reading of measurements or battery replacement.

3. Hollowed-out base design: A circular-spoke hollow base reduces material consumption and avoids obstructing the ventilation sensor holes on the back of the thermometer/hygrometer, ensuring measurement accuracy.

4. Integrated molding: The base, flip bracket, and clamping frame are all printed in one piece, eliminating the need for 502 glue and resulting in a robust, durable structure.

Printing recommendations:

- Recommended filaments: PLA for everyday use; PETG for high-humidity environments.

- Support requirements: No overhanging structures—no tree-like supports are needed.

- Printing orientation: Print with the base facing down, leaving adequate clearance around the pivot axis to ensure smooth, snag-free flipping.

Applicable scenarios:

Reptile enclosures, cigar humidors, musical instrument moisture-proof cases, and desktop indoor temperature and humidity monitoring. With multi-angle pitch adjustment and a flip‑over design, you can replace the module’s button battery without disassembly.
