Mingwei S350 27-channel CNC adjustable power supply TL494
Print Profile(1)
  • 0.2 mm layer height, 2‑wall walls, 15% infill density

    2-disc

    PETG

    Designer

0

0

15

1

Released 2026-06-17
Details
Files(1)
Makes & Comments (0)

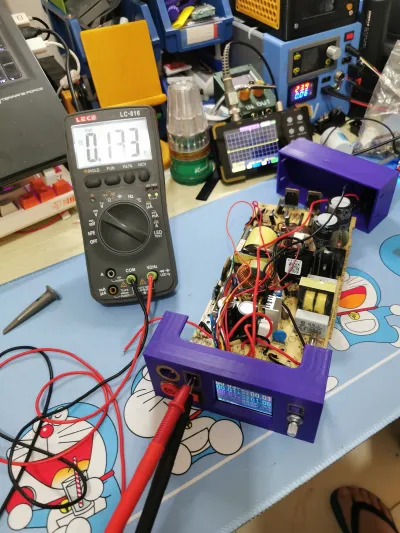

         Based on the MOD494 CNC adjustable power supply control board developed by cnwans, this design integrates with the Mean Well S350 24/27 power supply (hardware based on the TL494 scheme).

         Below are links to the open-source hardware documentation for the control board.

         MOD494 CNC Module – Modified TL494 Power Supply V1.2 – LCSC Open Source Hardware Platform – Shenzhen Chuangdian Youxuan Technology Co., Ltd.

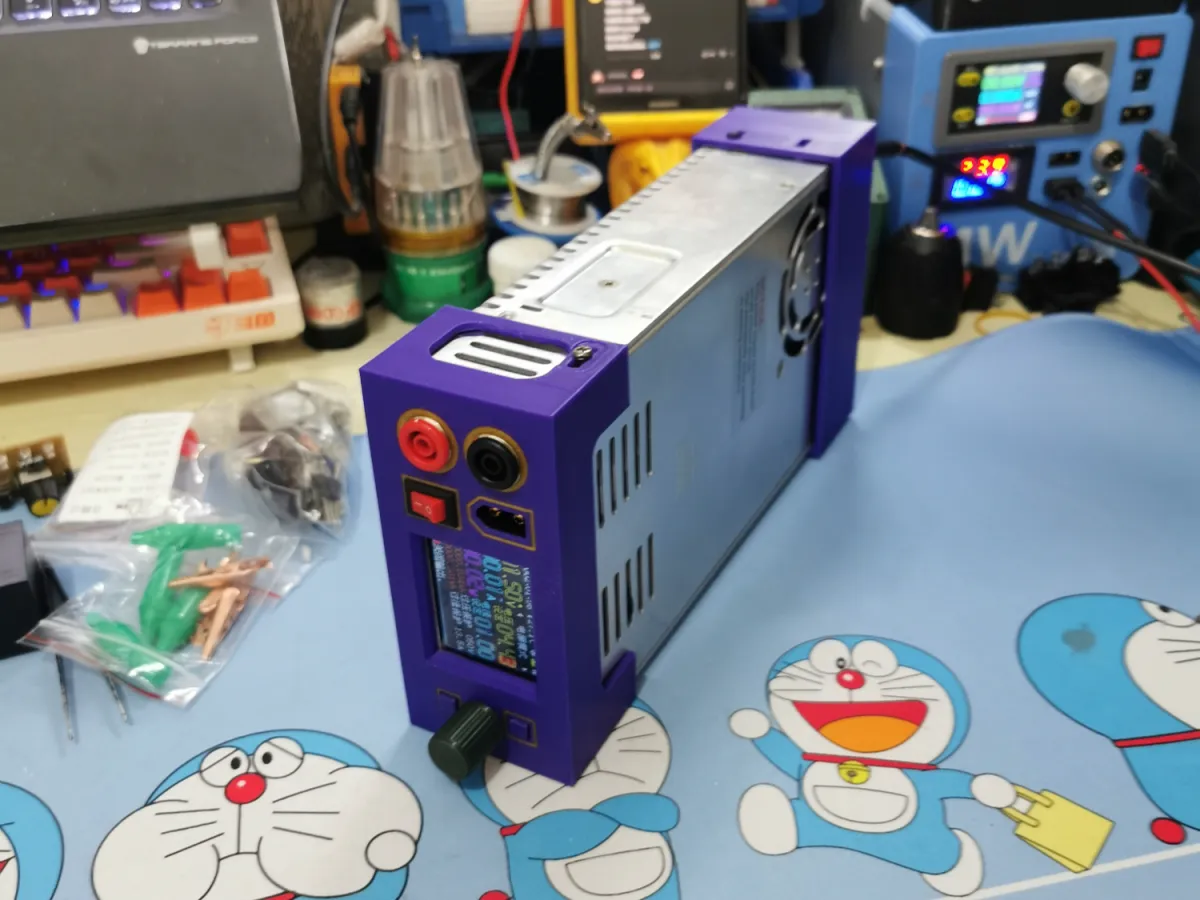

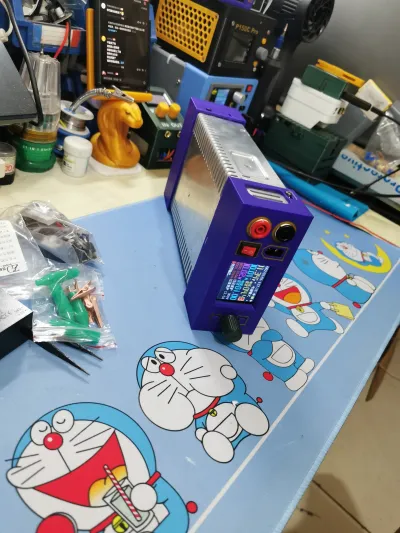

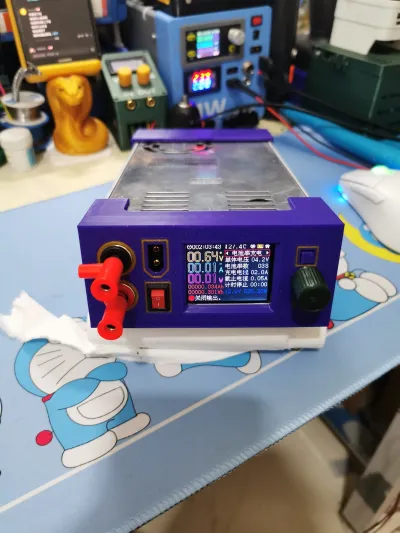

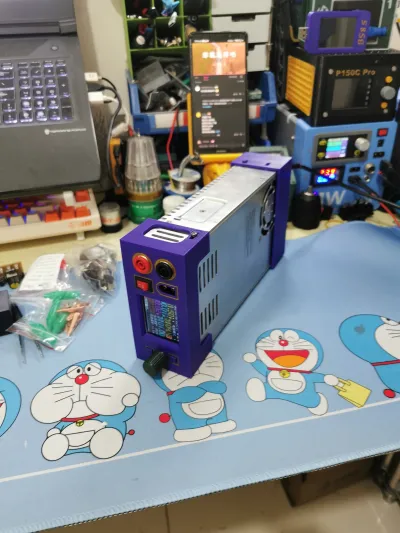

         Panel support information: the following are DC outputs.

         One channel with a 400V–32A banana plug

         One channel with an XT60 connector

         A boat‑type switch

        “EC11 can be used with my previous models.”

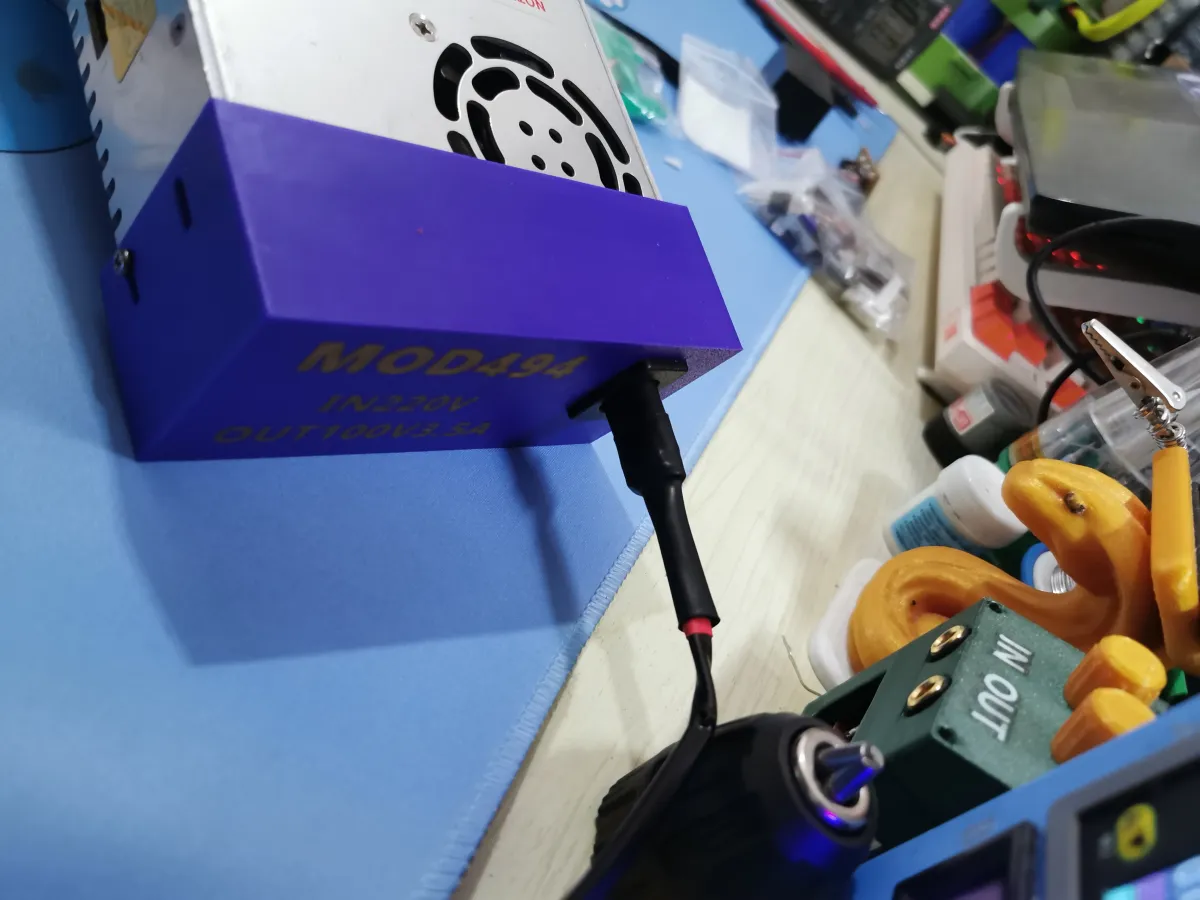

         AC input details at the rear:

         Choose either an 8‑pin socket or a pin‑type socket.

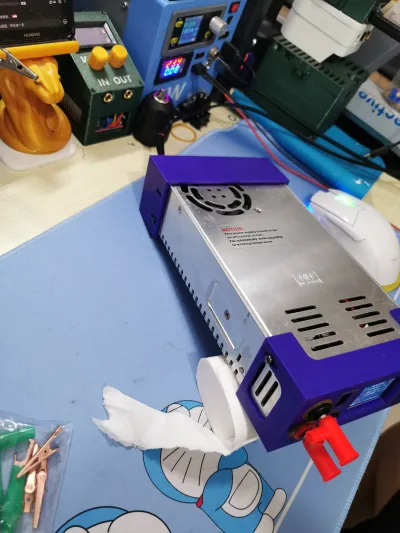

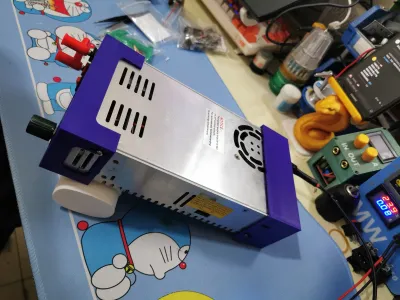

         Heat‑dissipation cutouts are designed only to fit the original enclosure; they are sufficient for everyday use.



         Assembly requires several M3 screws (self‑tapping screws are recommended).



                                              ! Warning! Please note that this model provides only modeling information.

                                      For information regarding power supply modifications and conversions, please refer to the relevant open-source resources yourself.

                                              ! This project involves AC 220V to DC conversion—please observe proper electrical safety procedures.



Bill of materials

  • Name
    Quantity
    Notes
  • 1
    船型开关
    1
    装配尺寸8.5*12mm
  • 2
    XT60母座
    1
  • 3
    AC 8字母座
    1
    AC输入二选一
  • 4
    安全香蕉插座
    2
    装配直径12mm
  • 5
    M3螺丝
    10
    若干（建议使用自攻款）
  • 6
    MOD494
    1
    一体控制板
  • 7
    明纬S350电源
    1
    必须是TL494方案
  • 8
    AC品字母座
    1
    AC输入二选一
