- 0.2 mm layer height, 2‑wall walls, 15% infill density
2-disc
PLA
Designer
22
4
Original design by Meng Ye Gu Shou; search “Meng Ye Gu Shou” on Bilibili for videos on their homepage.

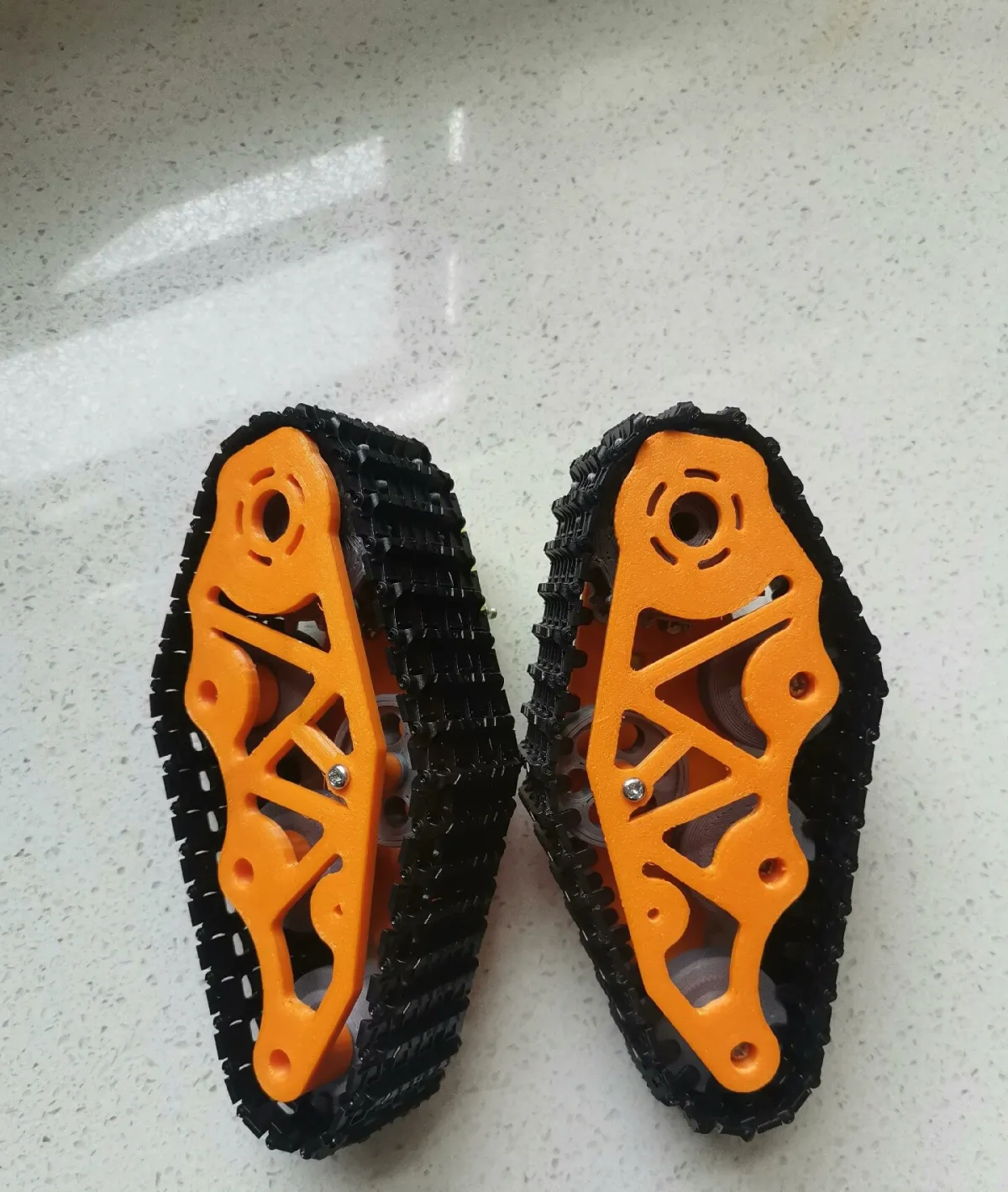

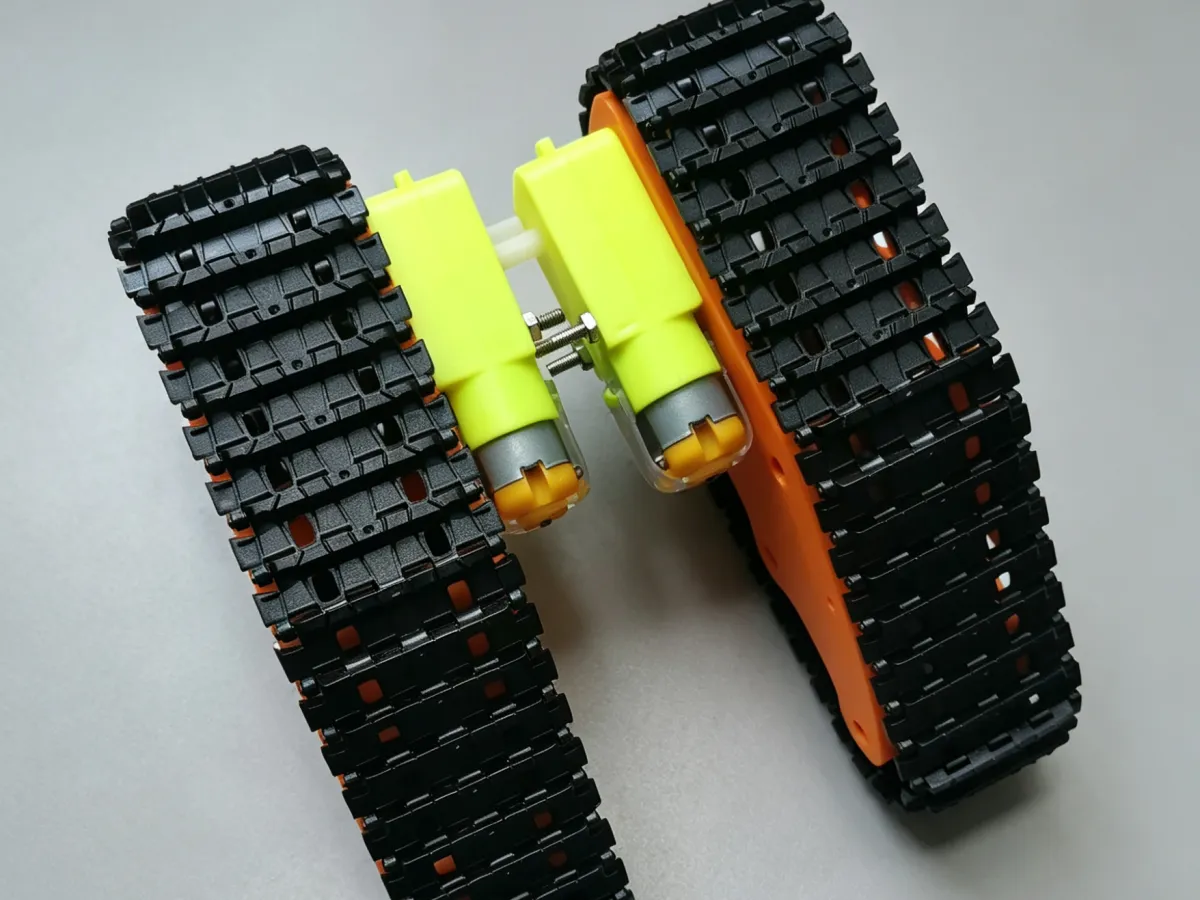

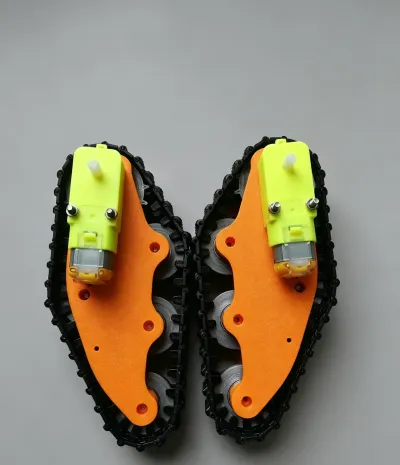

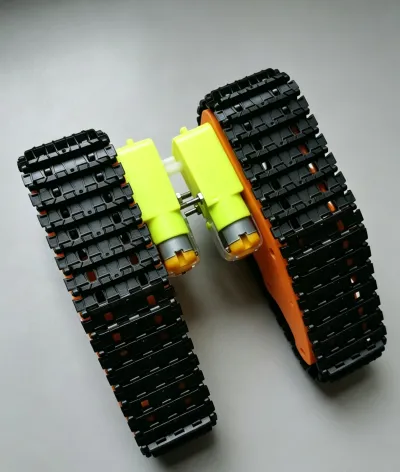

You’ll need to prepare a TT motor—either single-axis or dual-axis is fine, with any desired RPM. Also purchase the tracks shown in the picture: Leopard tank track plates, several M3×10 screws, and four M3×20 screws with nuts.
Each road wheel should be fitted with a 689ZZ bearing; that’s about it.
