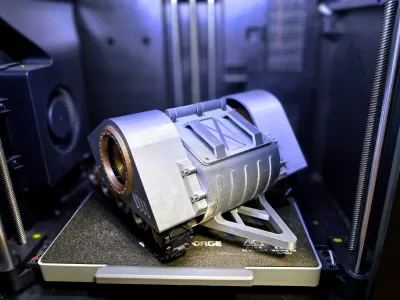

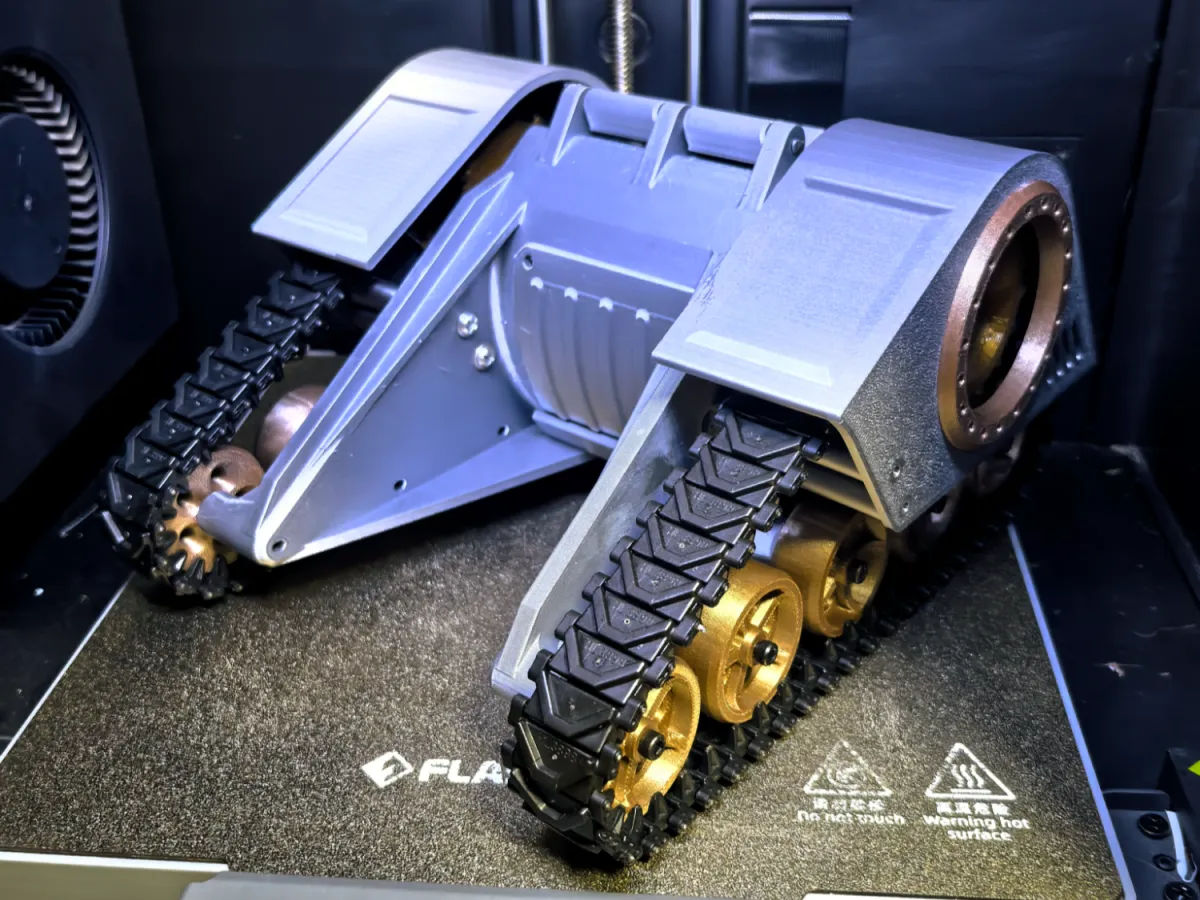

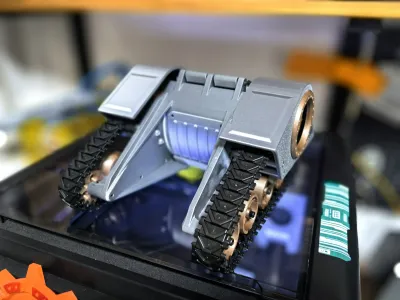

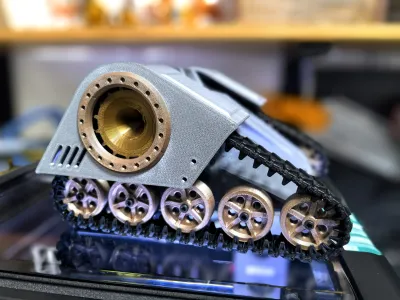

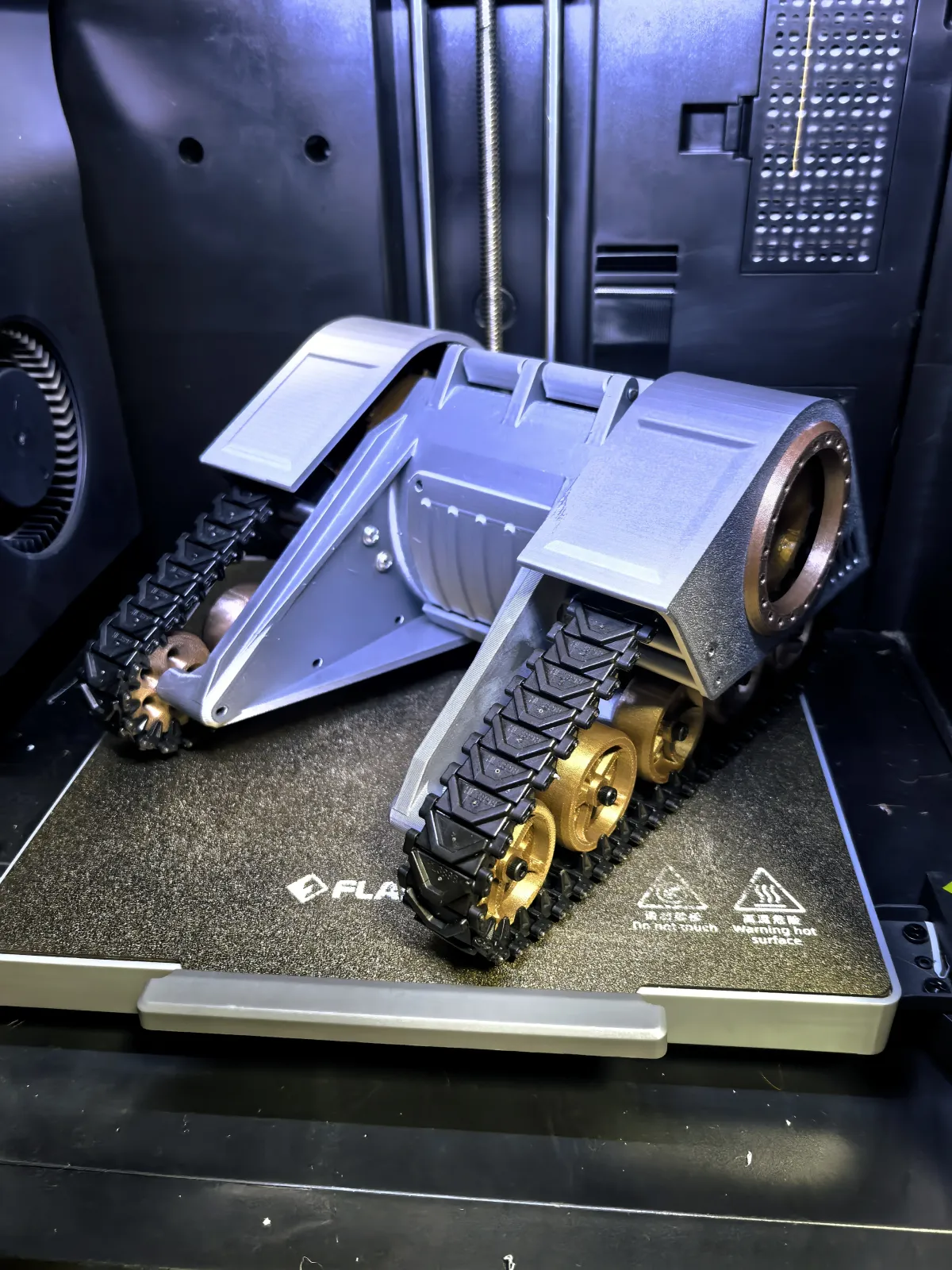

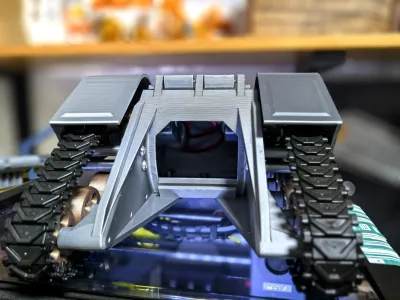

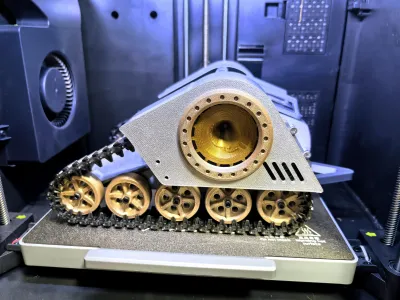

Triangular multi-load-wheel tracked module robotic bottom locomotion mechanism with 370 reduction motor power
Print Profile(1)
  • 0.2 mm layer height, 3‑layer walls, 15% infill density

    3-disc

    PETG

    Designer

0

1

5

1

Released 2026-05-08
Details
Files(1)
Makes & Comments (0)

This model requires a significant number of hardware components, so assembly will demand a certain level of hands-on skill. Consider whether to print it based on your capabilities and proceed accordingly.



You’ll need 20 M3×15 screws to secure the load-bearing wheels, as well as 10 M3×5 screws to mount the motors; washers will also be required.

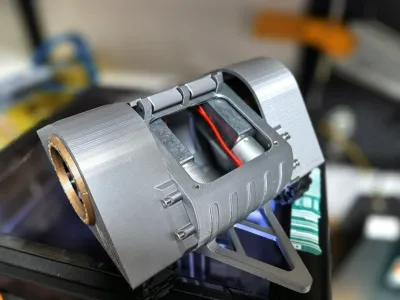

Two 370 geared motors are needed, with an L-shaped configuration and a shaft diameter of 7 mm. As for the electrical setup, simply follow the standard wiring scheme used for typical remote-controlled cars or tanks.

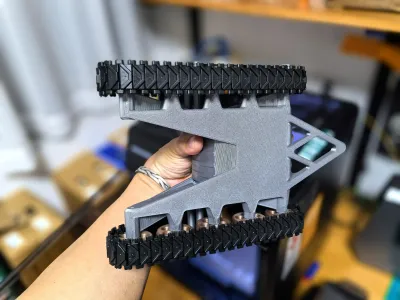

You’ll need two Sherman tank tracks; purchase them as shown in the pictures.



Bill of materials

  • Name
    Quantity
    Notes
  • 1
    370减速电机
    2
  • 2
    M3*15螺丝
    20
    固定负重轮
  • 3
    M3*5螺丝
    10
    固定电机
