Design Concept
The directional WiFi antenna amplifier is specifically designed for enthusiasts who want to enhance the range and strength of WiFi signals in a particular direction.
Applications
This model enables users to focus the WiFi signal on areas with weak coverage, thereby improving connection quality and overall performance.
Printing Recommendations
It is recommended to print using PLA or ABS filament to ensure structural durability. To maintain precision, set the infill density to at least 20% and the layer height between 0.1 and 0.2 mm. Support structures may be required for vertical components.
Assembly Instructions

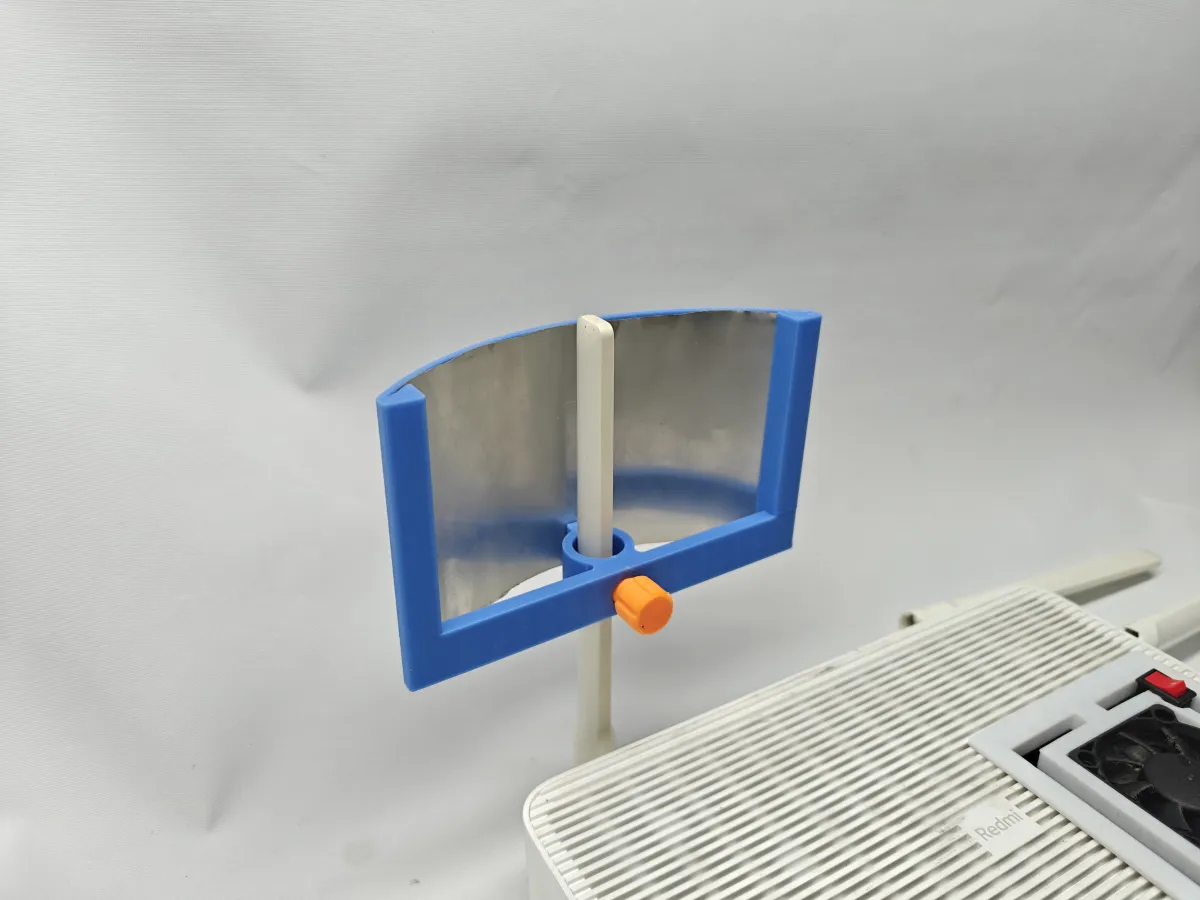

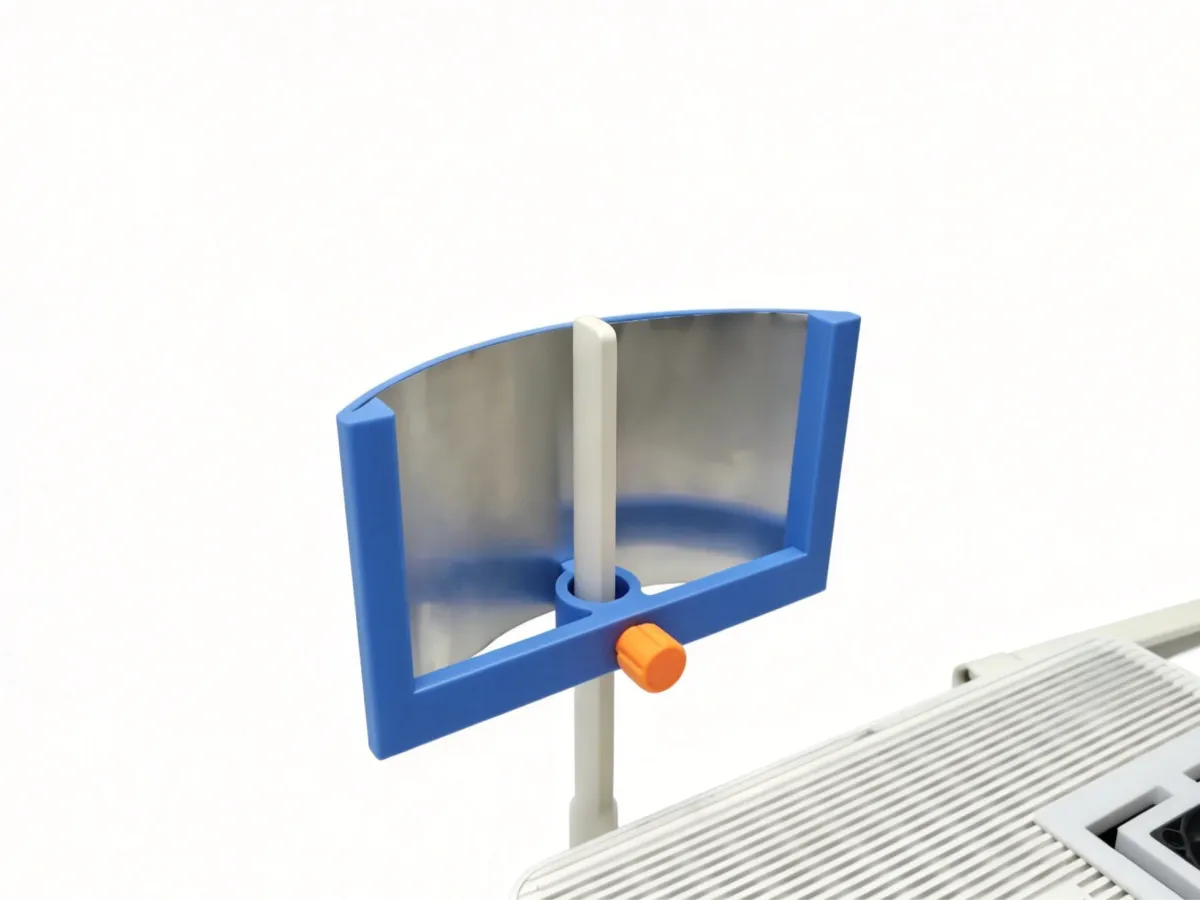

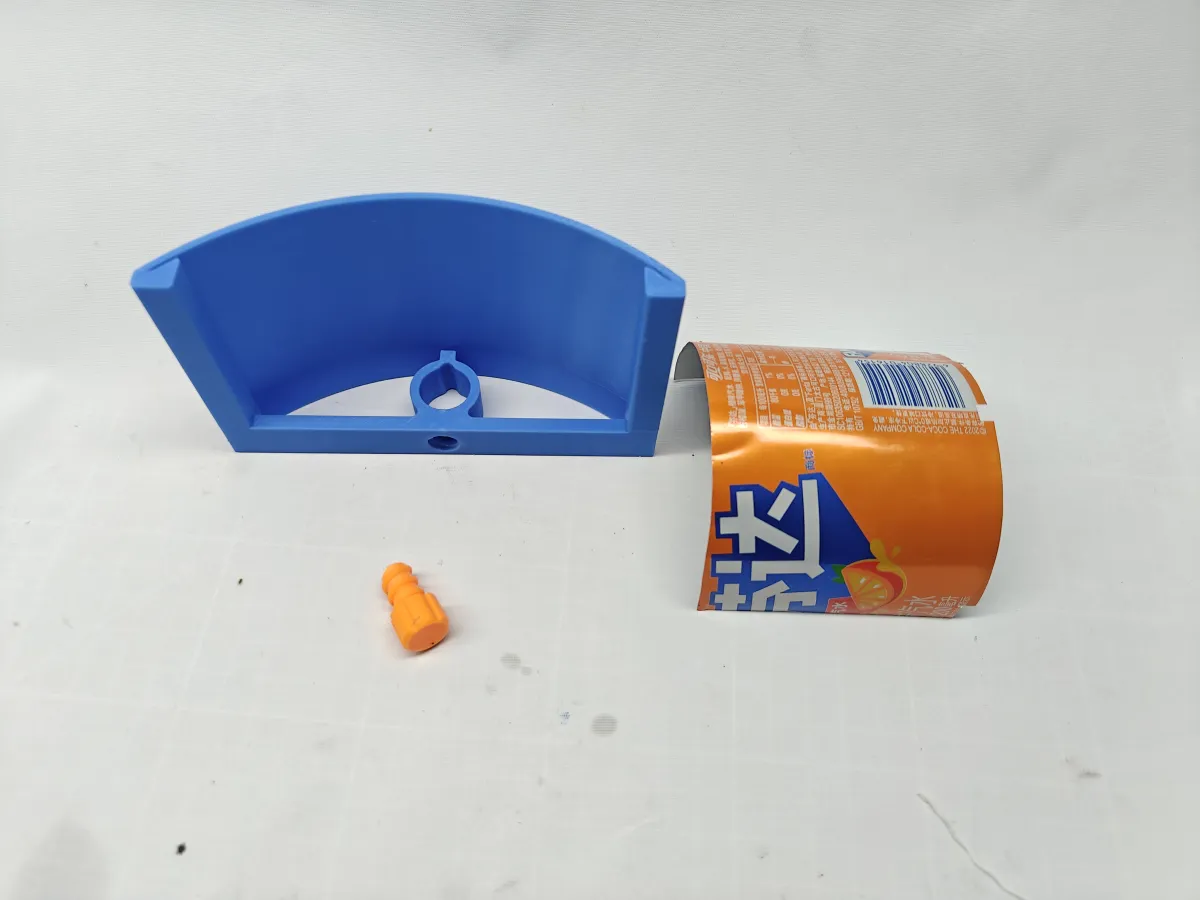

The model requires an aluminum can lid as the antenna reflector, with dimensions of 135 × 75 mm. Simply cut the lid to size, fit it into the grooves at both ends of the antenna, then slide the model over the antenna and tighten the securing screws.
Originality of the Model
The author declares that this work is their personally original model
