An open development/debugging platform for displays, designed based on the HF108 serial-port LCD and its accompanying demo development board
1. Compatible with 1.8-inch serial-port LCDs
2. Can accommodate the demo development board simultaneously
4. The enclosure is designed with an open structure to facilitate debugging; it’s equally convenient for display purposes or for making frequent parameter adjustments
5. Both the top and bottom are secured using M3 screws no longer than 4 mm

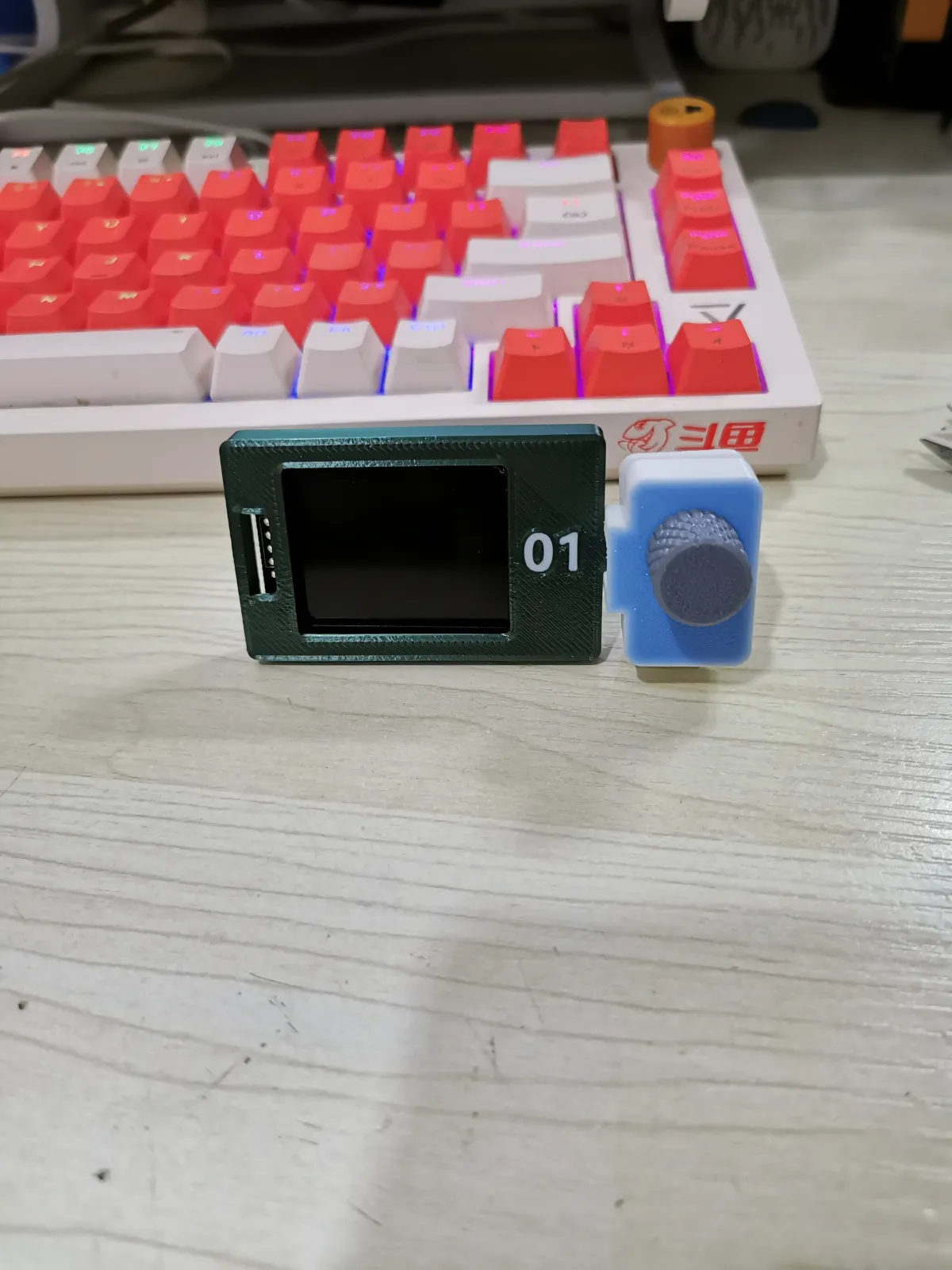

6. Enhanced external snap-fit design allows for optional attachment of EC11 rotary knobs, which can be used for debugging and other operations
The compatible development boards are already labeled in the diagram—please verify compatibility yourself
Note: Adjust the print orientation to achieve optimal material strength
