  • Exhaust ventilation

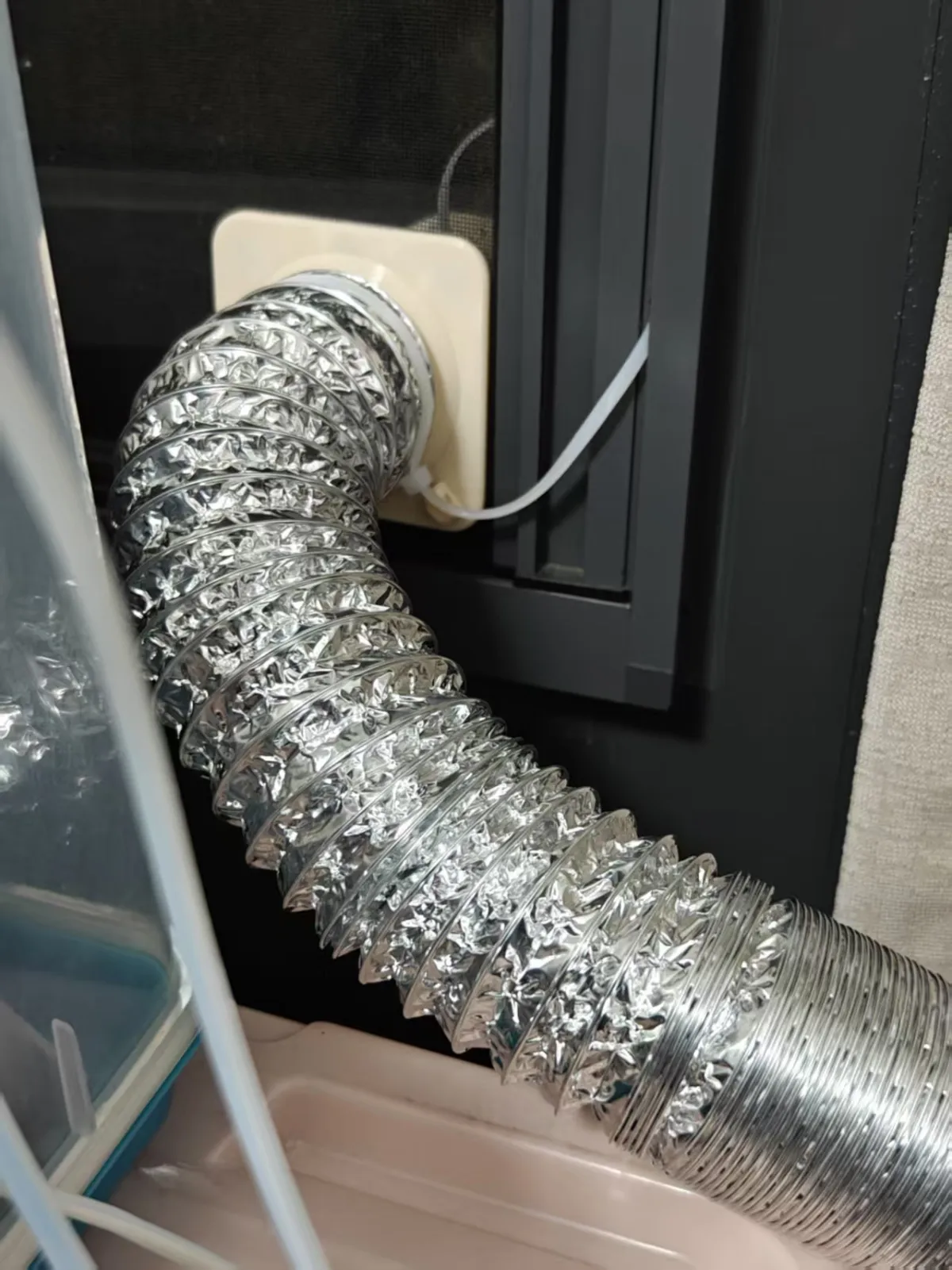

  • Exhaust connector

This kit must be used with 10×2 mm magnets, and the printed parts’ corresponding recesses should be secured with adhesive to hold the decals in place;

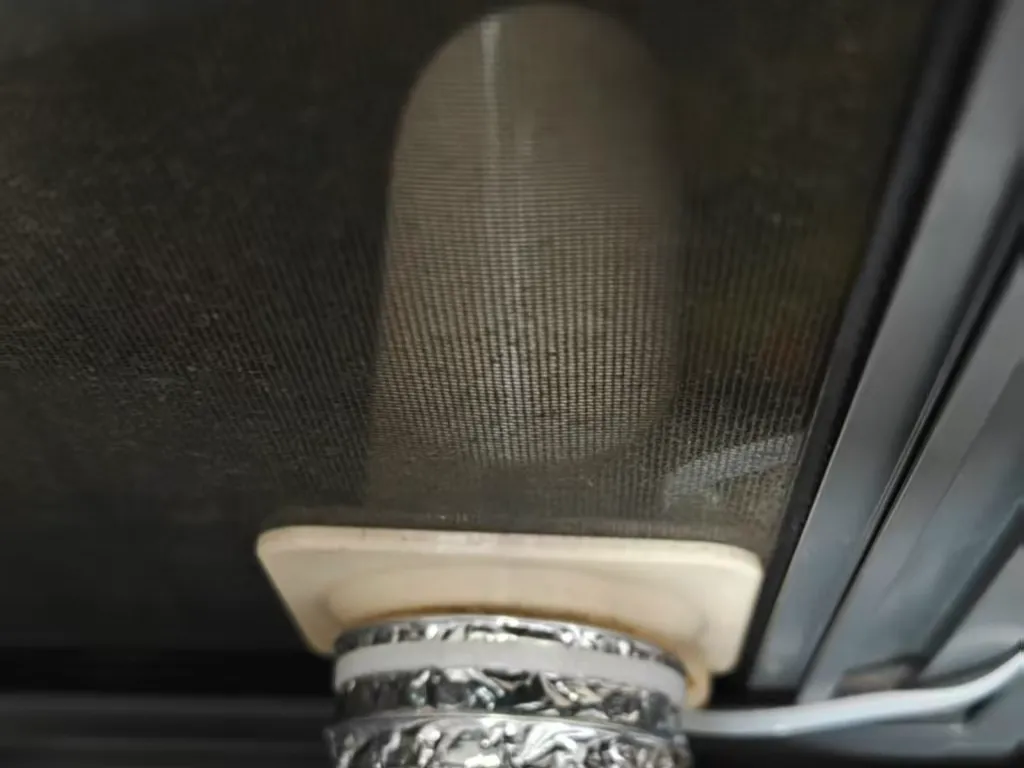

Both the inner and outer components are equipped with lanyard holes to prevent the outer component from detaching and becoming a falling object from height—always attach the lanyard!!!

!!!The outer component must adhere to my slicing settings and orientation; both the inner and outer walls can be printed smoothly and support-free.

Installation tips: First, affix eight magnets to one of the printed parts using adhesive. Then, directly snap the corresponding eight magnets onto the already fixed ones. Next, apply adhesive to the recess on the other printed part and press it firmly over the eight magnets. This method ensures that the magnets on the inner and outer components do not repel each other!

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    直径10*2mm的磁铁
    8

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator
