- 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PLA
Designer
15
3
Design Concept

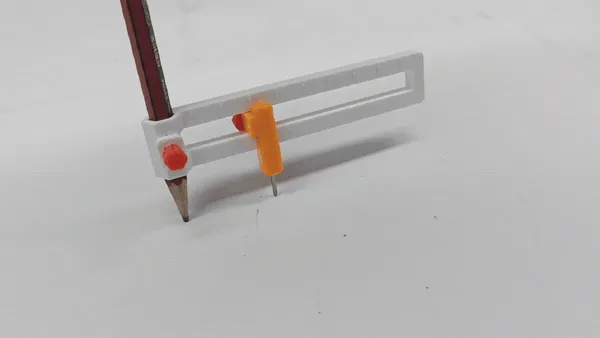

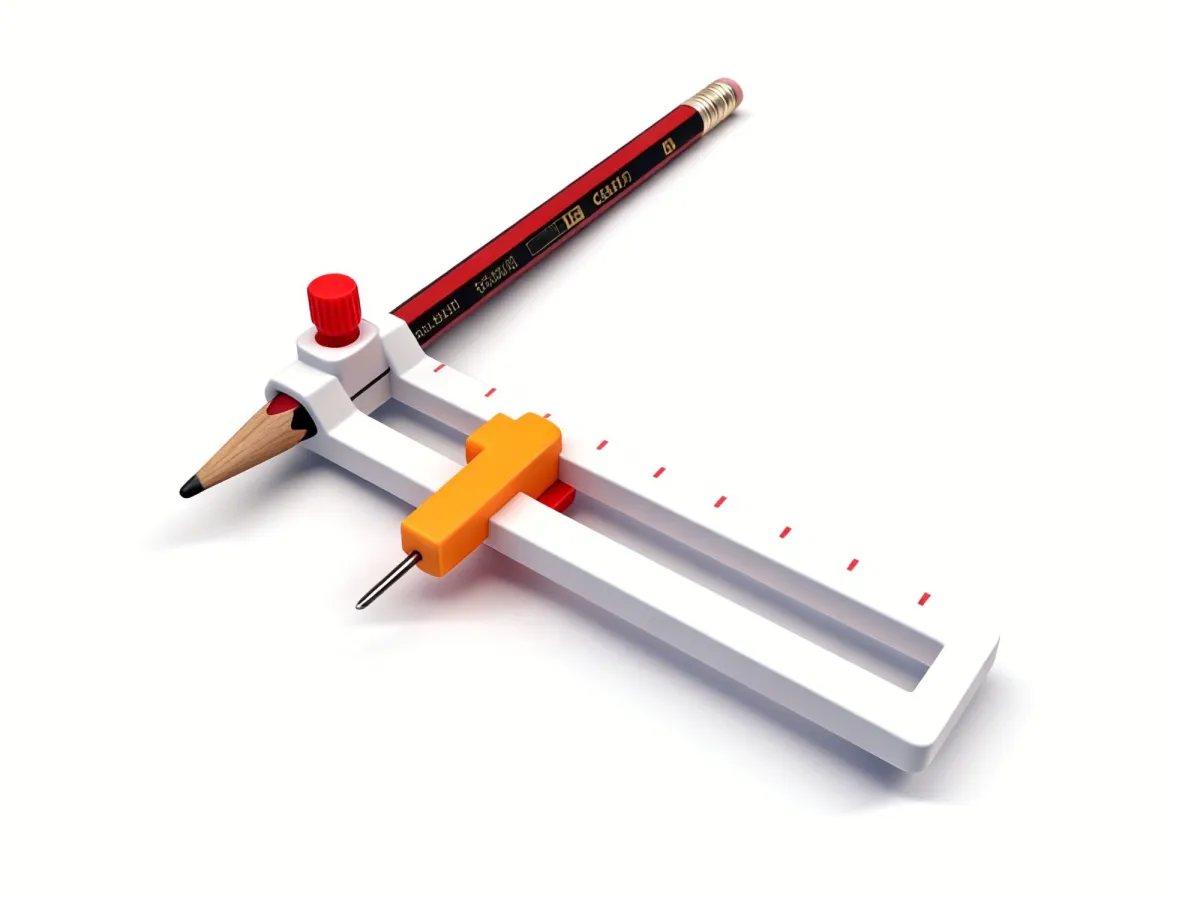

This innovative compass features a minimalist design, allowing users to draw precise circles by simply securing the pencil in place. It incorporates a stable clamping mechanism.
Applications
Ideal for students, designers, and engineers who need to create accurate circles in a variety of projects, helping to boost both learning and work efficiency.
Printing Recommendations
We recommend using PLA filament for a smooth surface finish and excellent wear resistance. During printing, set the layer height to 0.2 mm and the infill density to 20% to ensure structural integrity and high-quality results.
Assembly Instructions
After printing, securely fasten all components. The sliding block is equipped with a 1.5 mm hole for attaching the pivot pin; you can use a thin iron nail or a fine steel rod inserted into this hole as the compass’s pivot point.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
