Violent Fan
18650 Battery

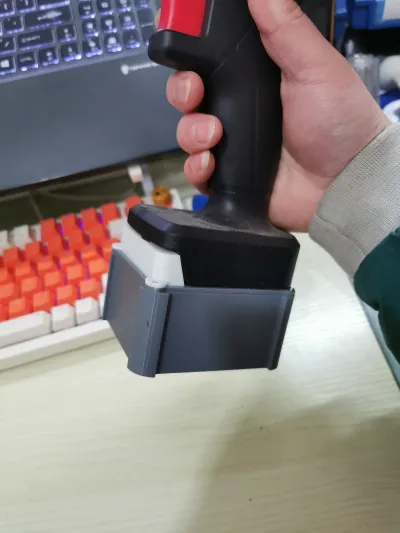

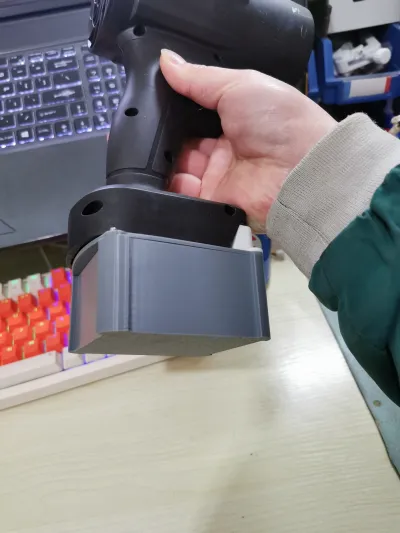

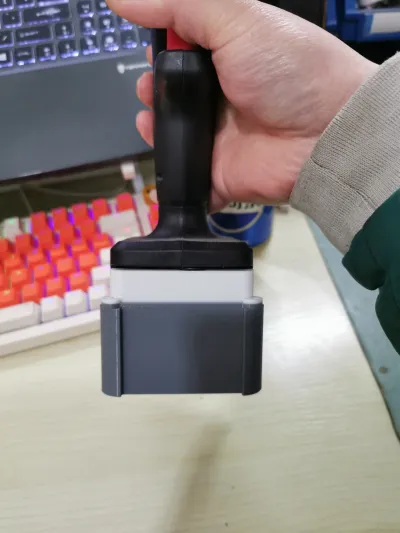

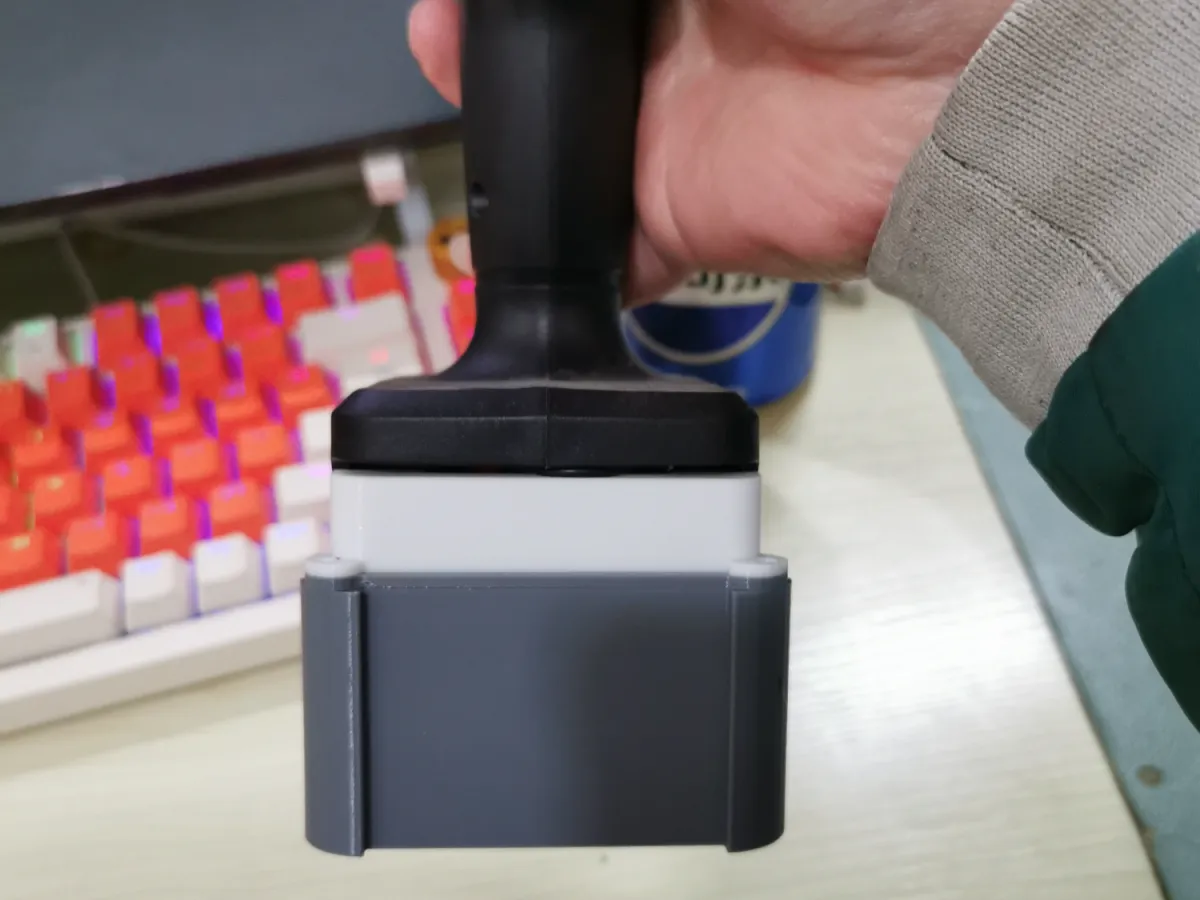

External Battery Pack for Power Tools
Lithium‑powered drill
Makita 16V
- 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PETG
Designer
16
0
Solve the issue of having no battery packs available for Makita cordless drills or high‑performance fan devices

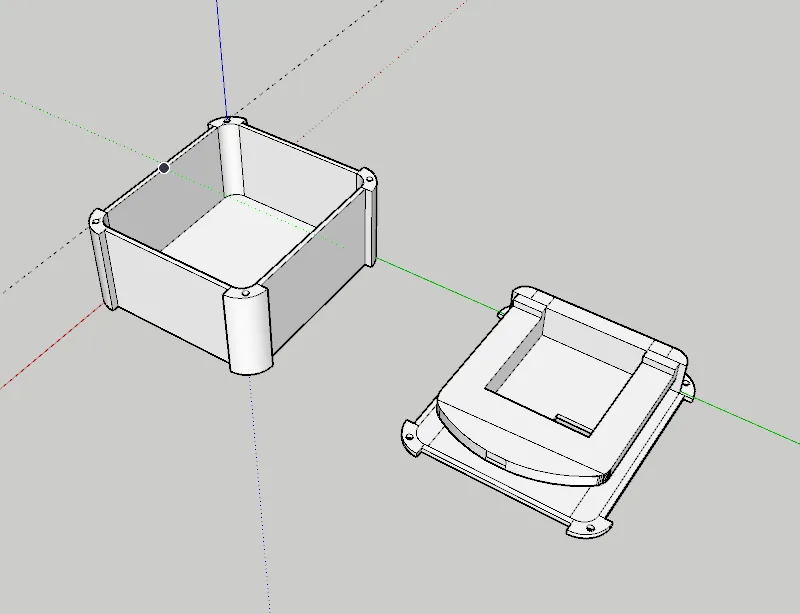

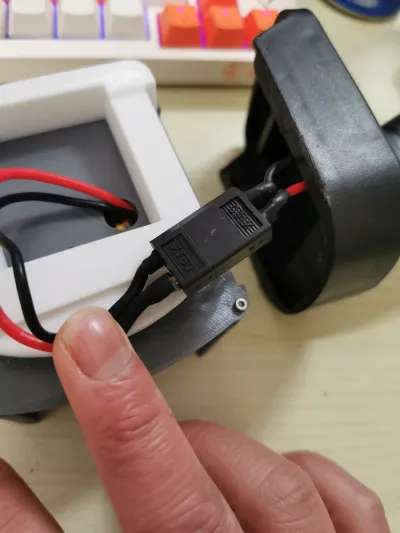

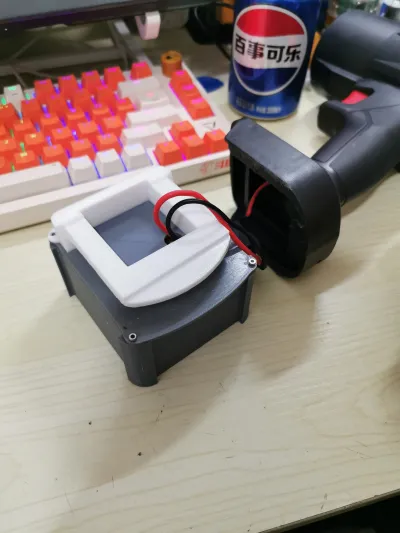

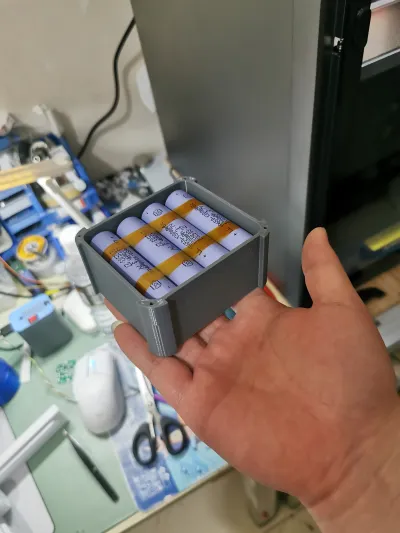

The screws use M2 connectors, and the battery compartment can accommodate up to 8 18650 cells in a series‑parallel configuration, with a recommended 4S2P setup. The protection board can be any 4‑cell series—just ensure the overall dimensions (length and width) fit within the battery compartment. Use high‑current connectors like XT60 for over‑current protection.
When you only own a single Makita tool, purchasing a dedicated battery pack can be quite wasteful. Instead, you can repurpose your existing 18650 cells, lithium‑ion protection boards, and XT60 connectors to build one or more custom battery packs tailored for Makita devices.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
Models(1)
- 牧田快插电池包外壳.3mfDesigner
82.10 KB
